Connect the IP Audio Conference Phone 2033 components
24
Connect the IP Audio Conference
Phone 2033 components
Before you begin
Steps
1. Connect one end of the CAT5 Ethernet cable to the network interface
located on the back of the Power Interface Module (PIM) (see
Figure 5 ). Plug the other end of the CAT5 Ethernet cable into the IP
network interface.

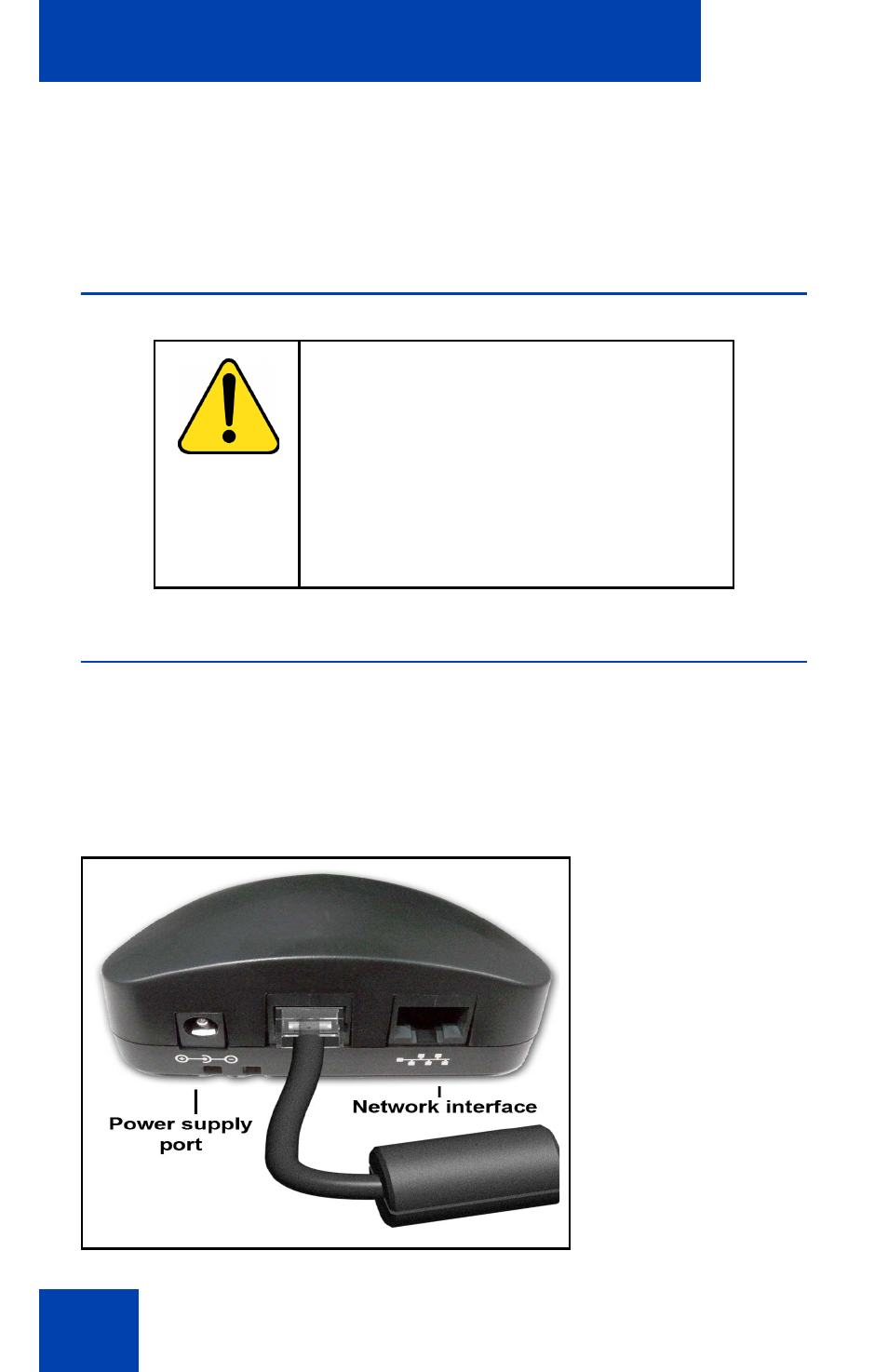

Figure 5: Power Interface Module (PIM)
CAUTION
Damage to equipment
Do not plug the IP Audio Conference
Phone 2033 into a regular telephone jack.
Doing so results in severe damage to the
IP phone. Consult your system
administrator to ensure that you plug your
set into a 10/100BaseT network interface.
