A-8 / ENGLISH
A-8 - FORM NO. 56041978 - BR1100S / BR1300S
INSTALL THE BRUSHES (DISC SYSTEM)
CAUTION!
Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.
1
Make sure the Scrub Deck is in the RAISED position. Make sure the Key Switch (A) is off (O).
2

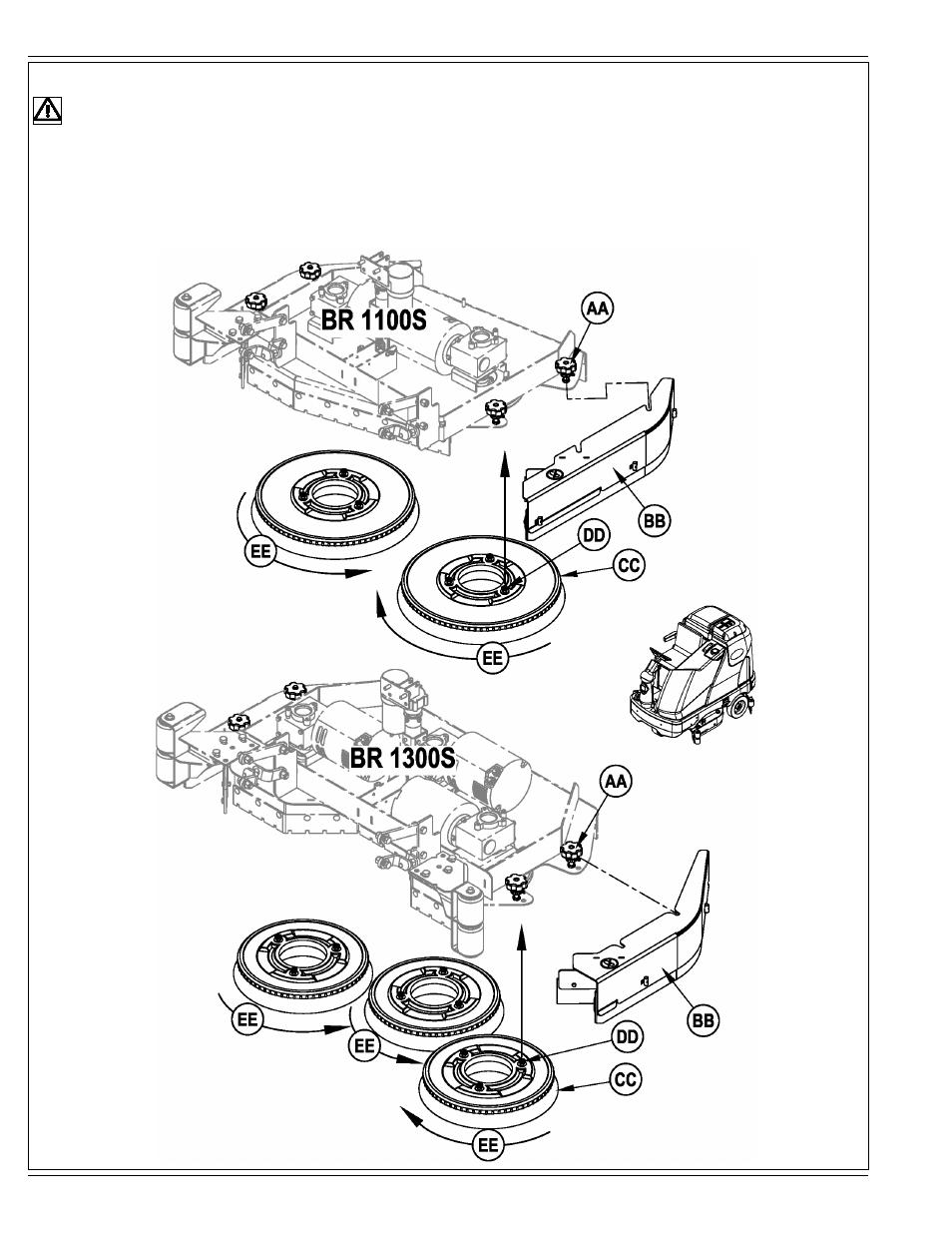

See Figure 2. Remove both side skirt assemblies. NOTE: The skirts are held in place by two large Knobs (AA). Loosen these knobs and slide the Skirt
Assemblies (BB) off of the Scrub Deck.
3
To mount the Brushes (CC) (or pad holders) align the Lugs (DD) on the brush with the holes on the mounting plate and turn to lock in place (turn the outside
edge of brush towards the front of machine as shown (EE)).
FIGURE
2
