English / a-11, Figure – Nilfisk-Advance America ECOFLEX BR1100S User Manual
Page 11
ENGLISH / A-11
FORM NO. 56041978 - BR1100S / BR1300S - A-11
SQUEEGEE INSTALLATION
1

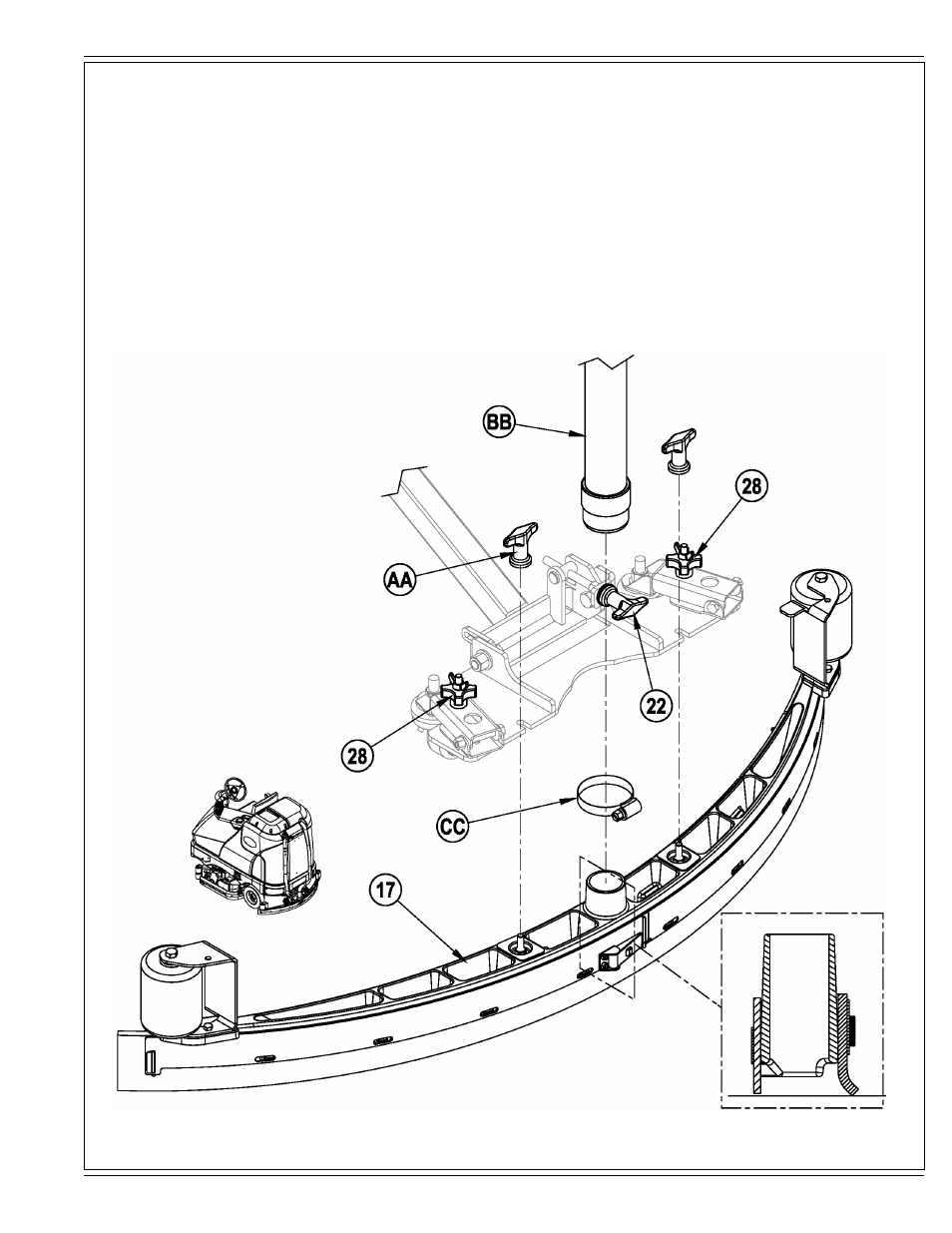

See Figure 5. Slide the Squeegee Assembly (17) onto the squeegee mount bracket and tighten the Squeegee Mount Thumb Nuts (AA).
2
Connect the Recovery Hose (BB) to the squeegee inlet using Hose Clamp (CC).
3
Lower the squeegee, move the machine ahead slightly and adjust the squeegee tilt and height using the Squeegee Tilt Adjust Knob (22) and Squeegee
Height Adjust Knobs (28) so that the rear squeegee blade touches the fl oor evenly across its entire width and is bent over slightly as shown in the squeegee
cross section.
FIGURE
5
