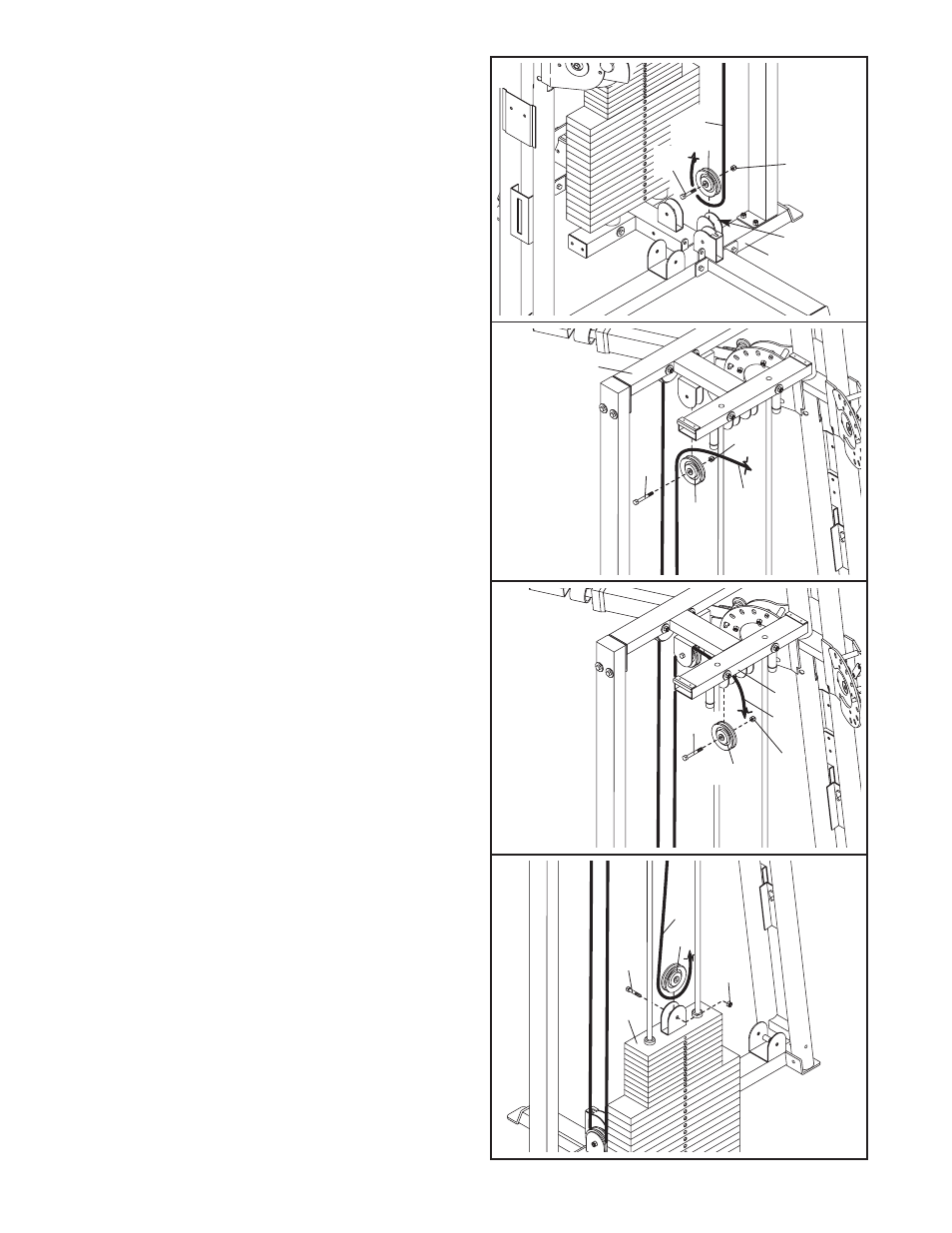

11. Note: The following three steps show the sys-
tem from the reverse side for clarity.
Wrap the High Cable (63) over a 3 1/2” Pulley
(56). Attach the Pulley to the indicated bracket on
the Top Frame (5) with an M10 x 46mm Button
Head Bolt (76) and an M10 Nylon Locknut (101).
12. Wrap the High Cable (63) over a 3 1/2” Pulley
(56). Attach the Pulley to the indicated bracket on
the Top Frame (5) with an M10 x 46mm Button
Head Bolt (76) and an M10 Nylon Locknut (101).
10. Wrap the High Cable (63) under a 3 1/2” Pulley
(56). Attach the Pulley to the indicated bracket on
the Base (1) with an M10 x 46mm Button Head
Bolt (76) and an M10 Nylon Locknut (101).
10
11
12
5
76
101
56
56
101
63
63
76
5
101
Bracket
76
56
63
13. Wrap the High Cable (63) under a 3 1/2” Pulley
(56), in the direction shown. Attach the Pulley to
the bracket on the Top Weight (27) with an M10 x
46mm Button Head Bolt (76) and an M10 Nylon
Locknut (101).
13
63
56
101
76
27
