NAD T514 - Manual (Page 10)

10
Installation and Setup
ENGLISH
FRANÇAIS
DEUTSCH
NEDERLANDS
ESP
AÑOL
IT
ALIANO
POR
TUGUÊS
SVENSKA
SETTING UP THE PLAYER
The picture and sound of a nearby TV, VCR, or radio may be distorted
during playback. If this occurs, position the player away from the TV,
VCR, or radio, or turn off the unit after removing the disc.
DVD PLAYER CONNECTIONS
Depending on your TV and other equipment there are various ways
you can connect the player. Please refer to the manuals of your TV,
stereo system or other devices as necessary for additional connection
information.
CAUTION
You must set the TV Output Select option to use COMPONENT VIDEO
OUT/PROGRESSIVE SCAN and SCART jacks.
(See “TV Output Select” on page 14.)
Video and Audio Connections to Your TV
Make sure the DVD player is connected directly to the TV and not to a
VCR, otherwise the DVD image could be distorted by the copy
protection system.
Video
Connect the VIDEO OUT jack on the DVD player to the video in jack on
the TV using the video cable (V).
SCART connection
Connect the TO TV SCART jack on the DVD Player to the
corresponding in jacks on the TV using the SCART cable (T).
Component Video (Color Stream®)
Connect the COMPONENT VIDEO OUT/PROGRESSIVE SCAN jacks on
the DVD Player to the corresponding in jacks on the TV using an Y Pb
Pr cable (C).
PROGRESSIVE SCAN (COLORSTREAM® PRO):
• If your television is a high-definition or “digital ready” television, you
may take advantage of the DVD Player’s progressive scan output for
the highest video resolution possible.
• If your TV does not accept the Progressive Scan format, the picture
will appear scrambled if you try Progressive Scan on the DVD Player.
NOTES
• Set the Progressive to “On” on the setup menu for progressive
signal, see page 14.
• Set the progressive to “Off” by removing any disc from the unit and
close the disc tray. see that “no disc” is displayed on the display
window. Then press STOP and hold it for five seconds before
releasing it.
• Progressive scan does not work with the analogue video connections
(yellow VIDEO OUT jack).
Audio Connection to Your TV:
Connect the left and right AUDIO OUT jacks of the DVD Player to the
audio left and right IN jacks on the TV (A) using the audio cables. Do
not connect the DVD Player’s AUDIO OUT jack to the Phono In jack
(record deck) of your audio system.

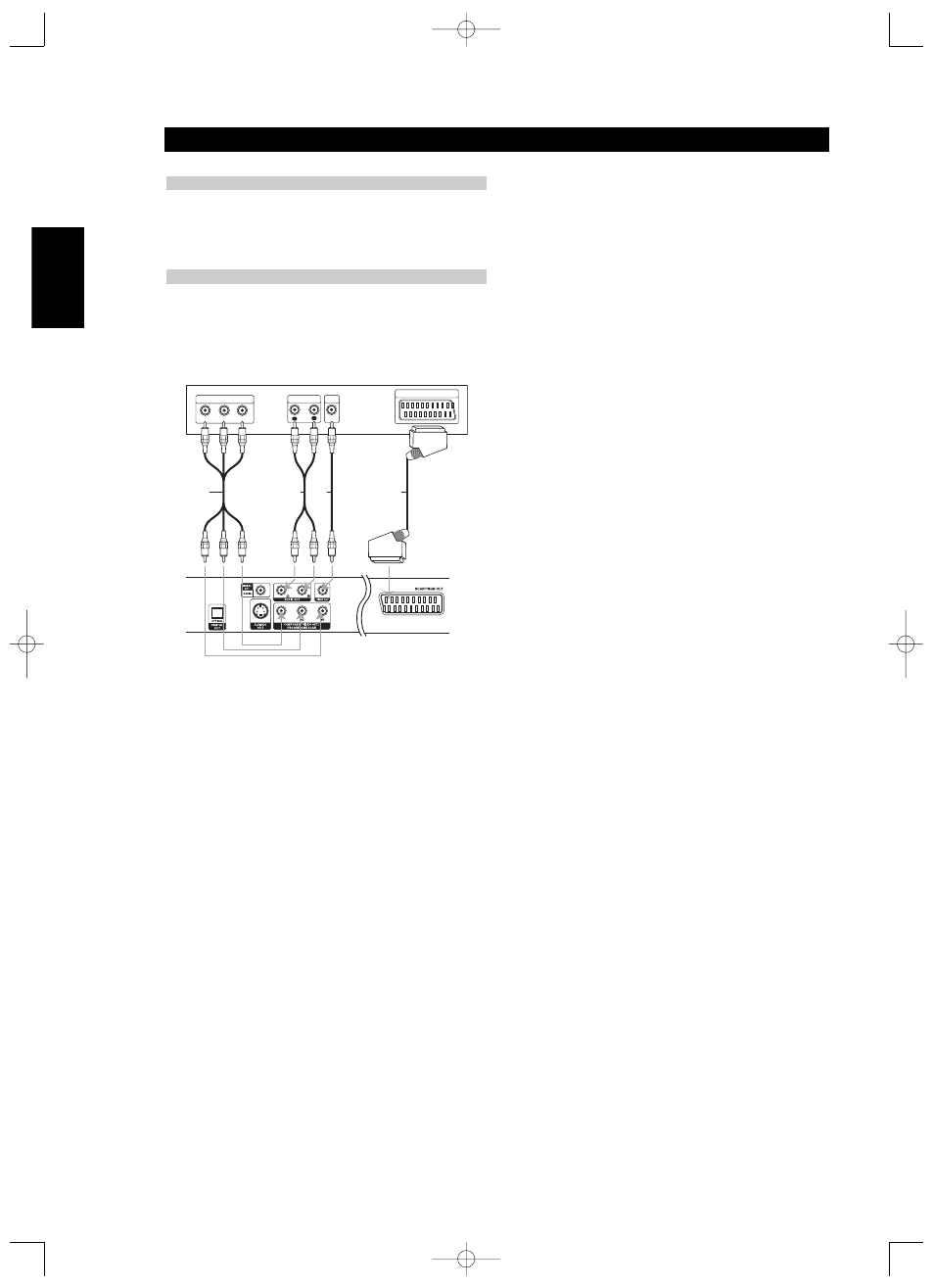

CONNECTIONS
R L
AUDIO INPUT VIDEO
INPUT
Y Pb Pr
COMPONENT VIDEO /
PROGRESSIVE SCAN INPUT
Rear of TV
Rear of DVD player
A V C
SCART INPUT
T
