I/O Subsystem
2-11
y Partition universal serial bus (USB) ports — Two USB 2.0 ports on the front and two
USB 2.0 ports on the back of the cell
y Partition serial port
y Partition LAN ports — Two 1-Gigabit Ethernet (LAN) ports
In addition, the cell includes the following ports on the management board:
y Maintenance LAN port (10/100 Ethernet port)
y USB management port
y Management serial port

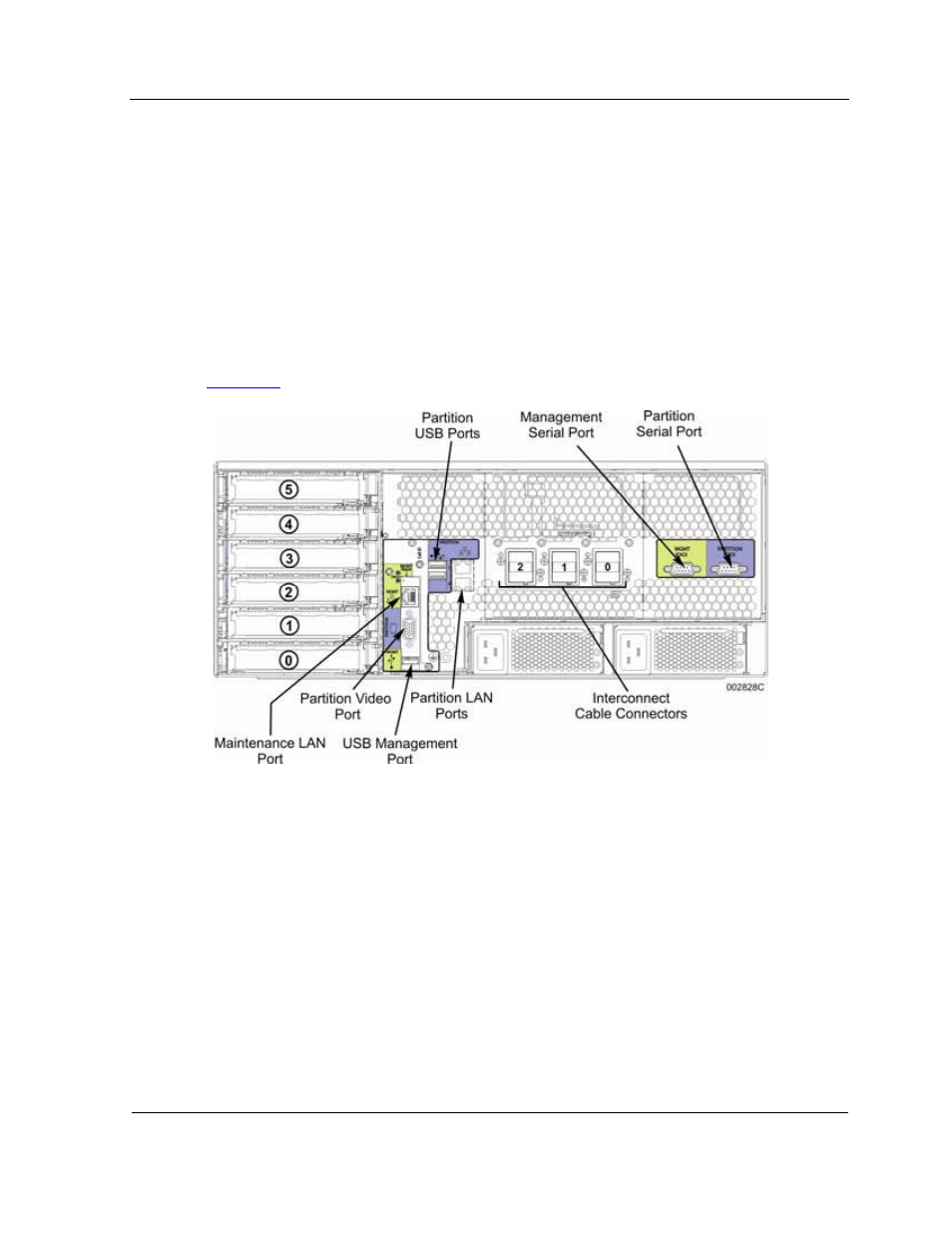

Figure 2-9 shows the location of the ports on the back of the cell.
Figure 2-9 Ports on Back of the Cell
Inbuilt RAID Controller
The inbuilt RAID controller supports 3 Gbps SAS drives and is compliant with x4 lane
PCI Express 1.0a. It supports the following disk configuration options:
y RAID 0 (striping)
y RAID 1 (mirroring)
y RAID 5 (disk striping with distributed parity)
y RAID 6 (disk striping with dual distributed parity)
y RAID 10 (striped data across mirrored spans)
y RAID 50 (distributed parity with disk striping)
