9
W415-0297 / D / 04.03.03
PHAZER TM logs and glowing embers exclusive to Napoleon
Fireplaces, provide a unique and realistic glowing effect
that is different in every installation. Take the time to care-
fully position the glowing embers for a maximum glowing
effect.
Log colours
may vary. During the initial use of the fire-
place, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.

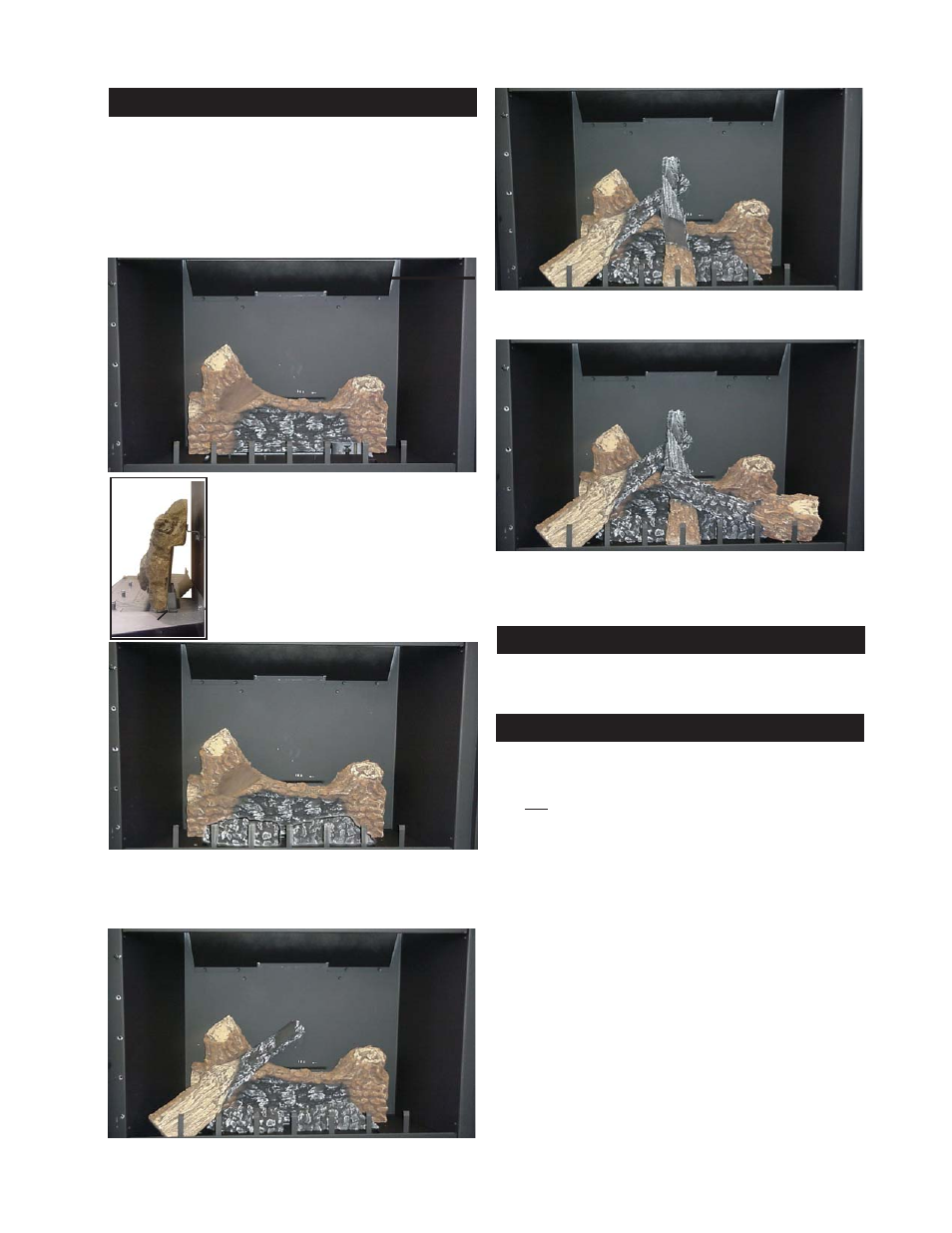

1. Place the back log (#1) onto the log
support tray and in front of the tabs. The
tabs maintain an air space between the
log and firebox back to facilitate combus-
tion air flow. Ensure that the back of the
log rests against the brackets on the back
wall of the firebox.
2. Move the two small logs (#2 & #3) into position, lining
up the studs located on the burner with the holes on the
bottom of the logs. Ensure that the small logs sit flat on the
burner.
3. Place the bottom of the left crossover log (#4) onto the
stud on the left side of the log support.
The top of the log should rest in the pocket on the back log.
LOG PLACEMENT
Randomly place the charcoal embers along the front and
sides of the log support tray in a realistic manner.
Fine
dust found in the bottom of the bag should not be used.
Tear the embers into pieces and place along the front row
of ports covering all of the burner area in front of the small
logs (#2 & #3). Care should be taken to shred the embers
into thin, small irregular pieces as only the exposed edges
of the fibre hairs will glow.
The ember material will only
glow when exposed to direct flame; however, care
should be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern,
carbon deposits and delayed ignition. PHAZER
TM logs glow
when exposed to direct flame. Use only certified "glowing
embers" and PHAZER
TM logs available from your Napo-
leon dealer.
CHARCOAL EMBERS
GLOWING EMBERS
#4
4. Position the notch located on the end of the center log
(#5) against the middle grate post with the other end of the
log resting in the pocket of the left crossover log.
5. Place the bottom of the right crossover log (#6) against
the right firebox side, so that it is cradled between the right
outermost grate post and the right tab. The top of the log
should rest in the pocket provided on the center log (#5).
#5
#6
#1
FIGURE 15a-f
#2 #3
TAB
SIDEVIEW
