13
W415-0297 / D / 04.03.03

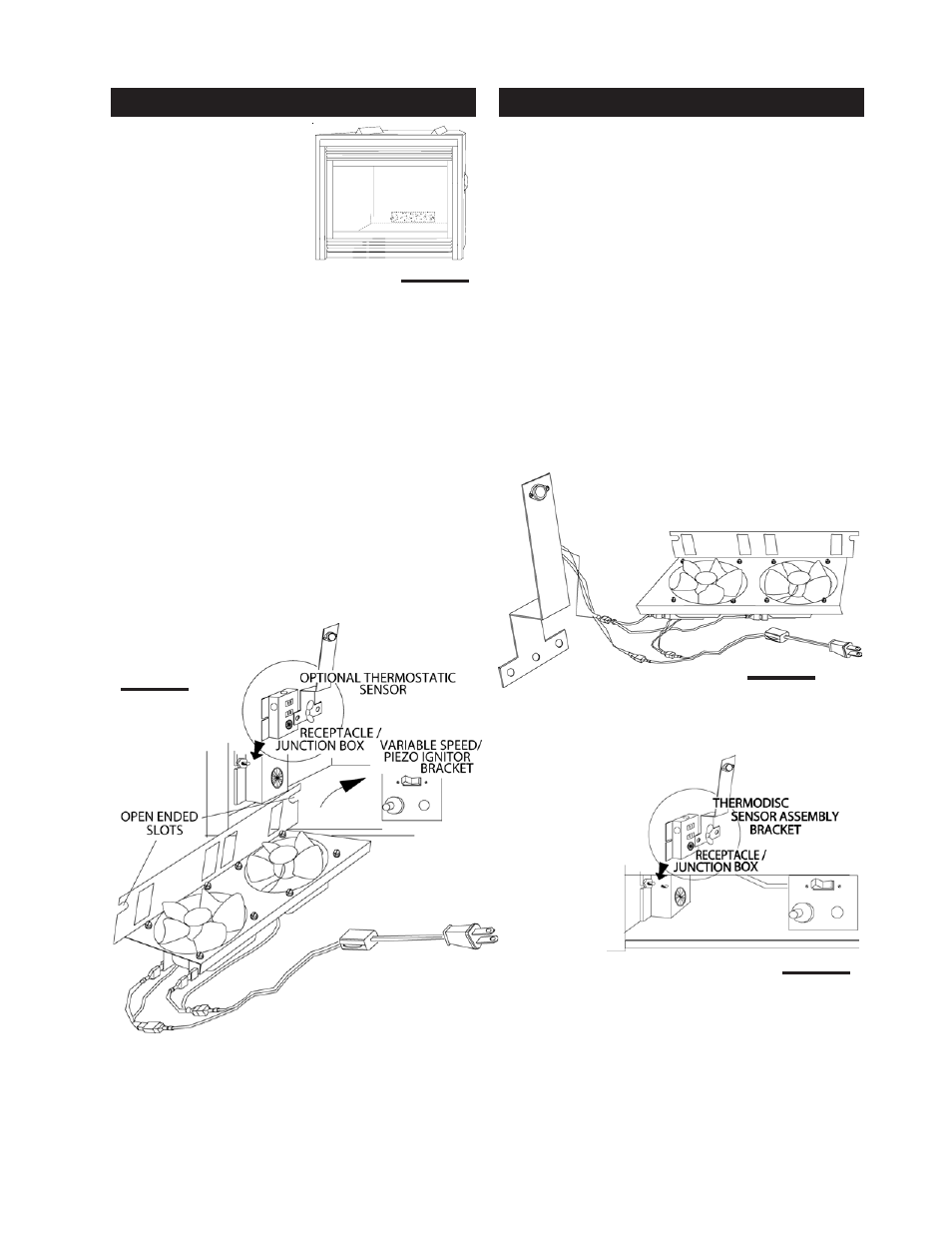

FIGURE 27
This optional kit is meant to be used only in conjunction
with the GD65 Fan Kit, which may be ordered from your
Wolf Steel /Napoleon dealer.
With the thermostatic sensor option, the fan, when turned
on, becomes thermally activated, and will automatically
run approximately 10 minutes after the fireplace has been
lit and for approximately 30-45 minutes after the fireplace
has been turned off.
Use of the fan increases the output of heat.
If optional thermostatic sensor kit is to be installed, re-
move thermodisc from the bracket supplied in the kit and
disgard the bracket. Install thermodisc in the bracket sup-
plied with the fireplace. It is recommended to attach the
wires to the disc and install the bracket before installing
the blower. Attach the black and white wires to the disc,
then secure the bracket to the stud at the bottom left on the
unit using the lock washer and wing nut. Ensure that the
thermodisc touches the firebox wall.
Unplug the power cord from the receptacle. Connect all
wires as shown.
Plug the power cord back into the receptacle.
When installed, ensure that any excess wire is contained,
preventing it from making contact with moving or hot ob-
jects.
ELECTRICAL INSTALLA-
TION TO BE DONE BY A
QUALIFIED INSTALLER and
must be connected and
grounded in accordance with
local codes. In the absence
of local codes, use the cur-
rent ANSI/NFPA 70
NATIONAL
ELECTRICAL CODE .
If the fireplace was not previously equipped with a
blower,
route a grounded 2-wire, 60hz power cable to the
junction box. At this point, it must be strain relieved and
insulated.
The wire harness provided in this kit is a universal har-
ness. When installed, ensure that any excess wire is con-
tained, preventing it from making contact with moving or
hot objects.
Position the vibration reducing pad into the clip and onto
the threaded stud at the other end, piercing a hole into the
pad. The fan assembly must be able to be positioned
entirely onto the pad.
Slide the fan assembly past the controls and into the clip.
Secure using the lock washer and nut provided. Plug the
harness cord into the receptacle.
FIGURE 24
FIGURE 25
FIGURE 26
GD65 FAN INSTALLATION THERMOSTATIC SENSOR CONTROL
