The curtain mesh must be kept fully closed during opera-
tion to help prevent accidental burns from occurring.
The heater must not be used when the hood is
removed.

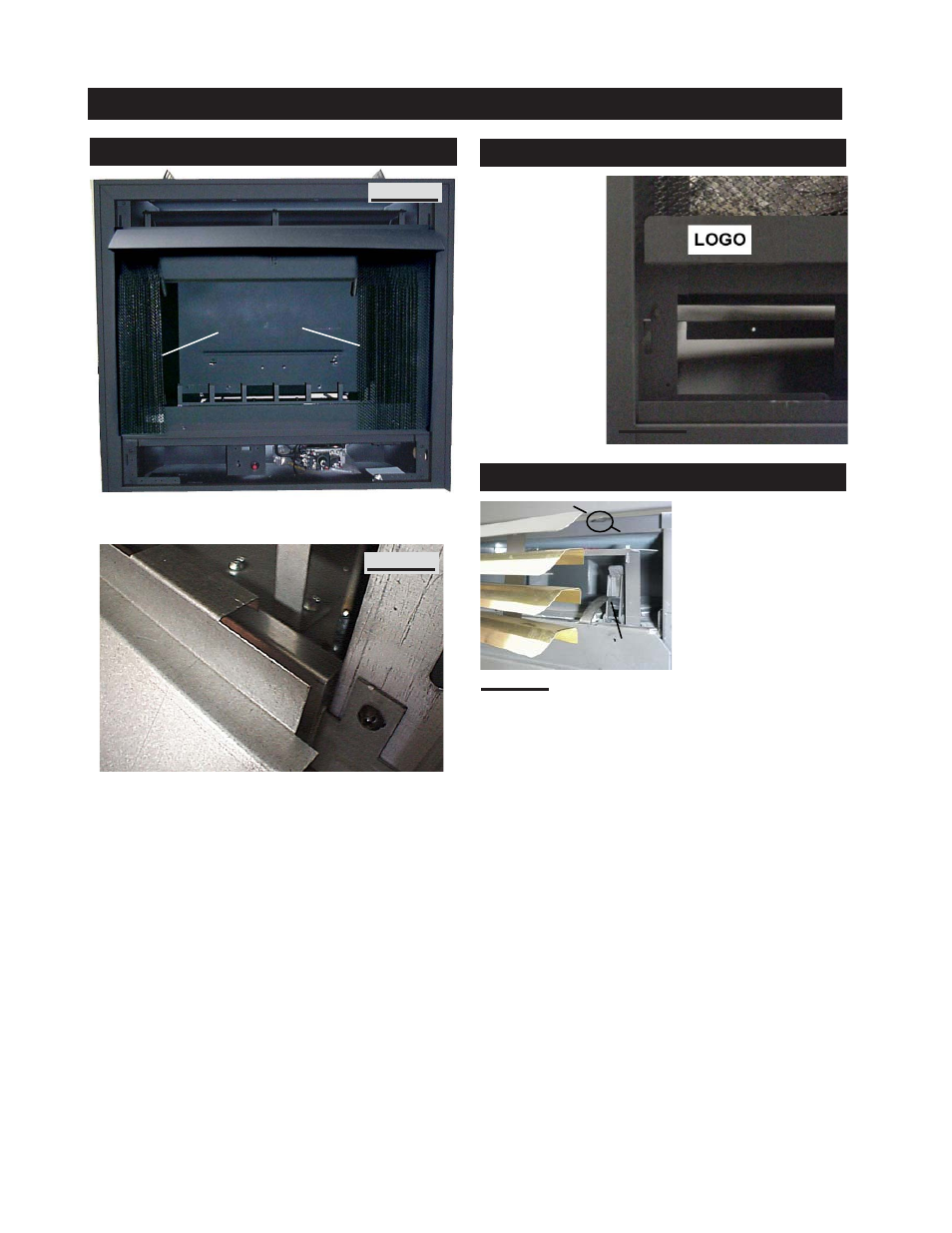

Hook the hood over the lip of the curtain sup-
port plate.
HOOD
CURTAIN
MESH
FIGURE 11
Remove the
backing of the
logo supplied
and place on the
screen cover, as
indicated.
FINISHING
LOGO PLACEMENT HOOD
FIGURE 12
CATALYTIC DOOR OPEN-
ING AND CLOSING (
IF AP -
PLICABLE ): The upper lou-
vres must be removed to
allow the catalytic door to
be opened or closed. To
access the lower door
latch, open the valve con-
trol door. Release the top
and bottom door latches,
located at the right side of
the door.
CATALYTIC DOOR OPENING & CLOSING
DOOR LATCH
HOOD
UPPER LOUVRE
FLANGE
CLIP
FIGURE 13
FIGURE 14
