10
W415-0297 / D / 04.03.03
UPPER LOUVRES: In-
sert the upper louvres
into the slots on both
brackets. Press the top
flange of the hood into
the four clips located
along the top of the unit
as shown.
LOWER LOUVRES: At-
tach each hinge to the fire-
box with 2 screws.
HINGE SCREEN: Position the hinge screen into place
and with the control door open, secure to the firebox using
three screws.
FIGURE17
A
C
B
HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening. Se-
cure using a screw through the
centre slot.
A
CLIPS
C E N T R E
S L O T
FLANGE
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
S L O T
TA B
B
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
C
HINGE
CLIP
S L O T

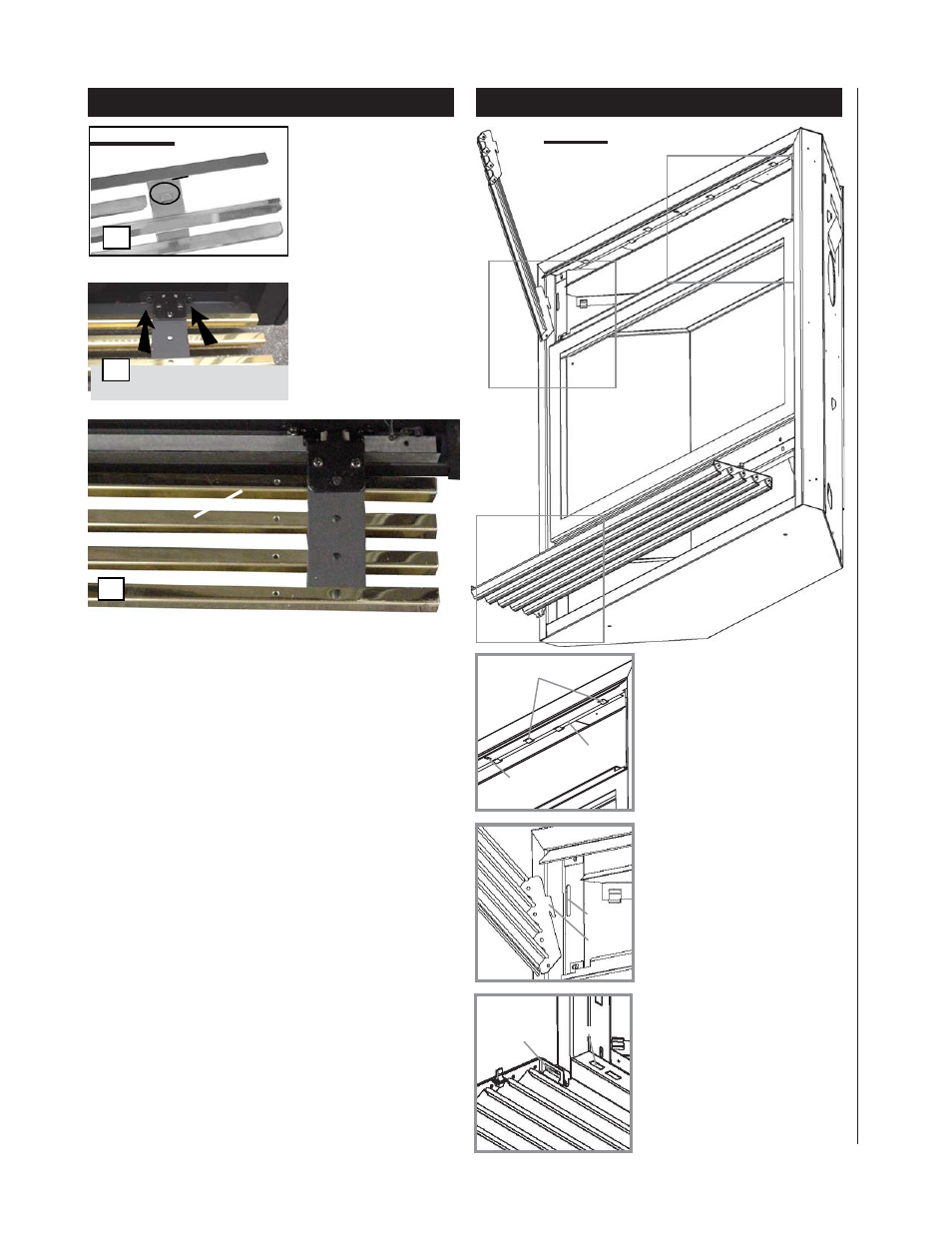

L36 LOUVRE INSTALLATION
HINGE SCREEN
C
LOUVRE
HOOD
SLOT
BRACKET
A
GVFL LOUVRE INSTALLATION
LOWER LOUVRES
(VALVE CONTROL DOOR)
B
FIGURE 16a-c
