Configuration and Installation Section Two
GPIB-COM User Manual 2-6 © National Instruments Corporation

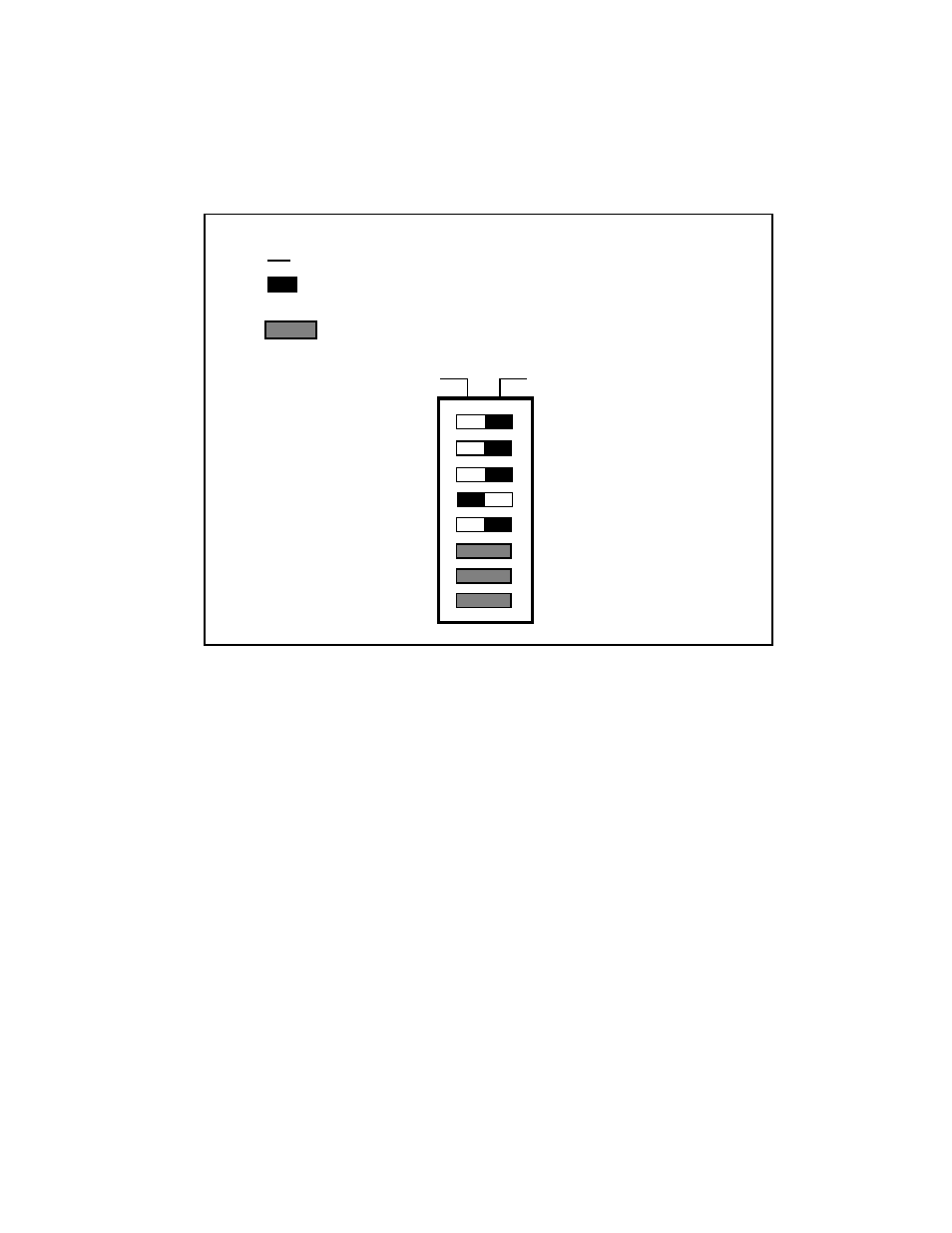

Figure 2-5 shows the switch configuration needed when using a device with listen address 10 hex.
The listen address varies with each device so check the listen address of your device and set these
five bits accordingly.
Key
= side you must press down for Listen Address 10;
Off = 1; On = 0
This side down for logic 1 This side down for logic 0
U13
= used for setting REN* ON, IFC* ON, and SRQ* ON
1
2
4
8
16
REN
IFC
SRQ
1
2
3
45
67
8
OFF
Figure 2-5. Listen Address Setting for Listen Address 10 Hex
