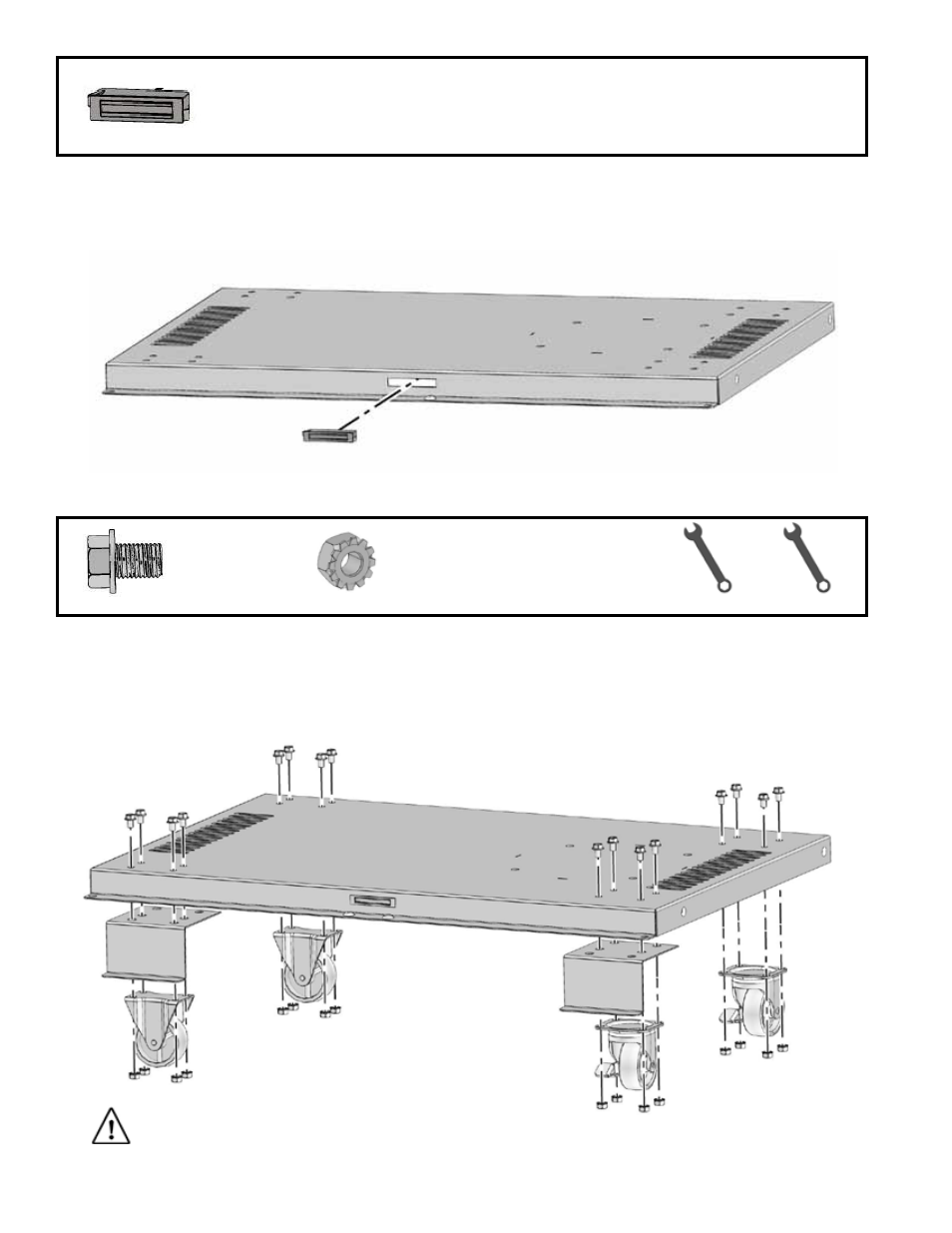

2. Caster/Bracket Installation
Attach (4) casters, using (4) ¼ -20 x 3/8” screws and (4) ¼ -20 lock nuts for each caster. Attach brackets under front casters
as illustrated. Tighten securely.
1. Magnet Installation
Snap magnet into slot in front of bottom shelf.
1 X N430-0002
16 X N570-0073 (1/4-20 X 3/8”) 3/8”(10mm) 7/16”(11mm) 16 X N450-0027 (1/4-20)
non relvolving caster- left side
3. Propane Tank Ring Installation
Insert propane tank ring into slots in bottom of shelf as shown. Fold tabs over to secure in place.
4. Left and Right Cart Panel Installation
Install end cart panels ensuring slots in panel are to the top, rest panel on bottom shelf and line up holes. Fasten using
(4) #14 x 1/2” screws.
