Connectors

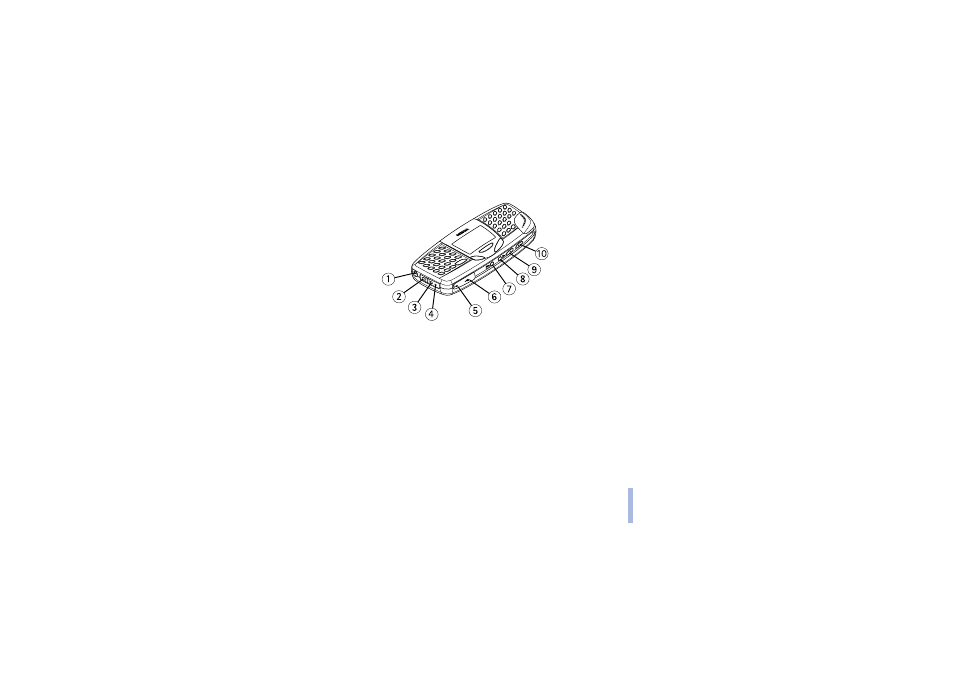

Your phone can be connected to different compatible devices, and it has several connectors and
special keys on its sides:
1. Connector for the black HDD-2 headset cable (headphones)
2. Connector for the charger cable
3. Connector for the grey marked HDD-2 headset cable (microphone)
4. Internal microphone
5. Connector for the ADE-1 audio line in cable
6. Connector for the DKE-2 connection cable for PC connection
7. Radio key
8. Music player key
9. Volume down key
10. Volume up key
