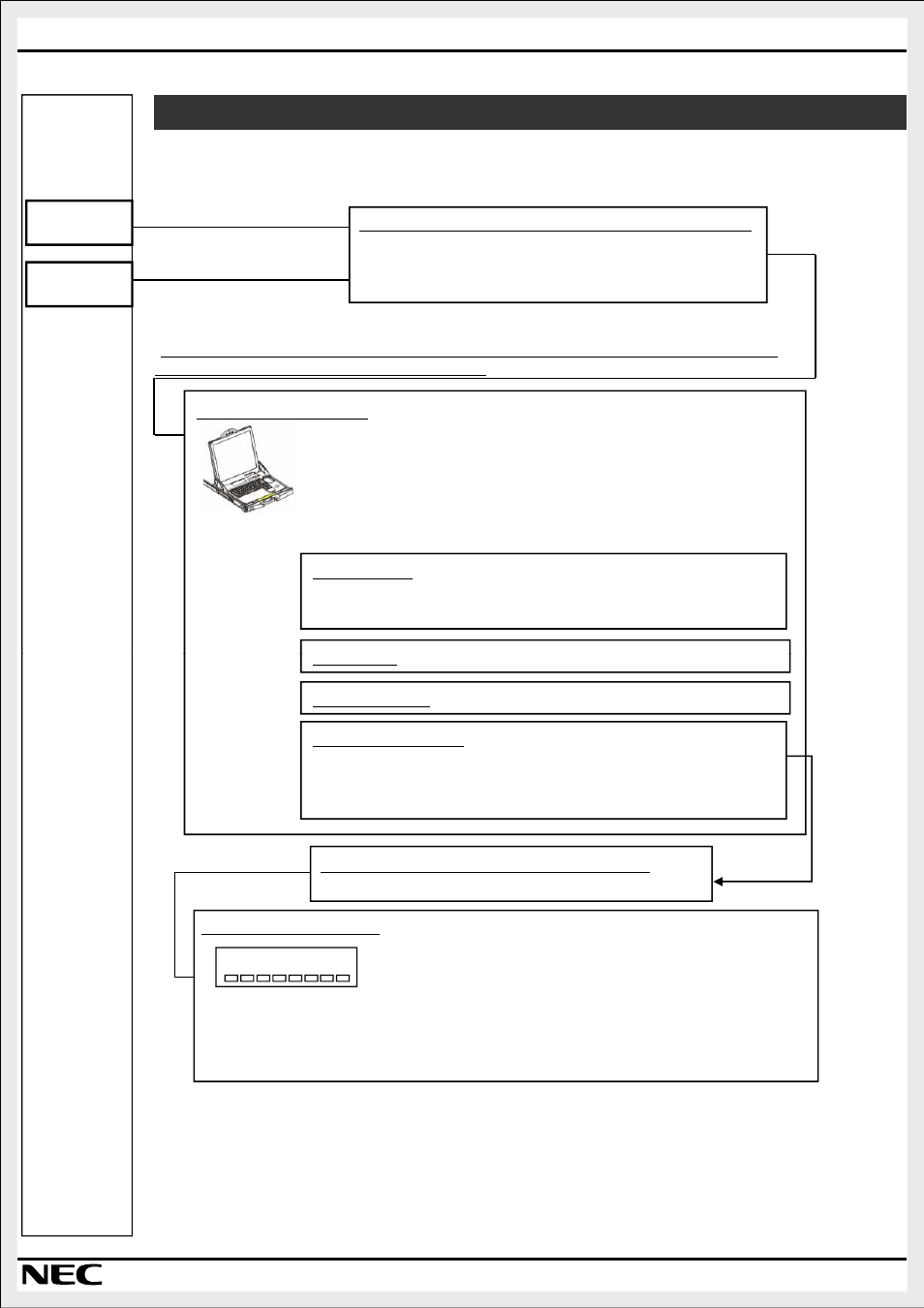

System Configuration Guide
17 inch LCD console unit
LCD Console Unit
A 17-inch LCD, keyboard, mouse, and Server Switch Unit (x8)
are integrated into the 1U LCD Console Unit.
- 17-inch LCD Console Unit (1U/8port) [N8143
Consists of the following components:
Keyboard (no ten-key numeric keypad)
Switch Unit Connection Cable Set (1.8m/3m/5m)
[K410-118(1A)] (1.8m)
[K410-118(03)] (3m)
[K410-118(05)] (5m)
17-inch LCD
1280x1024 max. Full color
•Up to eight servers can be connected directly to the LCD console unit. Use optional Server
Switch Units to connect more than eight servers.
USB
Interface
D-sub 15pin
Interface
1st Edition August ’10
Server Switch Unit
- Server Switch Unit (8 ports) [N8191
•The 17-inch LCD Console Unit [N8143
by cascading eight Server Switch Units [N8191
•The 17-inch LCD Console Unit [N8143
-09AF].
Switch Unit Connection Cable Set (1.8m)
[K410-119(1A)]
Keyboard (no ten-key numeric keypad)
Optical Mouse
Server Switch Unit
- Supports up to eight servers.
- Cascade connection of KVM switches is allowed up to two
NEC Express5800/R320a-E4/M4
17 inch LCD console unit
inch LCD, keyboard, mouse, and Server Switch Unit (x8)
are integrated into the 1U LCD Console Unit.
inch LCD Console Unit (1U/8port) [N8143-69F]
Consists of the following components:
key numeric keypad)
Switch Unit Connection Cable Set (1.8m/3m/5m)
118(1A)] (1.8m)
118(03)] (3m)
118(05)] (5m)
1280x1024 max. Full color
Up to eight servers can be connected directly to the LCD console unit. Use optional Server
Switch Units to connect more than eight servers.
Page 11 1st Edition August ’10
Server Switch Unit (8 ports) [N8191-10F]
inch LCD Console Unit [N8143-69F] allows the connection of up to 64 servers
by cascading eight Server Switch Units [N8191-10F].
inch LCD Console Unit [N8143-69F] does not support other SSUs [N8191-09F/
Switch Unit Connection Cable Set (1.8m)
key numeric keypad)
Server Switch Unit
Supports up to eight servers.
Cascade connection of KVM switches is allowed up to two tiers.
