System Configuration Guide
KVM switch
Switch unit connection cable
[Note]
- ft Server must be connected to the master KVM switch when cascade connection.
- Be sure to apply PS/2 typed keyboard/Mouse to connect to KVM switch.
- Updating the keyboard information is required after the installation has been complete,
because the operating system recognizes the keyboard as a 101 keyboard.
- Reconnect the cables or reset the KVM switch if the keyboard and mouse are out of
function after CPU/IO module fail over.

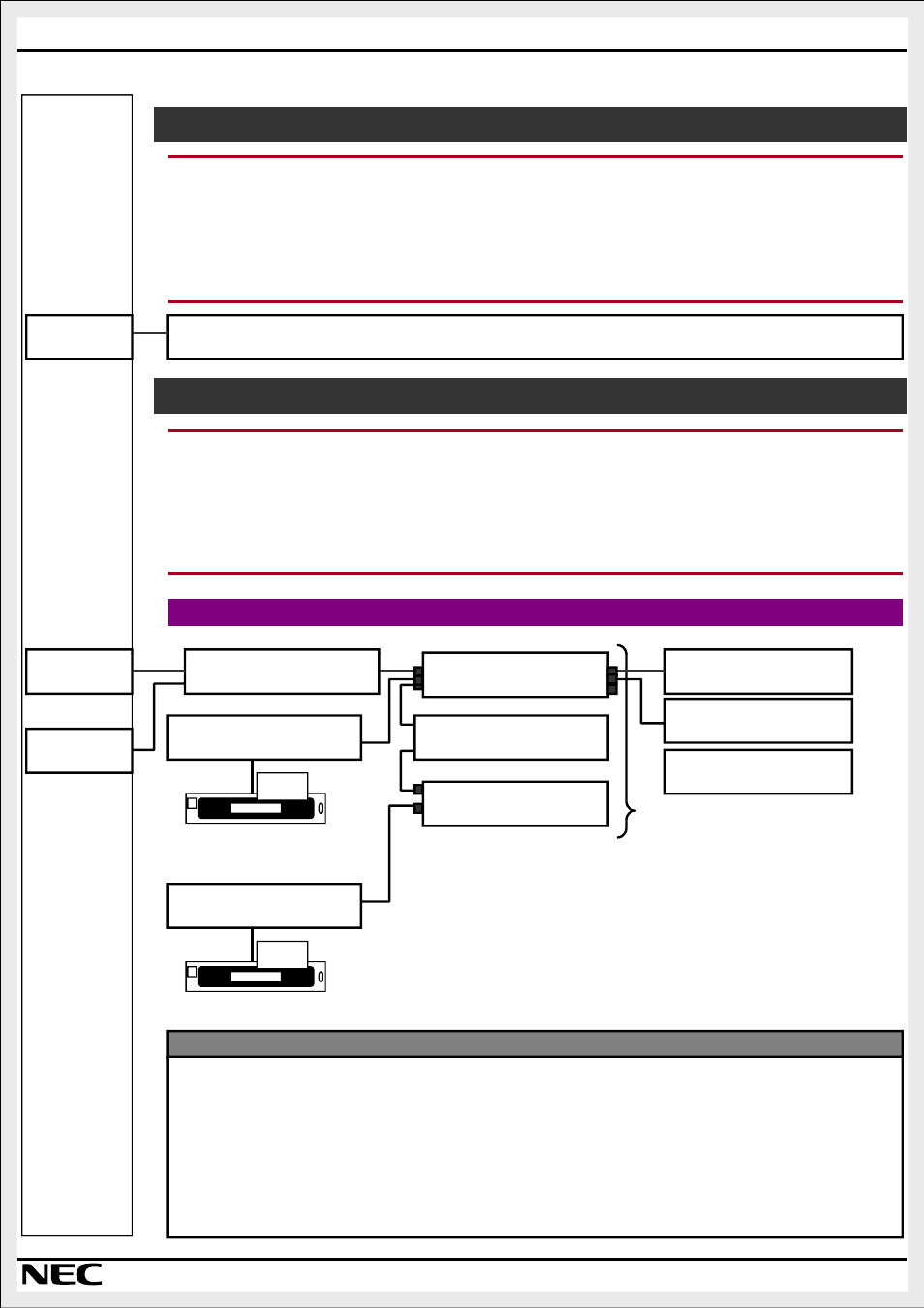

Sample configuration
Optical disk drive
USB
Interface
Optical disk drive:
Slimline DVD-RAM drive included in the front panel as standard
1 internal
connector
[Note]
-Writing function is not supported.
-Optical disk drive is not accessible after installing ft Server Control Software.
If you need to access the Optical disk drive, use the following command for temporary
use.
# /opt/ft/sbin/enable-usb-storage
Using Optical disk drive is not recommended.
1st Edition August ’10
USB
Interface
Switch unit connection cable
set [K410-118(xx)]
Switch unit connection cable
set [K410 D-sub 15pin
Interface
Product List
Express5800/100 Series
PS/2
Switch unit connection cable
set [K410-119(xx)]
Server Switch Unit
(8Port/USB) [N8191
Express5800/100 Series
PS/2
Switch unit connection cable
set [K410-119(xx)]
Server Switch Unit
(8Port/USB) [N8191
KVM switch:
N8191-10F Server Switch Unit(8Server/USB)
Cables:
K410-118(1A) Switch unit connection cable set
K410-118(03) Switch unit connection cable set
K410-119(1A) Switch unit connection cable set
K410-119(03) Swtich unit connection cable set
K410-104A(03) Display/Keyboard extension cable
Keyboard/Mouse:
104Keyboard
N8170-15 2 button w/ wheel mouse
NEC Express5800/R320a-E4/M4
LCD Monitor
ft Server must be connected to the master KVM switch when cascade connection.
Be sure to apply PS/2 typed keyboard/Mouse to connect to KVM switch.
Updating the keyboard information is required after the installation has been complete,
because the operating system recognizes the keyboard as a 101 keyboard.
Reconnect the cables or reset the KVM switch if the keyboard and mouse are out of
function after CPU/IO module fail over.
Master
RAM drive included in the front panel as standard
Optical disk drive is not accessible after installing ft Server Control Software.
If you need to access the Optical disk drive, use the following command for temporary
storage
Using Optical disk drive is not recommended.
Page 10 1st Edition August ’10
Cascade connection of KVM
switches is allowed up to two
tiers.
Switch unit connection cable
set [K410-119(1A)]
LCD Monitor
2 button w/ wheel mouse
[N8170-15]
104 Keyboard
Server Switch Unit
(8Port/USB) [N8191-10F]
Slave
Server Switch Unit
(8Port/USB) [N8191-10F]
Server Switch Unit(8Server/USB) 1U or Desktop
Switch unit connection cable set KVM unit – Server, USB, 1.8 m
Switch unit connection cable set KVM unit – Server, USB, 3 m
Switch unit connection cable set KVM unit – Server, PS/2, 1.8 m
Swtich unit connection cable set KVM unit – Server, PS/2, 3 m
Display/Keyboard extension cable KVM unit – Keyboard/Mouse, PS/2, 3 m
PS/2
2 button w/ wheel mouse PS/2
