Press Enter to auto-detect IDE and SATA channels in the system. Once the channel is
detected, the values for Capacity, Cylinder, Heads, Precomp, Landing Zone, and Sector
are automatically filled in.
• None
There is no HDD installed or set.
• Auto
The system can auto-detect the hard disk when booting up.
• Manual

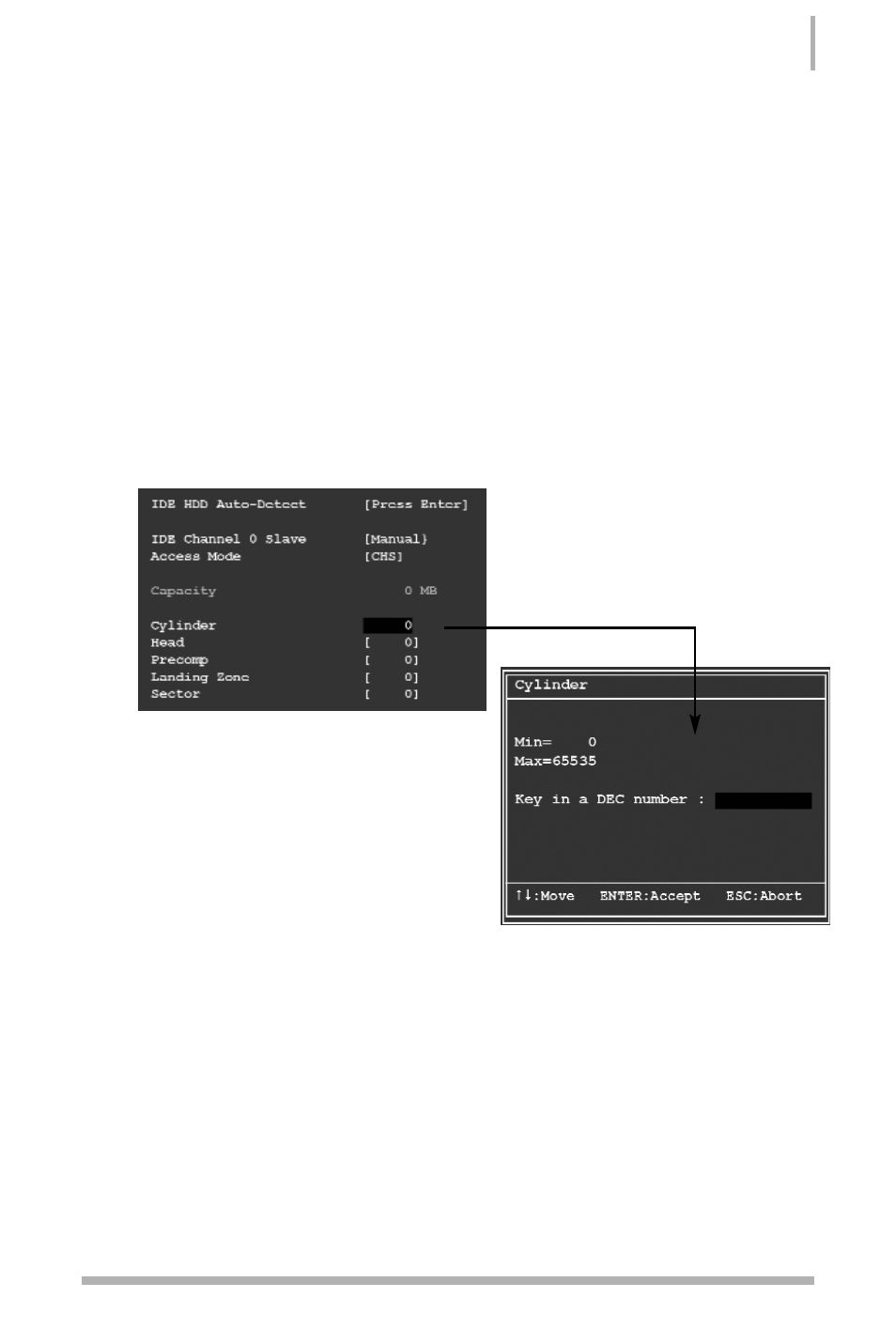

When you set the channel to [Manual] and change Access Mode to [CHS], you can
then enter the number of cylinders, heads, Precomp, landing zone, and sector. You can
manually enter the values or you can press Enter to display a window that tells you the
min and max values.
The BIOS supports the following HDD Access
Modes:
➢ CHS
For HDD less than 528 MB.
➢ LBA
For HDD greater than 528 MB and
supporting LBA (Logical Block
Addressing).
➢ Large
For HDD greater than 528 MB but not supporting LBA.
➢ Auto
Recommended mode.
33
Configuring the BIOS
Press ENTER to display sub-menu or enter
number manually
