Using your Pocket LOOX
Using your Pocket LOOX
Your Pocket LOOX
In this section you will find a description of the operating controls of your Pocket
LOOX and how you operate the Pocket LOOX.
Please refer to the notes in the chapter "Important notes", Page 2 .

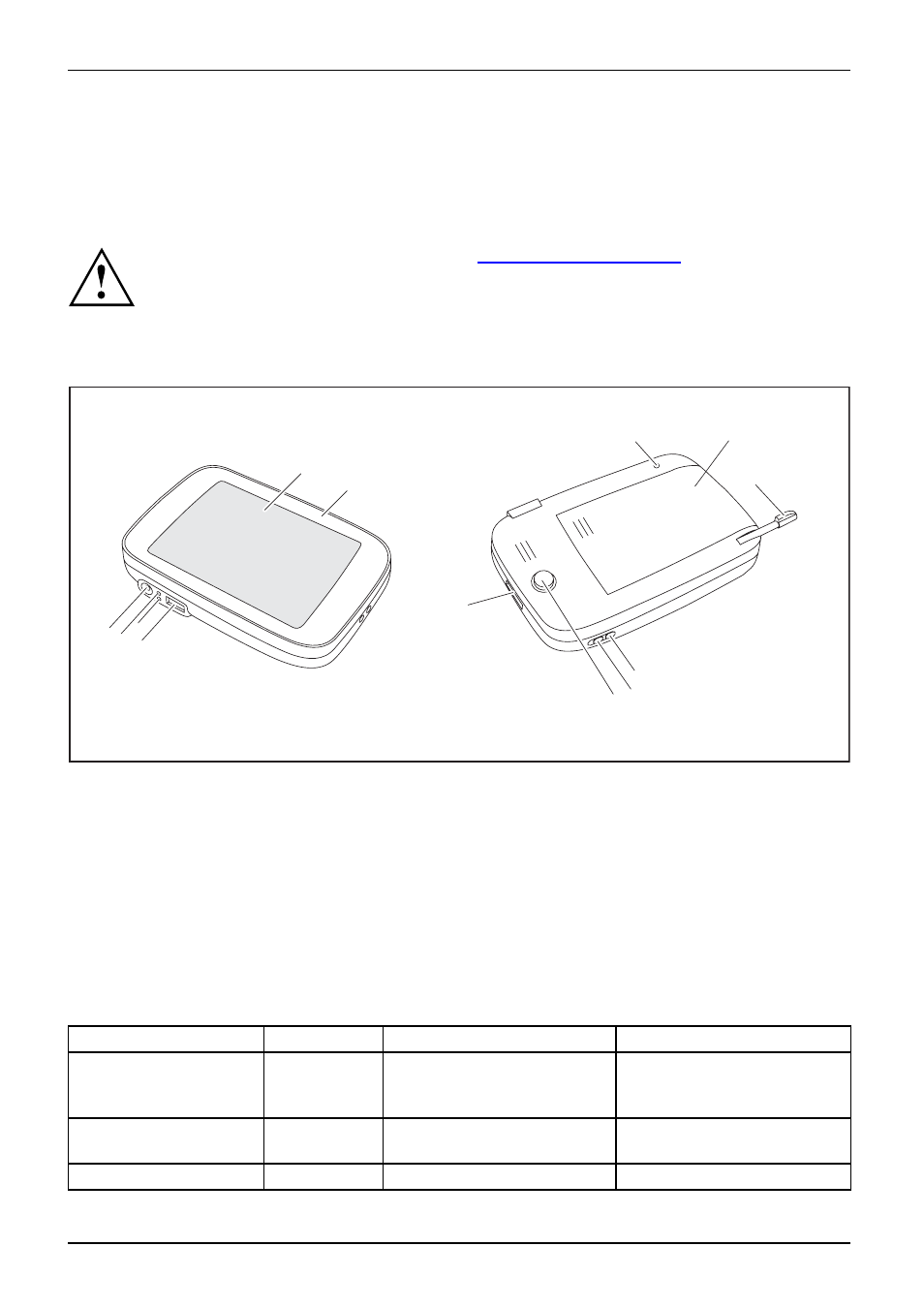

Overview of controls, ports and displays
Headphone port Battery charge status display GPS radio indicator Infrared interface Mini USB port Screen Front cover Cover Suspend/Resume button Hold switch Port for mini SD expansion card GPS antenna Exanpable stylus
1
2
13
7
9
10
11
12
3
4
5
6
8
1 = Screen
2 = Replaceable front cover
3 = Mini USB port
4 = Signal Status
5 = Battery charge status
6 = Headphone port
7 = Reset button 8 = Battery compartment
9 = Slot for expandable stylus
10 = Hold switch
11 = Suspend/Resume button
12 = Hold switch
13 = Port for mini SD expansion card
LED indicators
GPS Display Display Radio indicator Power indicator Status
LED indicator Color Description Indicator state
Battery charging
indicator Red AC adapter connected,
Pocket LOOX connected to
a PC via the USB port. Lights up
Battery charging
indicator Red No AC adapter connected Off
GPS radio indicator Blue GPS activated. Flashing
6 A26391-K197-Z126-1-7619, edition 1
