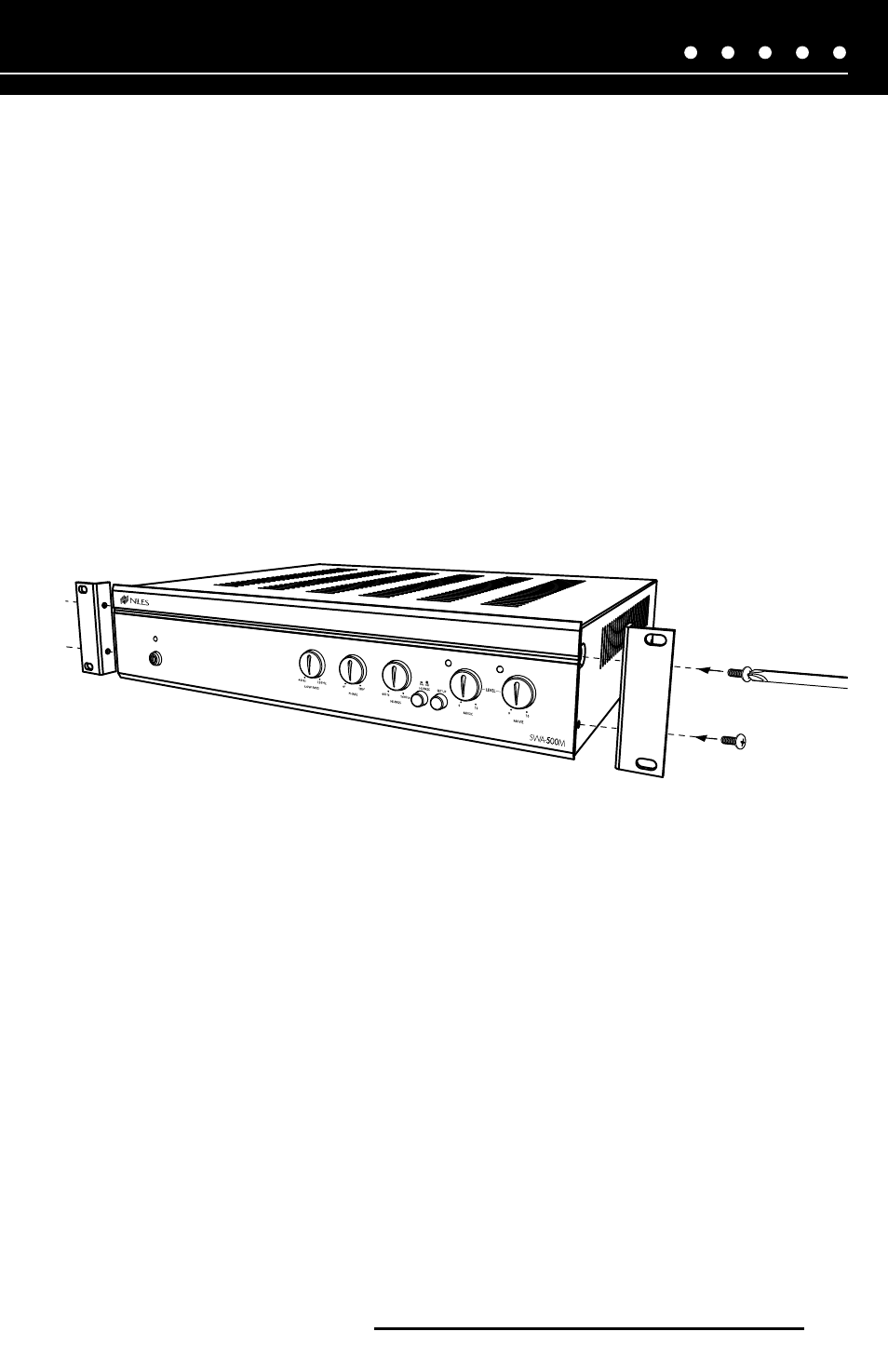

Figure 4. Install the included rack ears as shown using a #2 Phillips screwdriver
NILES AUDIO CORPORATION – 1-800-BUY-HIFI
5
RACK MOUNTING THE SWA-500M
1. Before installing the rack ears, remove the screws attached to the sides of the unit.
Install the included rack ears as shown in Figure 4 using a #2 Phillips screwdriver. Do
not use any other screws or damage to the amplifier may result.
2. Place the SWA-500M in desired location within rack. Support the weight of the
amplifier from the bottom and carefully install the left and right lower rack ear
screws first.
3. Once the lower screws are completely installed, you may release the bottom of the
amplifier to install the left and right upper rack ear screws last.
4. Connect the amplifier according to the type of system desired.
NOTE: SEE APPLICATIONS STARTING ON PAGE 11 FOR DETAILED WIRING CONNECTIONS FOR
YOUR APPLICATION.
