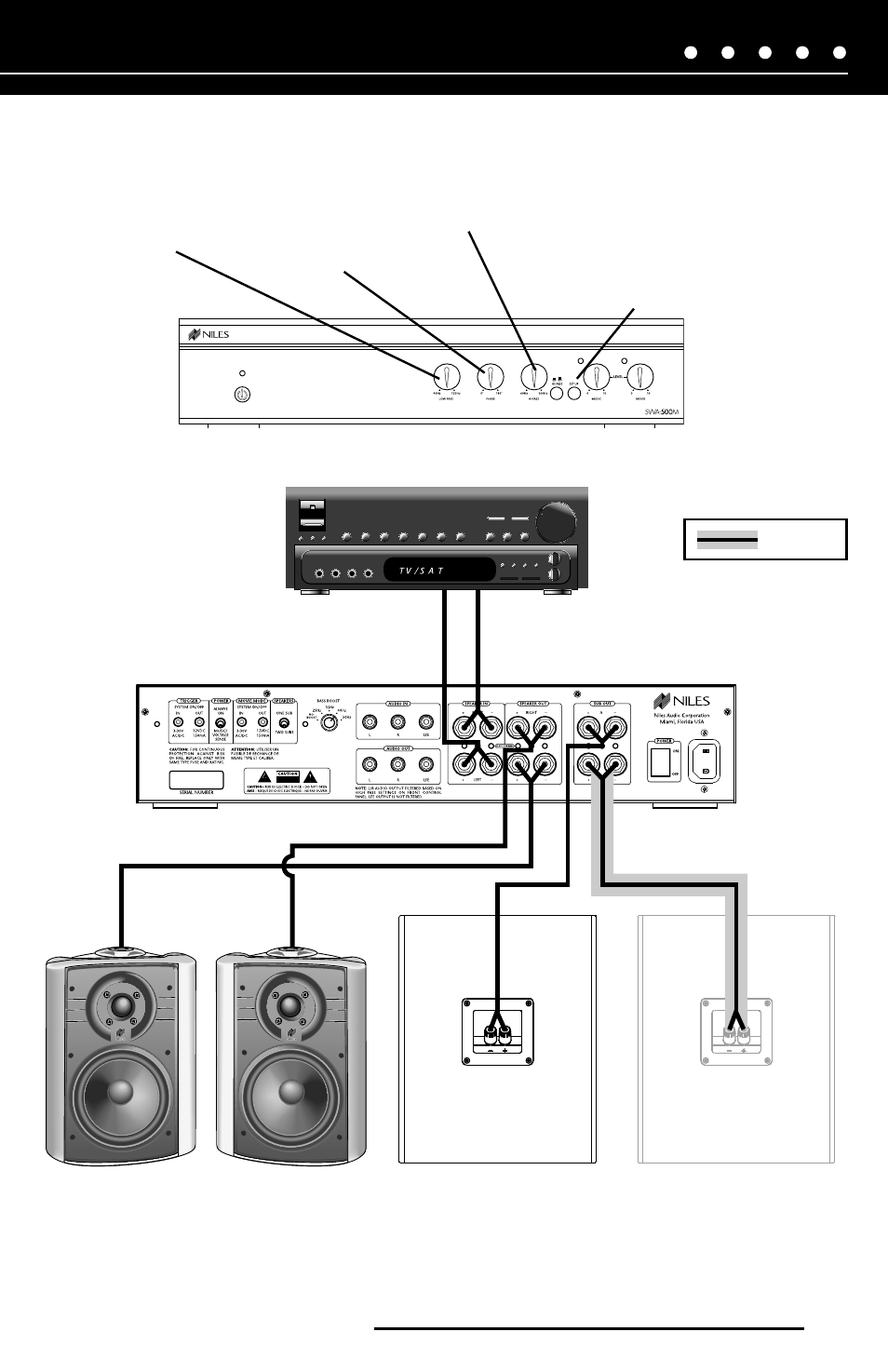

Figure 10. Connecting satellite loudspeakers
2nd Subwoofer
(Optional)
SWA-500M Back
Home
Theater
Receiver
R L
1st Subwoofer
Left & Right
loudspeaker Outputs
Controls not used Position SET UP switch
to the mode you wish to
adjust MUSIC OR MOVIE
and adjust level controls
per instructions
Set LOW PASS to
about 100Hz
Adjust PHASE to
integrate subwoofer
sound with system
Optional
R L
Right Loudspeaker Left Loudspeaker
NILES AUDIO CORPORATION – 1-800-BUY-HIFI
SWA-500M AND LOUDSPEAKER LEVEL CONNECTION
TO SATELLITE LOUDSPEAKERS
