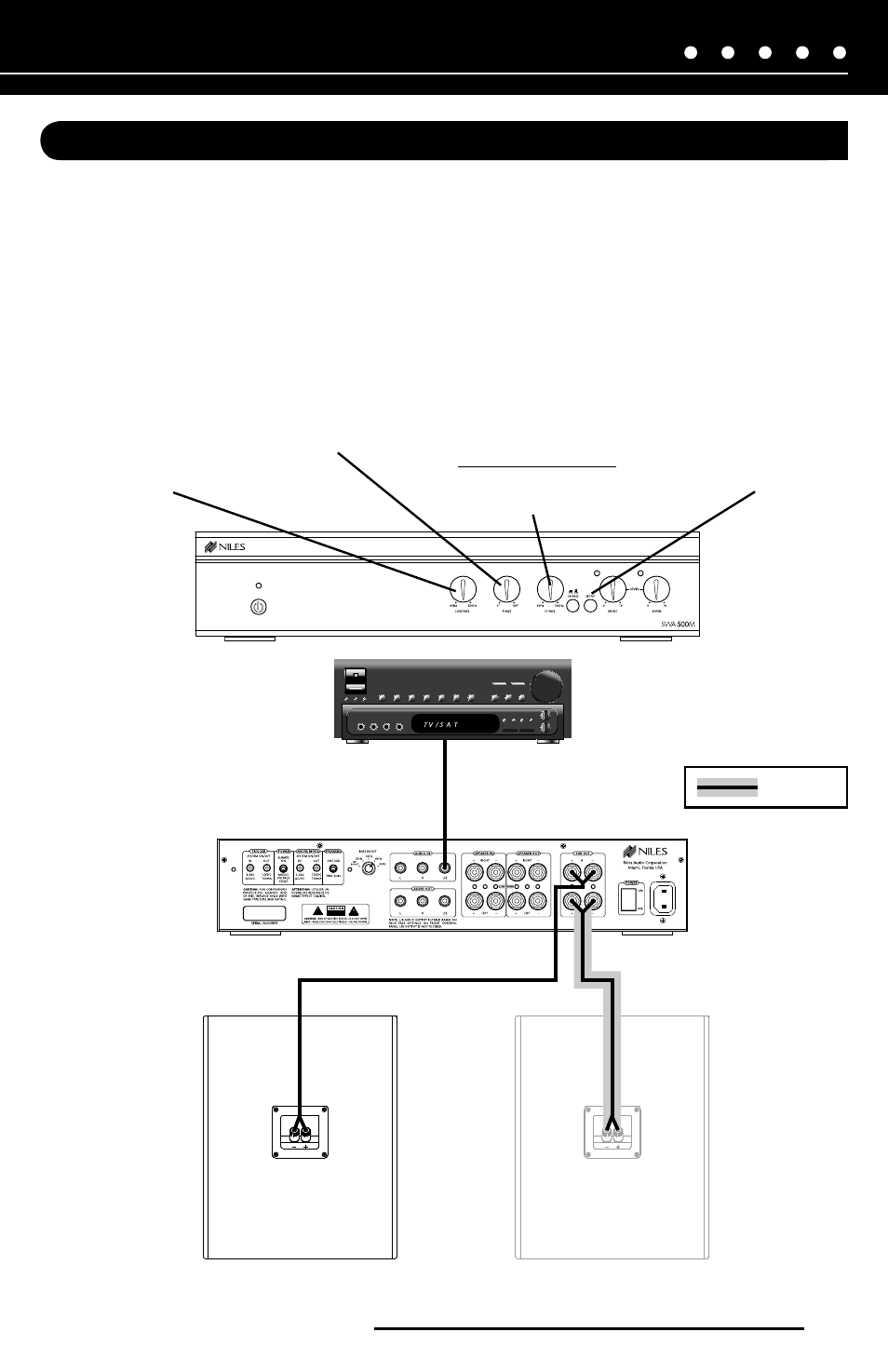

Figure 8. Line-level connection
2nd Subwoofer (Optional)
SWA-500M Back
Optional
LFE
Home
Theater
Receiver
1st Subwoofer
LFE Output
Set switch to ON and adjust FREQUENCY
to match low frequency cutoff of your
satellite loudspeakers
Alternate configuration:
Set switch to OFF to send full range
audio to L/R AUDIO OUT jacks
Position SET UP switch
to the mode you wish to
adjust MUSIC OR MOVIE
and adjust level controls
per instructions
Set LOW PASS to closely
match HIGH PASS
FREQUENCY control
NOTE: Control does not
function when using LFE input
Adjust PHASE to
integrate subwoofer
sound with system
NILES AUDIO CORPORATION – 1-800-BUY-HIFI
APPLICATIONS
The SWA-500M subwoofer amplifier is very flexible and can be configured for use in various
applications with associated external audio components, as shown in
Figures 8 through 11.
For other SWA-500M applications, consult your local Niles dealer for help in configuring your home
theater system.
SWA-500M IN A TYPICAL HOME THEATER INSTALLATION
11
