Pci, pxi, and daqcard device configuration, Figure 21. daqcard-6533 completed installation, Pci, pxi, and daqcard device configuration -4 – National Instruments DIO 6533 User Manual
Page 24: Figure 2-1, Daqcard-6533 completed installation -4
Chapter 2
Installation and Configuration
DIO 6533 User Manual
2-4
© National Instruments Corporation

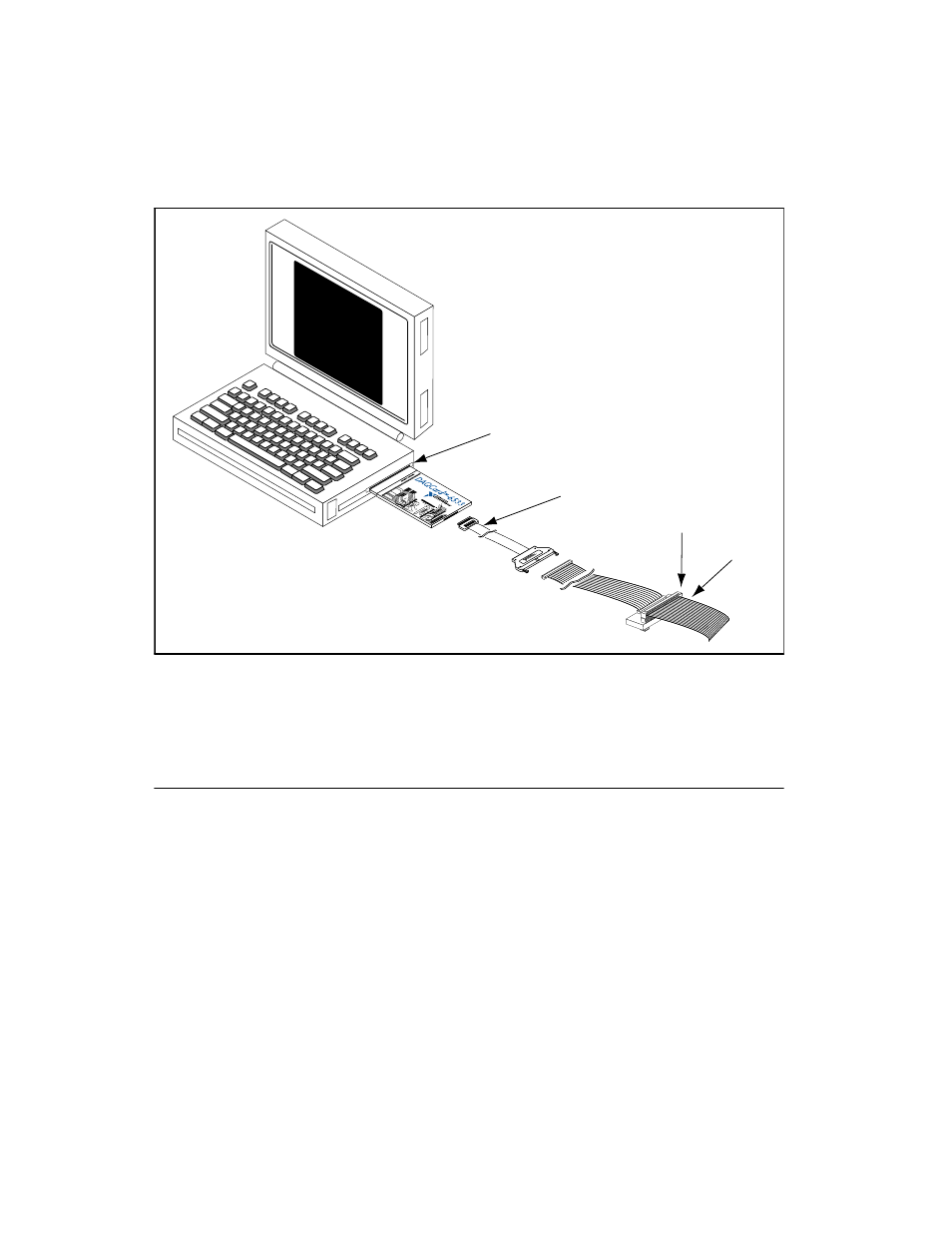

Figure 2-1. DAQCard-6533 Completed Installation
Your 6533 device is installed. The device is now ready for software
configuration.
PCI, PXI, and DAQCard Device Configuration
The PCI-DIO-32HS, PXI-6533, and DAQCard-6533 are completely
software configurable. The system software automatically allocates all
device resources, including base memory address and interrupt level.
These devices do not require DMA controller resources from your
computer.
PCMCIA Socket
Portable
Computer
I/O Cable
CB-68
I/O Signals
