37 Tracker500/500i User Manual
Appendix B – Tracker500/500i Installation
Packing List
• GPS Tracker500/500i Display Head, including 2 mounting knobs & 2 washers
• Power/data cable
• Mounting Bracket
• User’s manual
• GPS Antenna, Tracker500 only
• GPS Antenna User’s Manual, Tracker500 only
Mounting
Choose a location for the display head that provides good visibility and protects the unit
from direct sun and excessive exposure to water.
Select a position that is:
• At least 300mm from a compass
• At least 300mm from any radio
• At least 1.5m from any radio antenna
• Easy to read by the helmsman and crew
• Protected from physical damage
• Accessible for electrical cable connections
• Tracker500i - Must have a clear view of the sky, but can “see” through glass, perspex,
fibreglass and fabric.

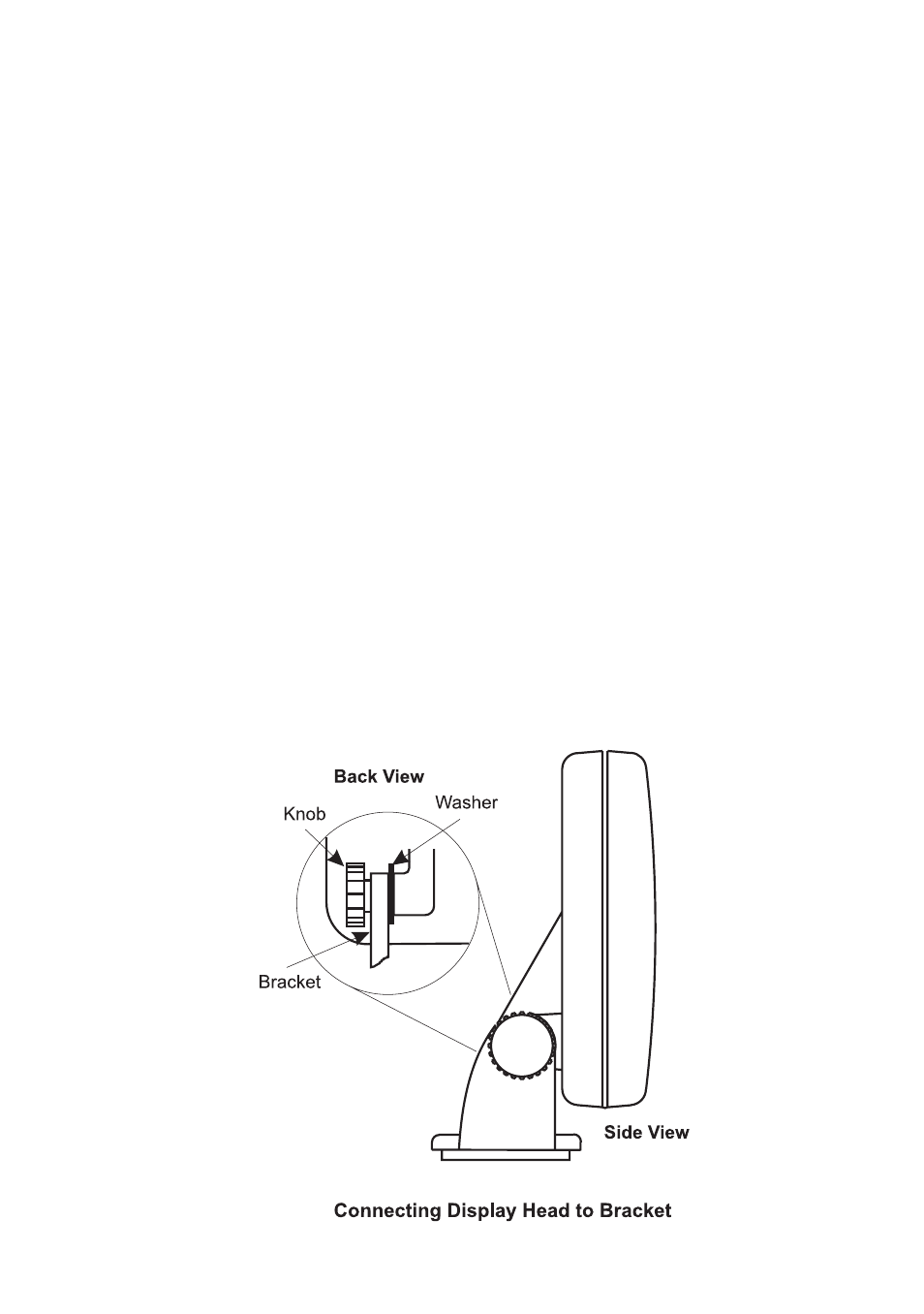

Once a location is selected secure the mounting bracket with the screws provided in the
mounting kit.
