4 x N570-0080 (#14 x 1/2”)
3/8”(10mm) 4 x N570-0080 (#14 x 1/2”) 1 X N430-0002

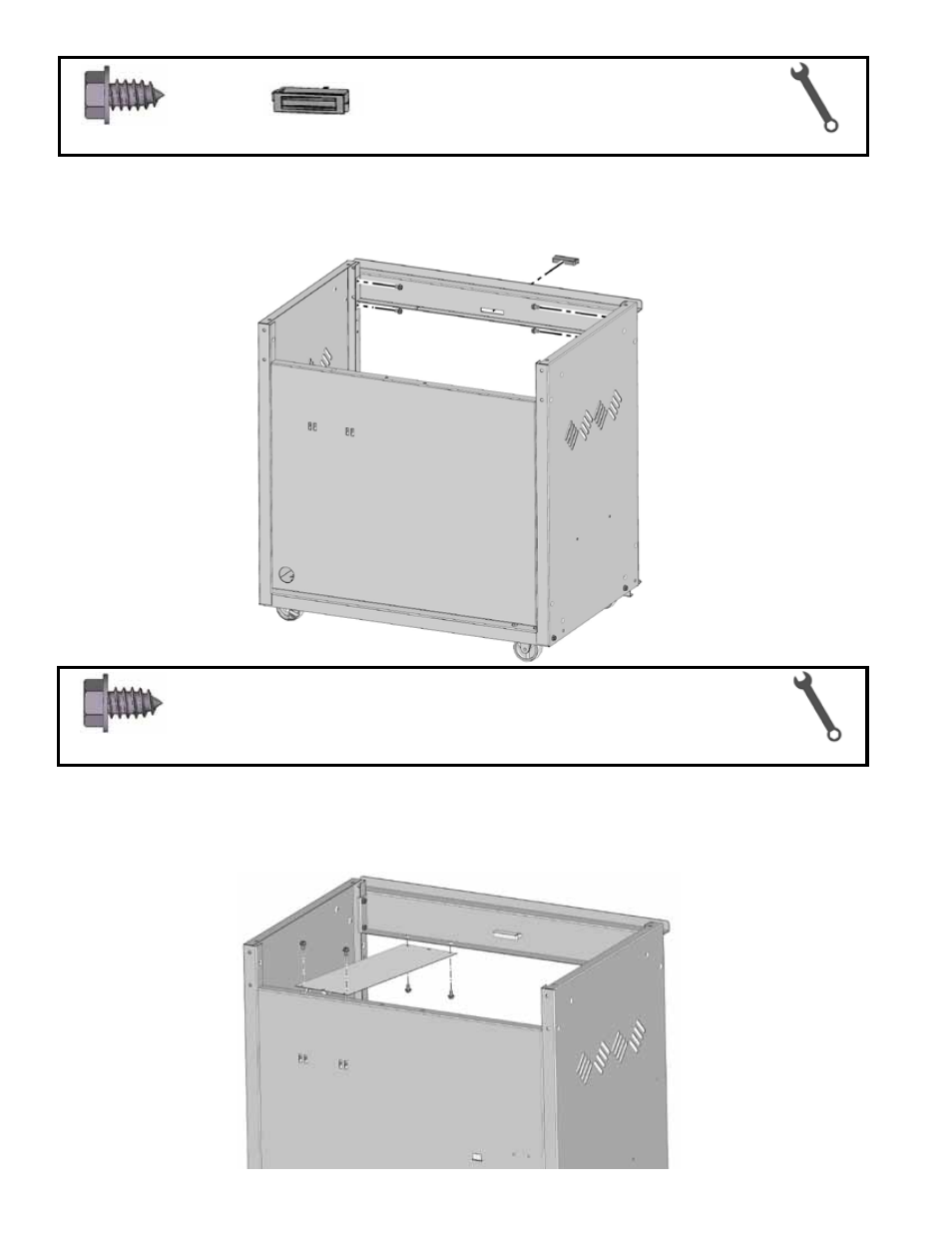

7. Front Cabinet Support Installation
Fasten top rail assembly to the front of side panels using (4) #14 x 1/2” screws. For ease of installation start all screws
before tightening completely. Snap magnet into place as shown.
3/8”(10mm)
8. Heat Shield Installation
Attach heat shield using (4) #14 x 1/2” screws. Attach one end under lip of back panel and other end to underside of front
cabinet support.
