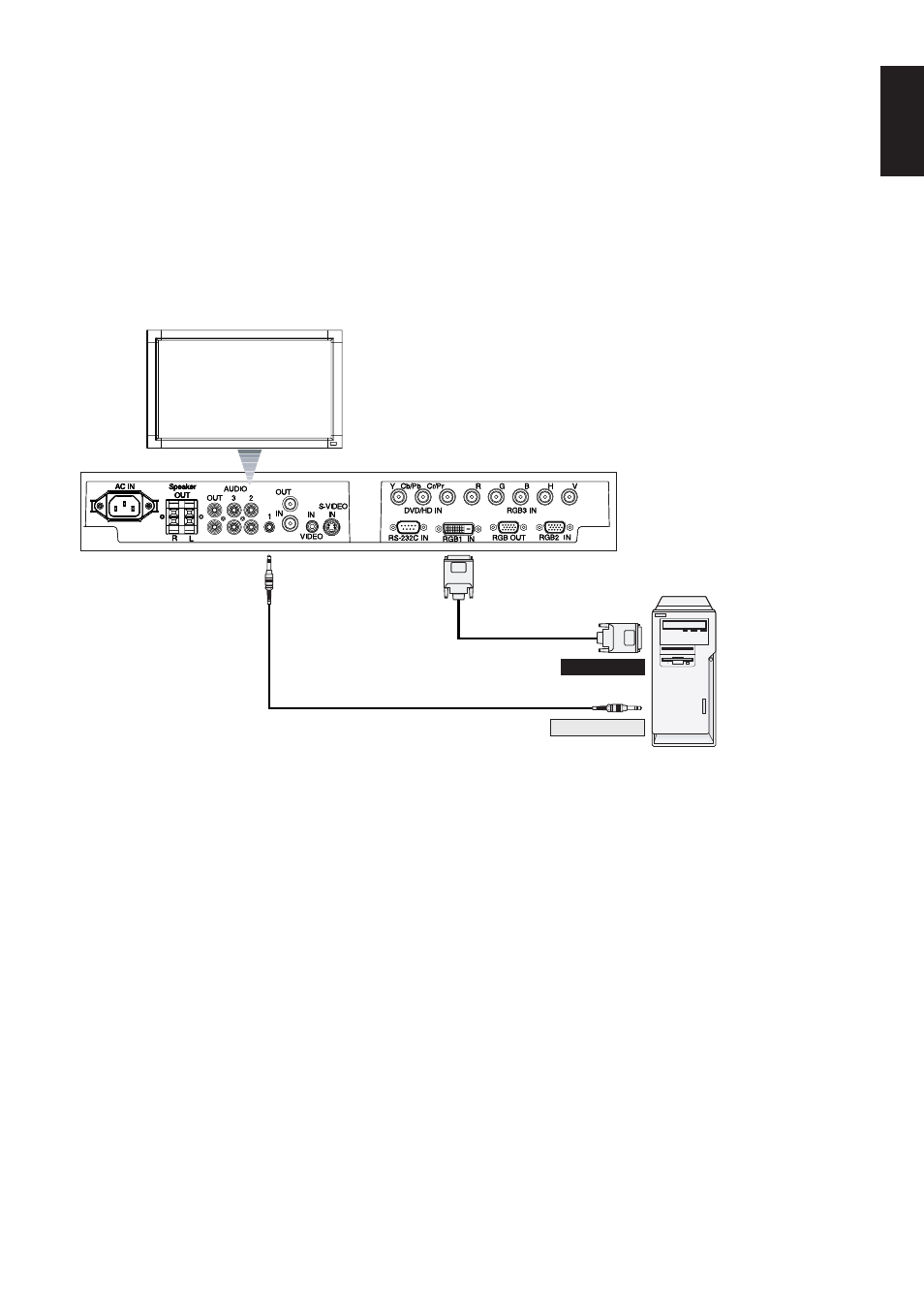

Connect the LCD Monitor to a Computer with a Digital Output
• The RGB1 connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
• To maintain display quality, use a cable that conforms to DVI standards.
• AUDIO IN 1, 2 and 3 can be used for audio input. To select audio source [AUDIO:1], [AUDIO:2] or [AUDIO:3] press the
AUDIO INPUT button.
• For mode selection, see “DVI MODE” on page 24.
Connecting with Digital Interface Equipment
Connections can be made with equipment that is equipped with a digital interface that complies with the DVI (Digital Visual
Interface) standard.
