9
Preparation
20
19
15
18
16
17
24
23
22
21

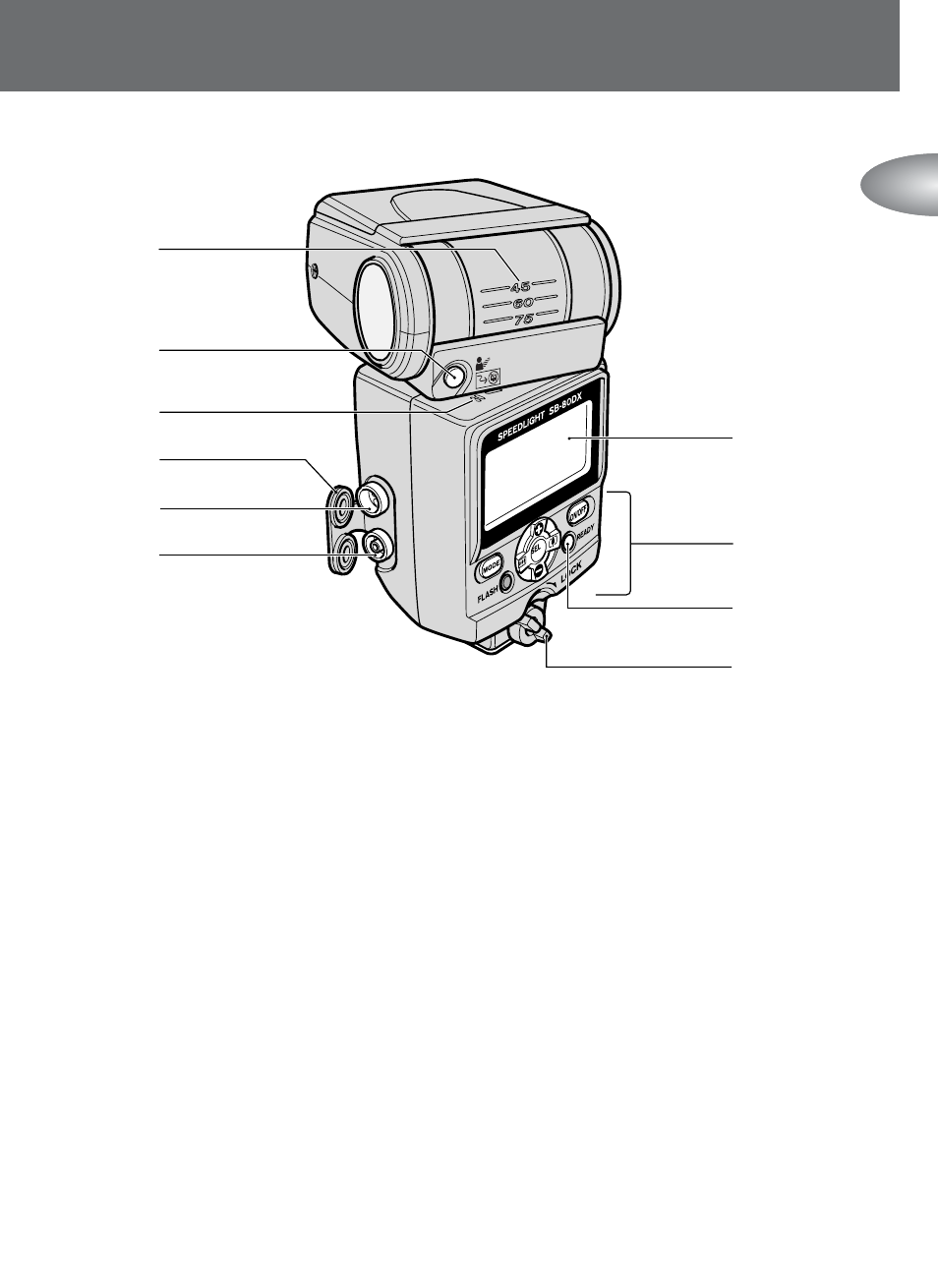

15 Flash head tilting angle scale (p. 68)
16 Modeling illuminator button (p. 61)
Press to fire flash repeatedly to check the
illumination and the shadows cast on the
subject before taking pictures.
Wireless slave flash cancel
button (p. 85)
The SB-80DX will not fire, while this button
is pressed.
17 Flash head rotating angle
scale (p. 68)
18 Terminal cover
19 TTL multiple flash terminal (p. 78)
Connects the SB-80DX to the slave flash
unit(s) in TTL multiple flash operation.
20 Sync terminal (p. 79)
Connects the SB-80DX to the sync terminal
of the slave flash unit(s) in other than TTL
multiple flash operations.
21 LCD panel (p. 10)
22 Control buttons (p. 11)
23 Ready-light
Lights up when the SB-80DX is fully
recycled and ready to fire. Blinks after the
SB-80DX fires at its maximum output in
various auto flash modes, indicating that
the light may be insufficient.
24 Mounting foot lock lever (p. 20)
