I V . A S S E M B L Y
INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly
to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and
assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be
replaced with a new nut. Nylon insert lock nuts should not be reused as it may cause damage to the nylon
insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores
or through your authorized Pride Provider.
SEATBACK ANGLE ADJUSTMENT

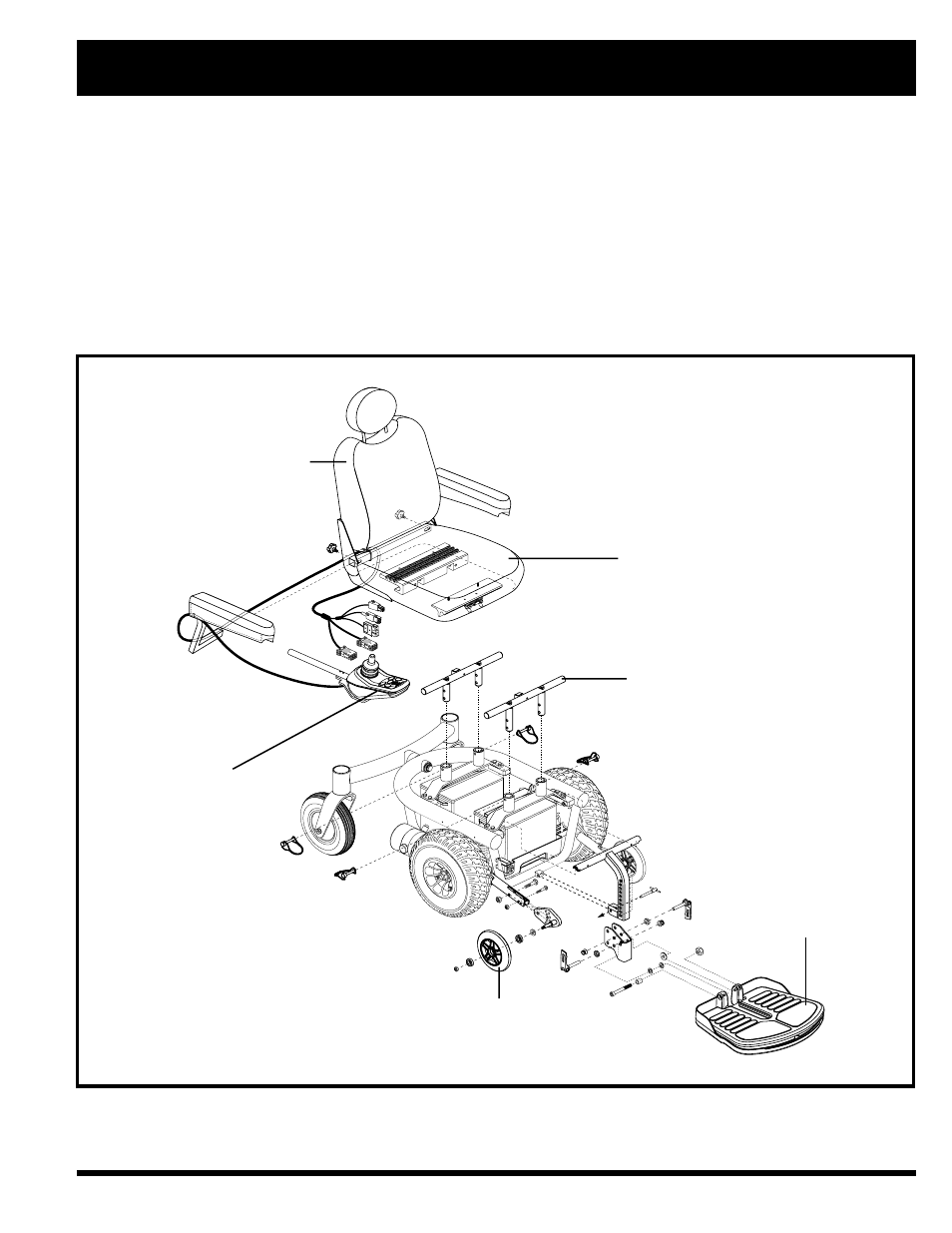

Figure 10. Jazzy 1103 Ultra Assembly View
ANTI-TIP WHEEL ADJUSTMENT
SEAT HEIGHT/ANGLE ADJUSTMENT
CONTROLLER POSITION
SEAT INSTALLATION
FOOT PLATFORM HEIGHT/
ADJUSTMENT
