20 www.pridemobility.com Jazzy 1103 Ultra
I I I . Y O U R P O W E R C H A I R

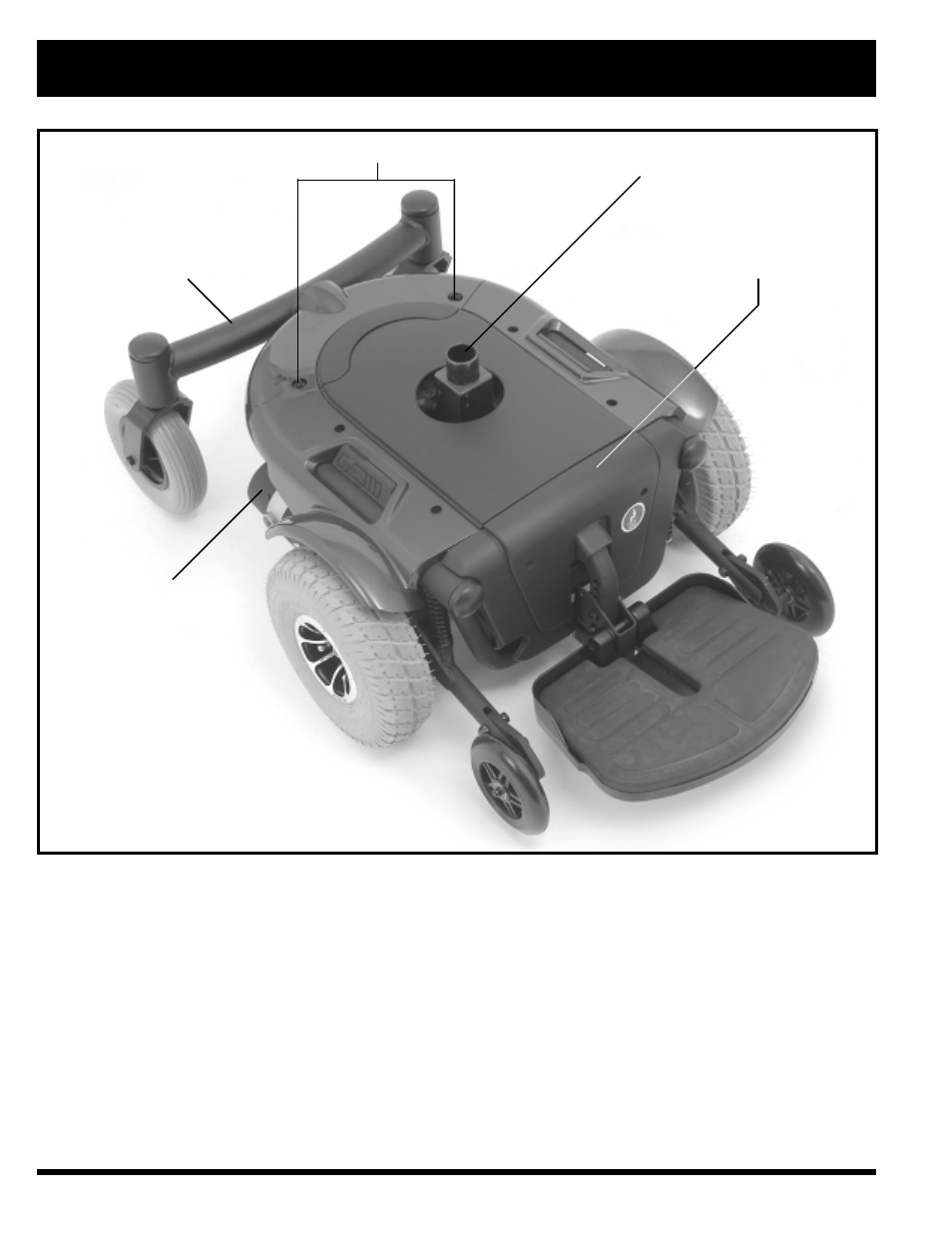

Figure 6. The Jazzy 1103 Ultra Power Base
MOTOR/BRAKE ASSEMBLY
ARTICULATING BEAM
POWER SEAT ACTUATOR
REAR SHROUD FASTENERS
YELLOW FASTENER (LOCATED
UNDER FRONT SHROUD)
ELECTRICAL COMPONENTS
The electrical components are located on the power base. The ammeter and the charger power cord receptacle are
located on the right side of the power base. The main circuit breaker is located on the front of the battery tray. The
controller connector and the motor connectors are located on the power pod, inside the power base. See figure 7.
Ammeter: The ammeter displays the charger’s current output in amps. See VI. “Batteries and Charging.”
Charger Power Cord Receptacle: This is where the charger power cord plugs into the onboard battery charger. See VI.
“Batteries and Charging.”
