13
English
3139 115 22741

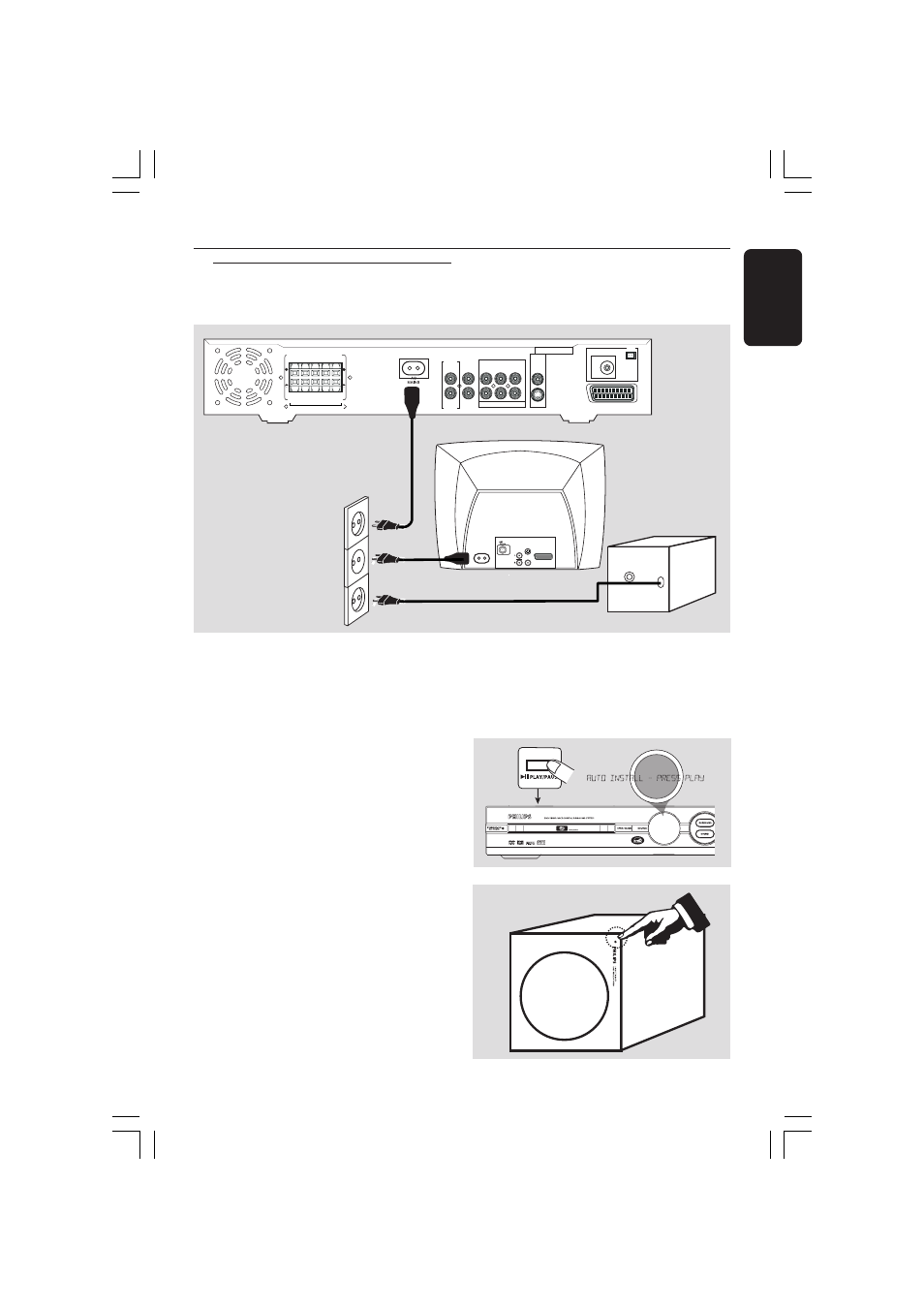

Step 6: Connecting the
power cord
L C R SL SR
+ +
MW
FM/MW ANTENNA
FM 75 Ω
SCART OUT S-VIDEO
CVBS
VIDEO OUT
AUDIO
AUX
IN
TV
IN
LINE
OUT DIGITAL
OUT
CENTER
OUT
DIGITAL IN WOOFER LINE OUT
SURROUND FRONT CENTER
SPEAKER SYSTEMS (8 Ω )
CDR
AUDIO OUT
S-VIDEO IN
VIDEO IN
SCART IN ~ AC MAINS
~ AC MAINS
AUDIO
INPUT
power outlet
Connections
After everything is connected
properly, plug in the AC power cord
to the power outlet.
Never make or change any connections
with the power switched on.
On the DVD system,
"
AUTO INSTALL - PRESS PLAY" may
appear on the display panel. Press 2; on
the top panel to store all available radio
stations or press 9 to exit (see page 37
“Tuner Operations”).
On the active subwoofer,
The LED indicator at the front panel will
light up in green when the subwoofer is
receiving an audio signal input. If there is
no audio signal input, it will automatically
switch to standby mode and the LED will
change to orange colour.
