7
RQT9075
1Standby/on switch ( Í/I) ( ➡ 10)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2Disc tray ( ➡ 15)
3Connection for digital video (DV) camcorder ( ➡ 23)
4Connection for VCR, camcorder etc. ( ➡ 23)
5Display ( ➡ below)
6Open/close disc tray ( ➡ 15)
7USB port ( ➡ 15)
8Stop ( ➡ 17, 26)
9Start play ( ➡ 16)
:Channel select ( ➡ 17)
;Start recording ( ➡ 17)/Specify a time to stop recording (➡ 17)
=[EH68] SD card slot (
➡ 15)
Rear panel terminals ( ➡ 8, 9, 63, 64, 65)
3Timer recording indicator
4[EH68] SD card slot indicator
5Disc indicator
6Drive [HDD, DVD or SD ([EH68])] indicator
7Main display section indicator
8Recording mode indicator

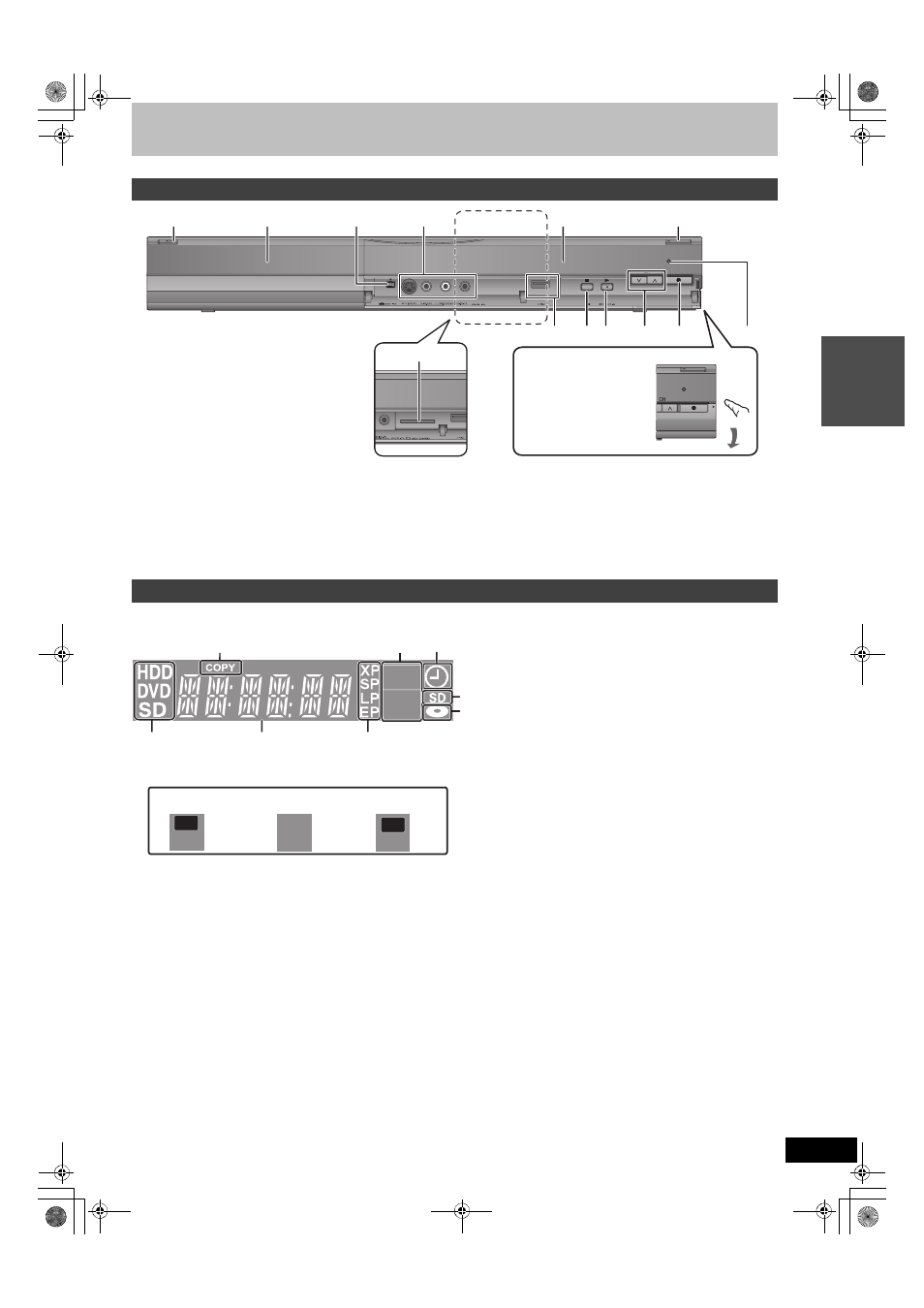

Main unit
OPEN / CLOSE
REC
OPEN / CLOSE
REC
[EH68]
Pull to flip down the front
panel.
The unit’s display
PLAY PLAY
PLAY
REC
REC REC
[EH68]
1 Copying indicator
Recording indicator Playback indicator Recording/Playback
indicator
2
Con
tr
o
l r
e
fe
re
nc
e
guide
