Page 8 Installation Instructions

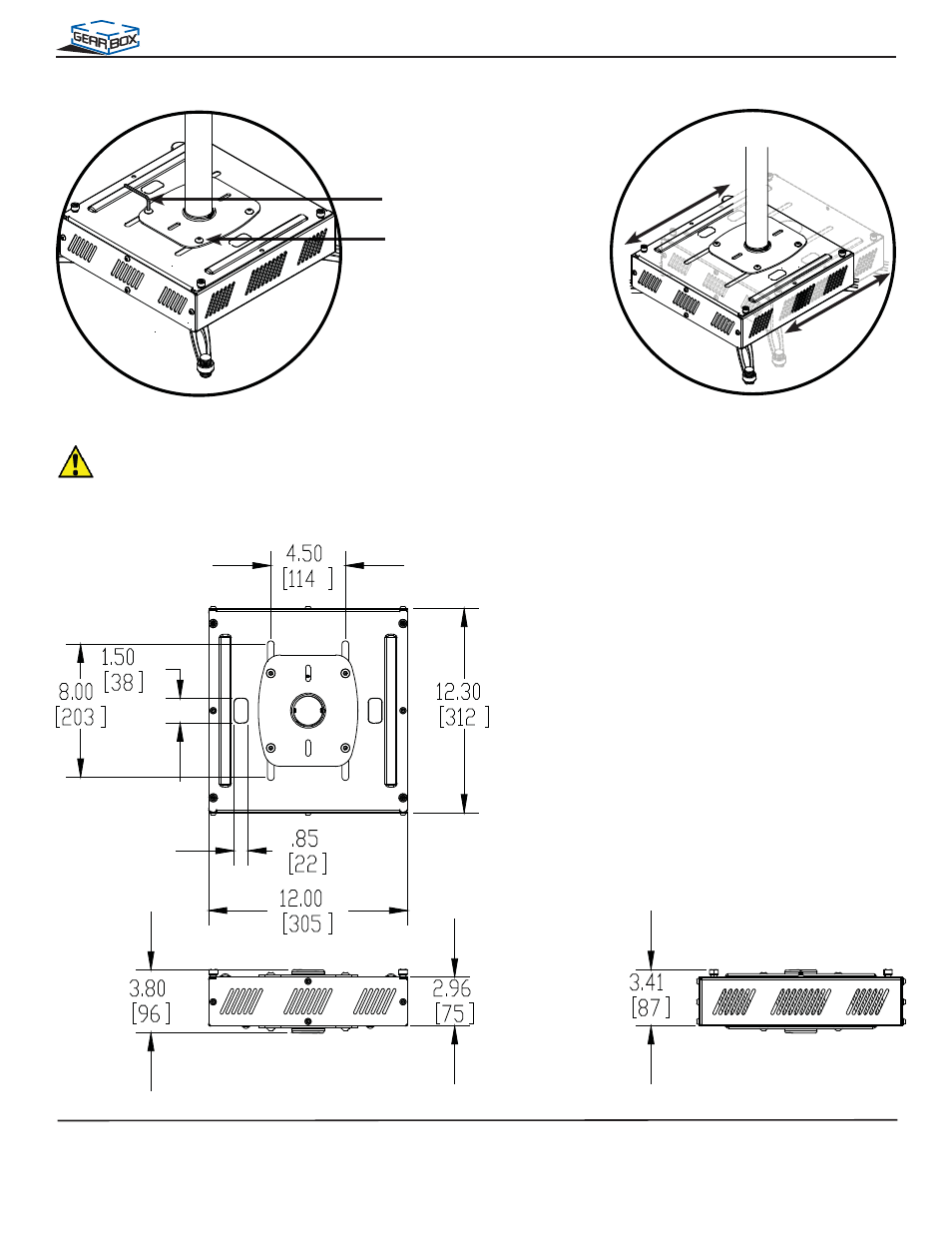

Technical Specifications
All measurements are in inches(mm).
GB-PIPE1
Lateral Shift Adjustment
M8 x 12mm
Security Head
Screw
M5 Security
Wrench
Step 1. Use the M5 security wrench and loosen
the four (4) M8 x 12mm security screws.
Step 2. Once the screws have been loosened,
slide the GB-PIPE1 laterally side to side
(or front to back).
Step 3. When the desired position has been
determined, use the M5 security wrench to
tighten the M8 x 12mm security screws.
Do not completely remove these screws.
