Page 4 Installation Instructions
GB-PIPE1 Installation

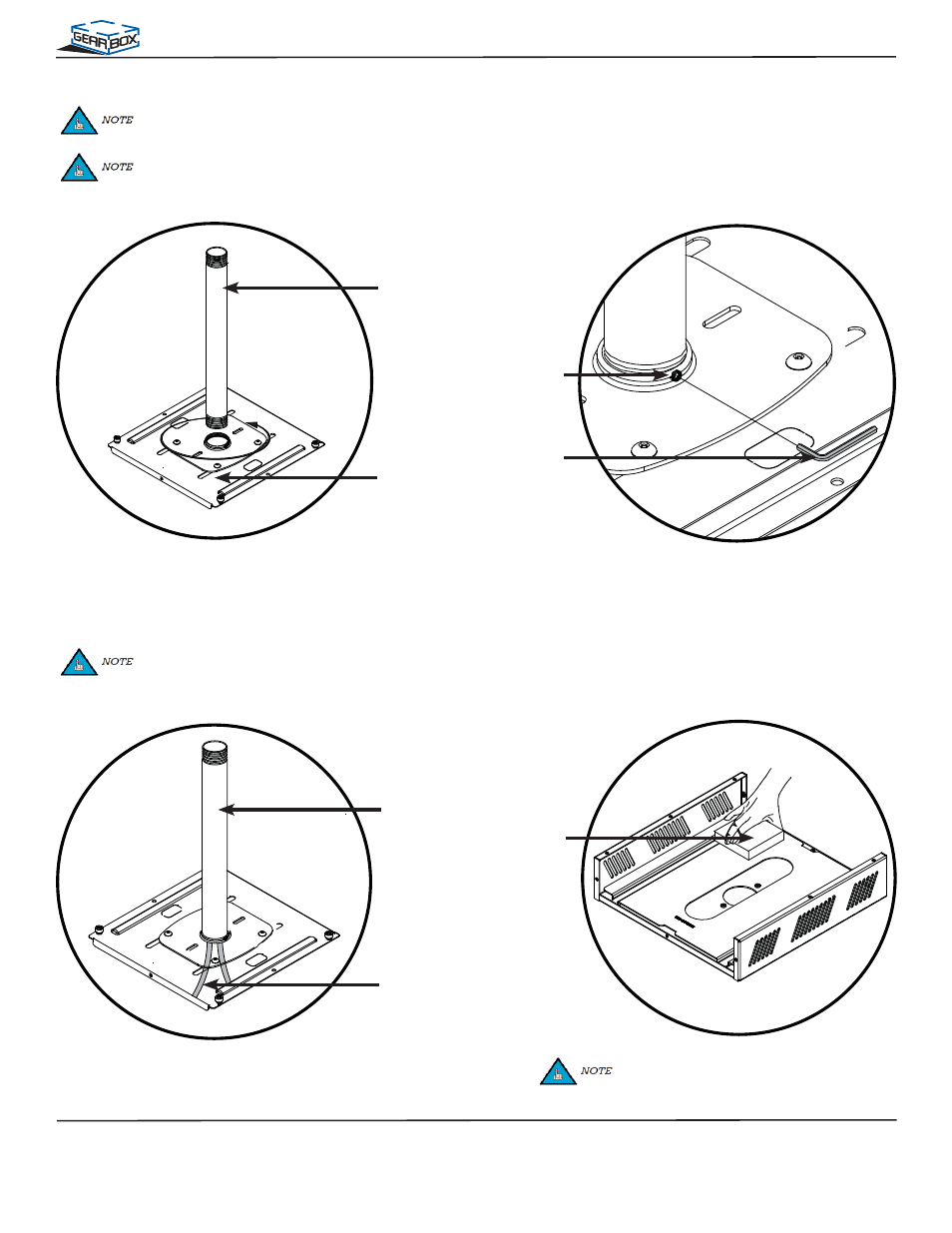

Step 1. Determine where the GB-PIPE1 will be
located.
Step 2. Install your 1-1/2” NPT or ceiling adapter.
Step 3. Attach the upper plate to the NPT or
adapter by rotating counter-clockwise.
Step 4. Use an M3 security wrench to tighten the
set
screw.
Upper Plate
Step 5. At this time, run all existing cables through
the pipe and down through the upper
plate.
The GB-PIPE1 is designed for use with either a standard piece of 1-1/2” NPT pipe or any available ceiling mount adapter
from Premier Mounts. Please refer to the ceiling mount adapter installation instructions when mounting.
GB-PIPE1
Unpack the Gear Box and review any WARNING statements that apply to the installation. Select the desired location for
the GB-PIPE1.
The upper plate must rotate onto the
threads at least four (4) complete
rotations.
1-1/2” NPT
Set Screw
M3 Security
Wrench
Pipe
Cables
At this time, you may pre-install your
electronic components in the equipment
tray.
Electronic
Component
