OVERVIEW
16 User Manual
Method 2
Method 3
To system
To Single Line Telephone
Note: Ensure the cords
are inserted in the grooves
to prevent damage to the
connectors, for both wall
mounting and desktop
positioning.

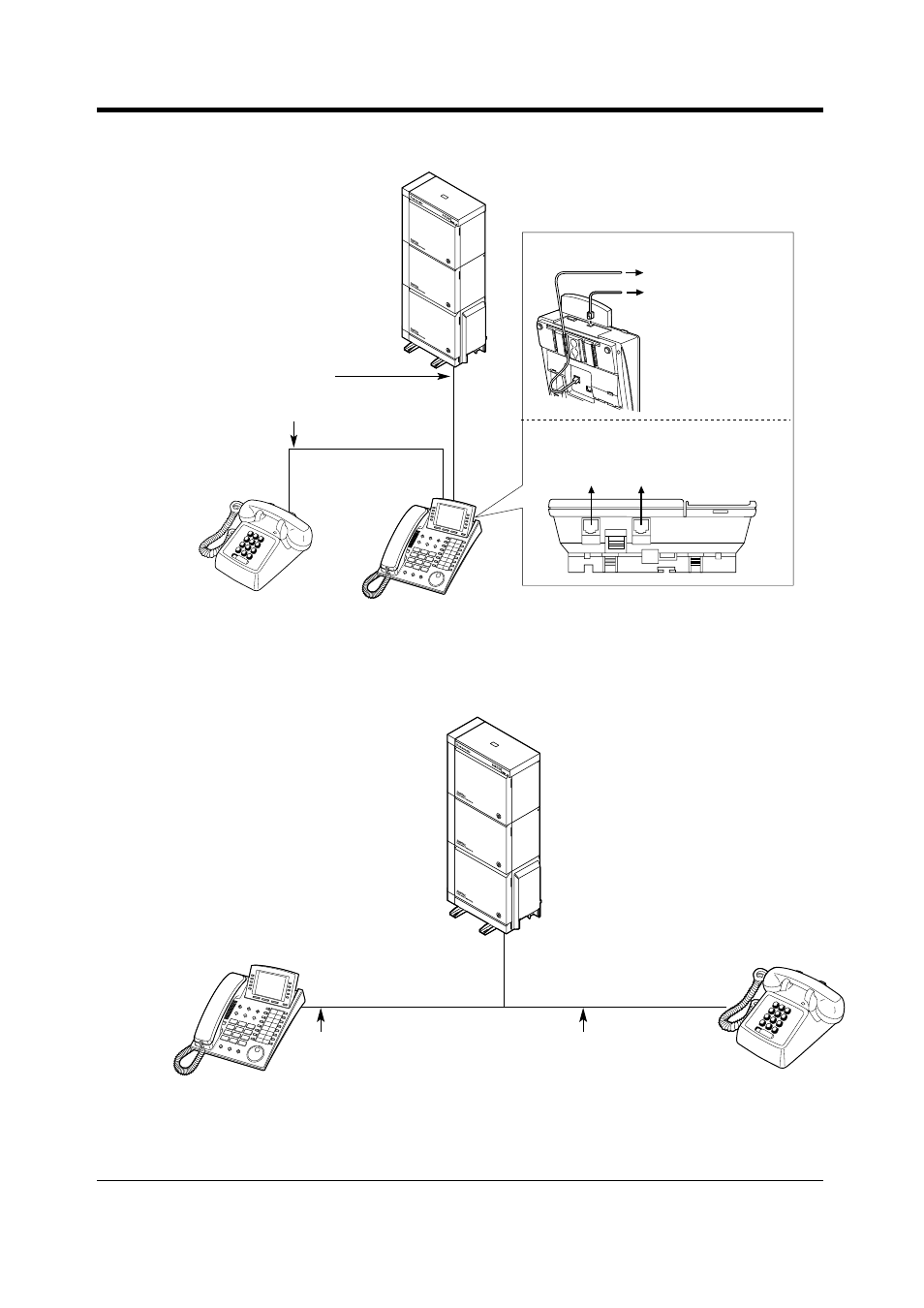

4-conductor wiring cord
Connect pins "T," "R," "D1" and "D2."
2-conductor wiring cord
Connect pins "T" and "R."
Digital Proprietary Telephone (DPT) Single Line Telephone (SLT)
To Single Line
Telephone
To system
TO TEL TO EMSS
LCD ADJ PUSH
DIGIT AL SU PER HYB RID SY STE M RU N OFF LI NE ALA RM
Digital Proprietary Telephone (DPT) Single Line Telephone (SLT)
4-conductor wiring cord
Connect pins
" T, " " R, " " D1 "
and " D2. "
2-conductor wiring cord
Connect pins
" T " and " R. "
DIG ITA L S UP ER HY BR ID S YS TEM RU N ALA RM
