Chapter 3: Installation and Setup
42 MMG Installation, Setup, and Operations Guide
Preset 4: HD 420 IBBP
1.
To setup a codec, go to Edit menu > Control Panel and select Site Tab.
2. Double click Codec Presets.
3. Select the “MPEG-2 MP@HL (M2V)” codec as starting point. Click the two plus symbols on
the right to duplicate this preset.

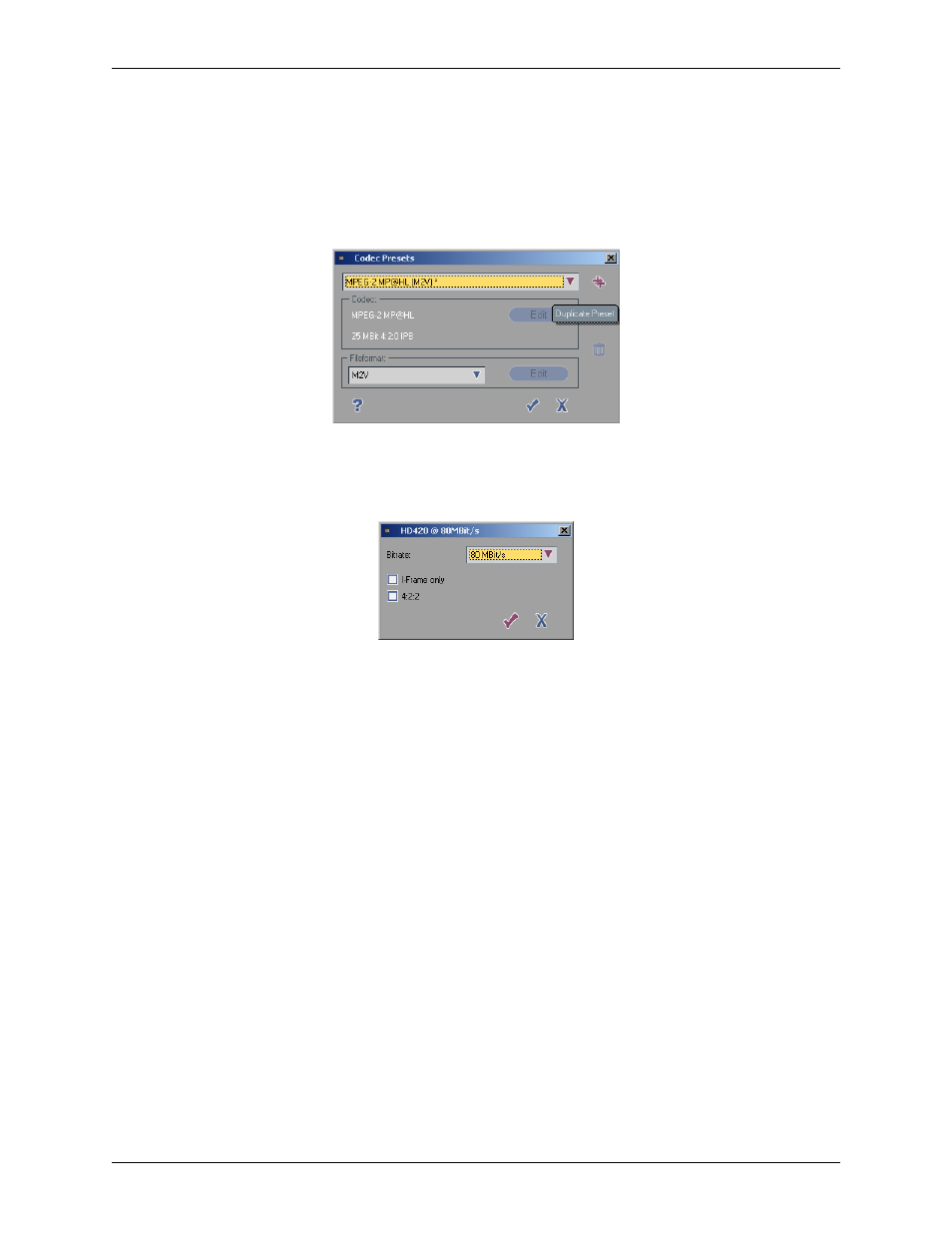

Figure 3-44: Codec Presets for HD
4. Type a descriptive name for the preset you want to create in the textfield. For this example,
enter HD420 @ 80MBit/s.
Figure 3-45: HD 420 settings
5. To edit the Codec Properties click the top Edit button. In Codec Properties select a maximum
Bitrate of 80 MBit/s. Keep the I-Frame only and 4:2:2 box unchecked. Click the accept icon.
6. Click OK in the Fuse Sequence dialog that appears (see Figure 3-39 on page 38).
Setup the Codec Preset 4 in the timeline
1.
To setup a Codec Preset right click a empty space of the timeline and select Timeline
properties... from the drop-down menu (see Figure 3-34 on page 35).
