Chapter 3: Installation and Setup
38 MMG Installation, Setup, and Operations Guide
4. Click OK in the Fuse Sequence dialog that appears. As the fuse begins, your screen should
look something like this (Figure 3-39):

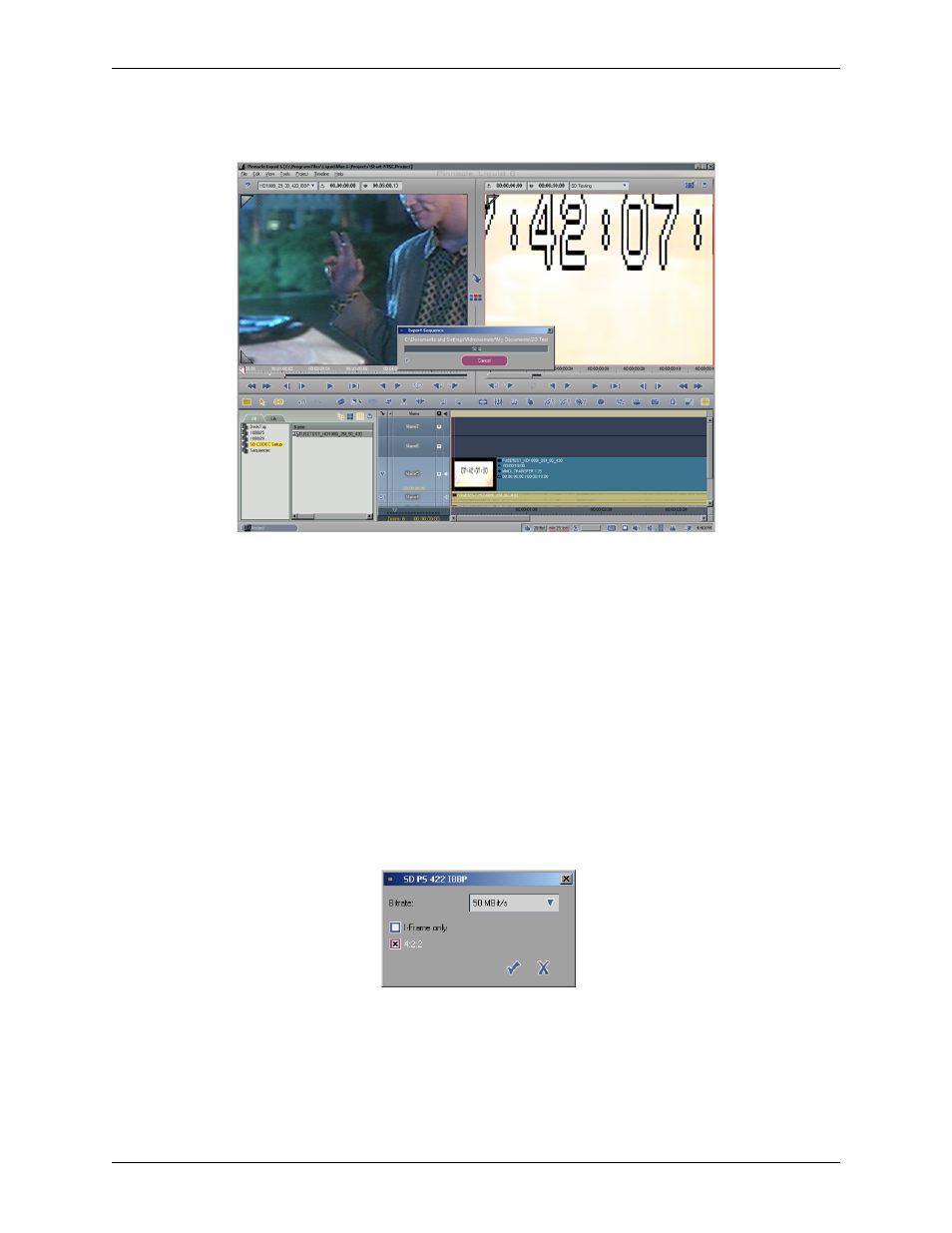

Figure 3-39: Fuse Sequence Progress
Preset 2: SD PS S422 IBBP and SD PS E422 IBBP
1.
To setup a codec, go to Edit menu > Control Panel and select Site Tab.
2. Double click Codec Presets.
3. Select the “MPEG-2 MP@HL (M2V)” codec as starting point. Click the two plus symbols on
the right to duplicate this preset (see Figure 3-32 on page 35).
4. Type a descriptive name for the preset you want to create in the textfield. For this example
enter SD PS 422 IBBP.
5. To edit the Codec Properties click the top Edit button. In Codec Properties select a maximum
Bitrate of 50 MBit/s. Keep the I-Frame only unchecked. Check the 4:2:2 checkbox.Click the
accept icon.
.
Figure 3-40: Codec Properties
