The loudspeaker outputs of the mixer/amplifier are 4 Ohms, 8 Ohms, 70V and 100V. C
Co
on
nn
ne
ecctt tth
he
e
llo
ou
ud
dssp
pe
ea
ak
ke
err ssy
ysstte
em
m tto
o a
an
ny
y O
ON
NE
E o
off tth
he
esse
e o
ou
uttp
pu
uttss.. Class 2 wiring may be used.
There are two types of output: 4 Ohm Direct Output;
8 Ohm, 70V, and 100V via Output Transformer
The method of connection differs in each case. Refer to FFiig
gu
urre
e 7
7. If using the transformer
isolated outputs be sure that the Low Cut switch is ON.
Note: Impedance values shown in Figure 7 indicate total loudspeaker system (load) impedance.
M
MM
MA
A8
83
35
52
2 ((112
20
0V
V))

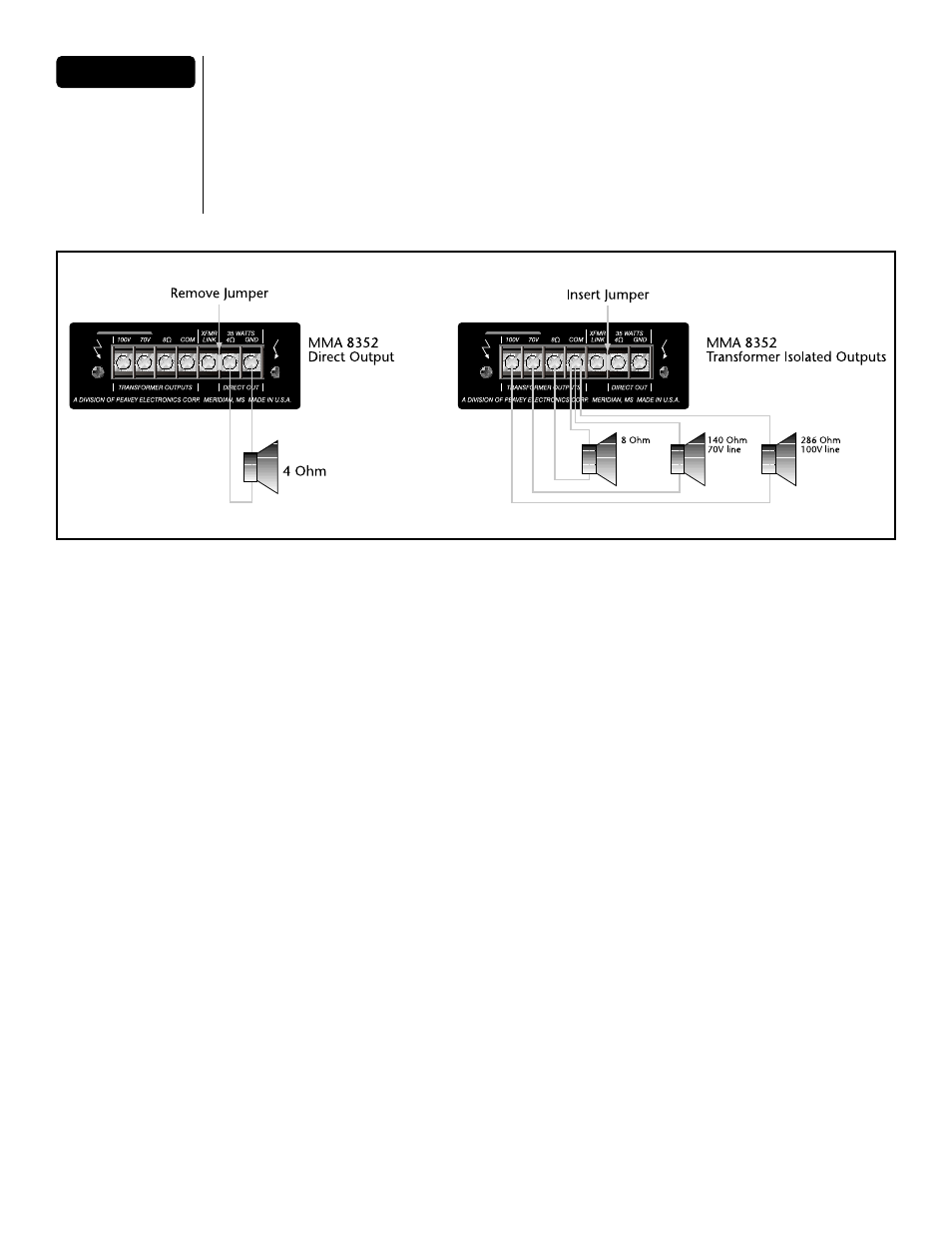

Figure 7
