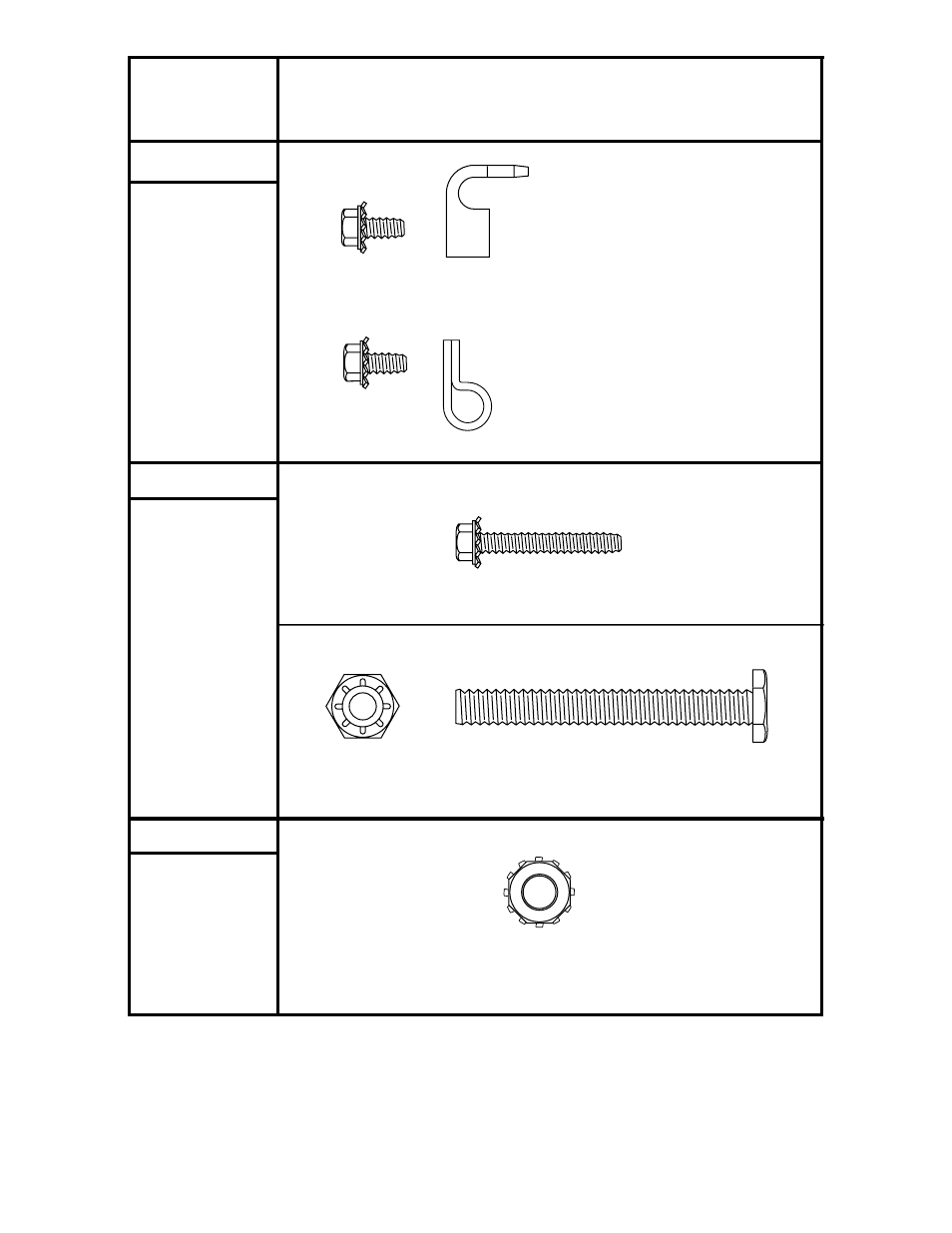

(2) Screws
1/4-20 x 3/8
(1) Hex Washer Head Screw 1/4-20 x 1-1/2
REMOTE
THROTTLE
CONTROL
(If equipped)
TO ENGINE
GROUP "E"
(1) Cable Clip with
#10 x 5/8 Hex Head Screw
(For Briggs Classic & Sprint Engines)
(1) Diecast Clamp with
#10 x 5/8 Hex Head Screw
(For Briggs Quantum Engines)
NOTE: Tecumseh engines have clamp and screw preassembled to engine.
ASSEMBLY
LOCATION
(1) Hex Head Screw
1/4-20 x 2-1/8
(1) Locknut
1/4-20
CONTROL
CABLE(S)
TO
UPPER
HANDLE
GROUP "F"
For models with remote throttle control
For models without remote throttle control
GROUP "G"
STARTER
ROPE GUIDE
TO HANDLE
(1) Keps Locknut
1/4-20
PARTS BAG CONTENTS (continued)
