13

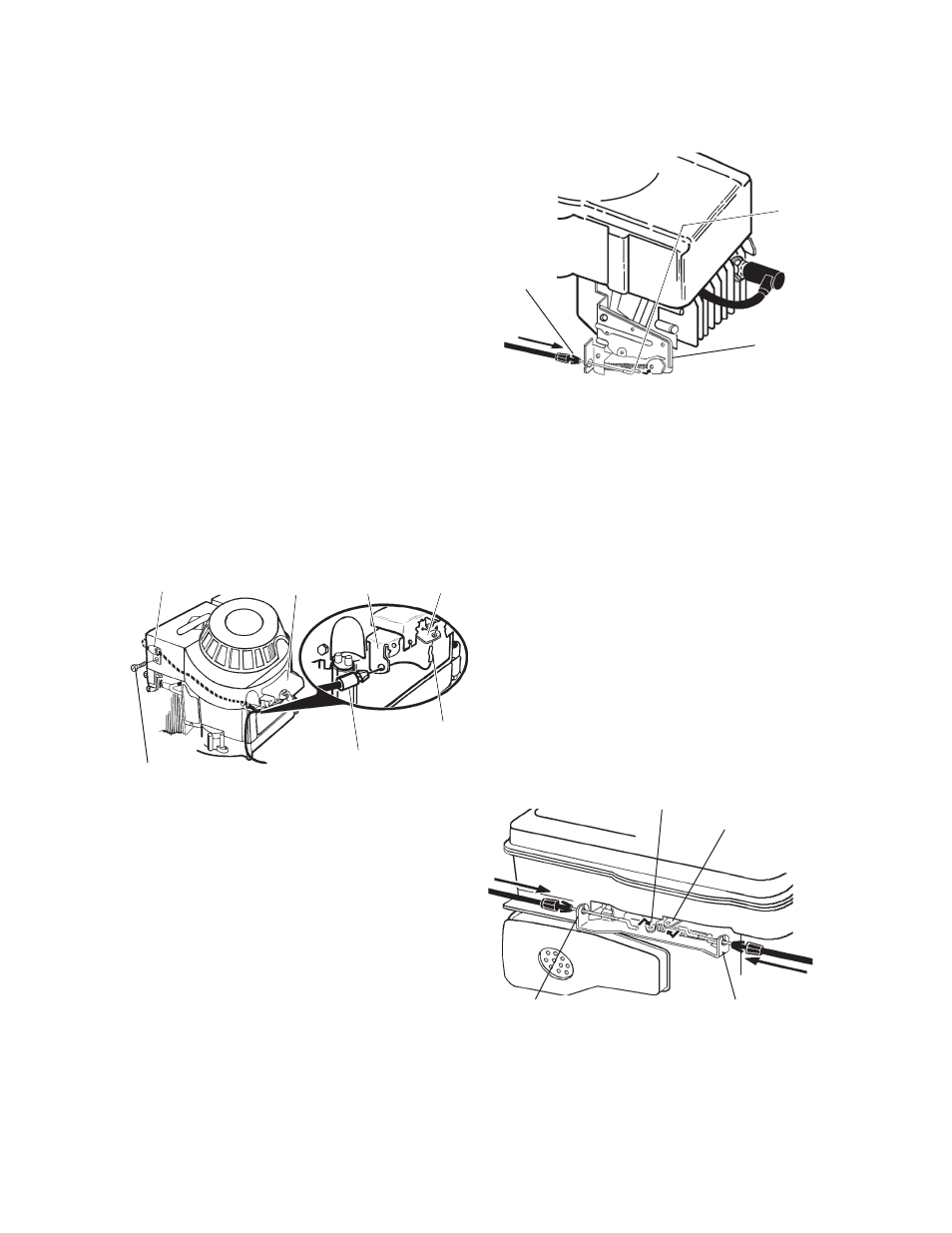

ASSEMBLE ENGINE ZONE
CONTROL CABLE TO
ENGINE
(NO HARDWARE REQUIRED)
Follow the appropriate instructions below for
the brand or type of engine on your mower.
MODELS WITH BRIGGS & STRATTON
CLASSIC OR SPRINT ENGINE
Cable attaches under brake arm cov er, which
is op po site spark plug end of engine.
• Straighten cable and fi nd the end with
the small plastic fi tting.
• Hook the “Z” bend fi tting on inner wire of
cable into hole in brake arm of engine.
• Align the tapered end of the plastic fi tting
with the hole in mounting brack et and
push in until fi tting snaps into place.
• Route cable below crossbar portion of
lower handle and up to upper handle
control bar.
• Hook “Z” bend fi tting on inner wire into
hole in control bar (See “ASSEMBLE
CABLES TO UPPER HANDLE” in this
manual).
MODELS WITH TECUMSEH ENGINE
• Straighten cable and fi nd the end with
the small ta pered plastic fi tting.
• Hook the “Z” bend fi tting on inner wire of
cable into hole as shown.
• Align the tapered end of the plastic fi tting
with the hole in the mounting bracket
and push in until fi tting snaps into place.
• Route cable under crossbar portion of
lower handle and up to upper handle
control bar.
Mounting
bracket
Small
plastic
fi tting
“Z”
Fitting
Hex head screw #10 x 5/8
Engine
cable clip
Small plastic fi tting
Brake
arm
Mounting
bracket Brake arm
cover
"Z" Fitting
MODELS WITH BRIGGS & STRATTON
QUANTUM ENGINES
• Hook the “Z” bend fi tting on inner wire
of cable (end with tapered plastic fi tting)
into hole in brake lever of engine. Cor-
rect brake lever to use is de ter mined by
position of spark plug on your mower
- forward or rearward.
• Position the tapered plastic fi tting into
the mounting brack et on engine. Snap
fi tting into place.
• Route cable under crossbar portion of
lower handle and up to upper handle
control bar.
• Hook “Z” bend fi tting on inner wire into
hole in control bar (See “ASSEMBLE
CABLES TO UPPER HANDLE”).
Brake lever (rearward spark plug)
Mounting bracket
(forward spark plug)
Mounting bracket
(rear ward spark plug)
Brake lever
(forward spark
plug)
• Hook “Z” bend fi tting on inner wire into
hole in control bar (See “ASSEMBLE
CABLES TO UPPER HANDLE” in this
manual).
