12

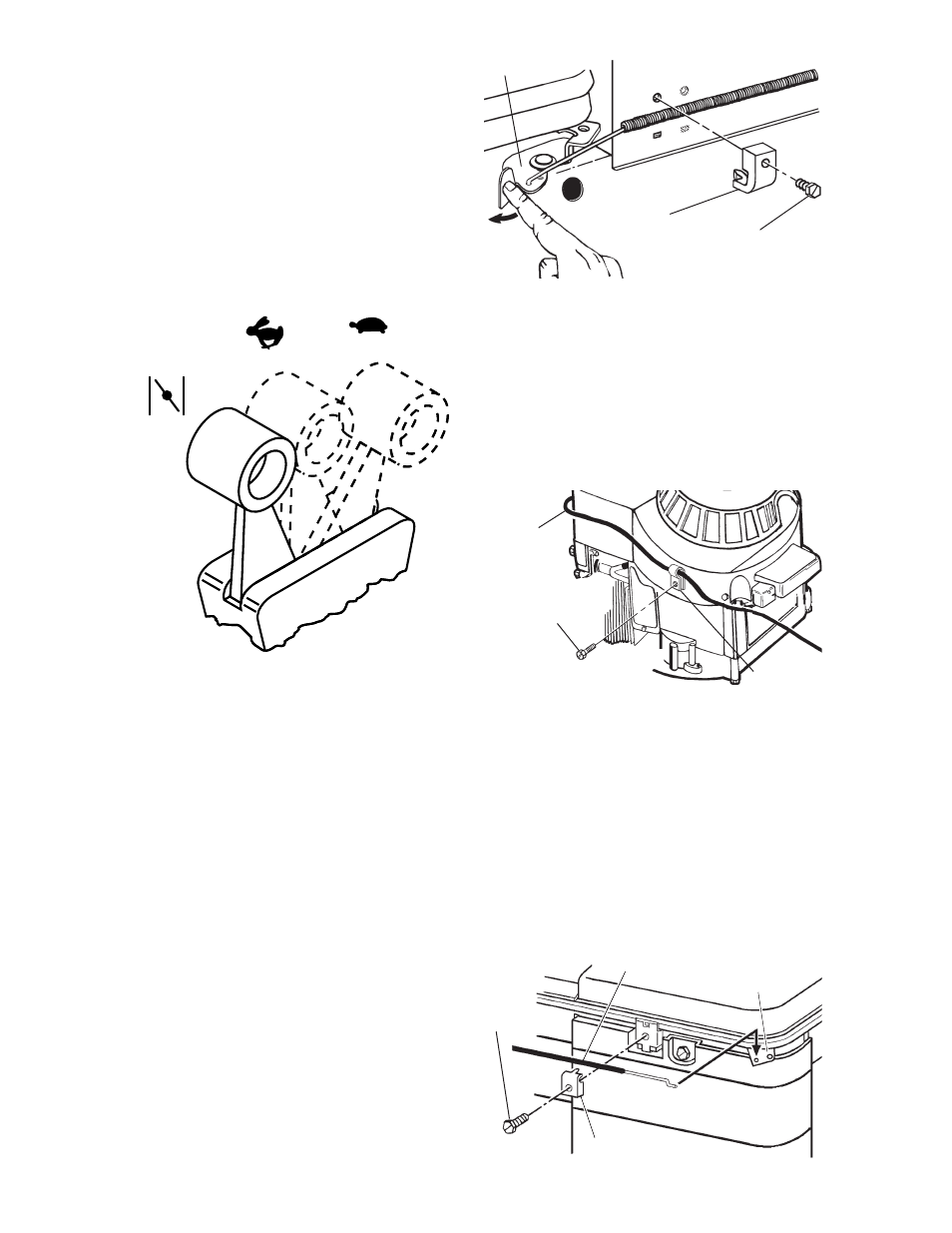

ASSEMBLE REMOTE
THROTTLE CONTROL TO
ENGINE (ON MODELS SO
EQUIPPED)
(USE HARDWARE GROUP “E”)
NOTE: If your lawn mower does not have
a remote throttle control, go on to
“ASSEMBLE ENGINE ZONE CONTROL
CABLE TO ENGINE”.
• First, move lever on remote throttle
control to the CHOKE (if equipped) or
FAST/START position.
CHOKE
FAST / START
Determine the manufacturer and brand or
type engine on your lawn mower and fol-
low the appropriate in struc tions that follow.
MODELS WITH BRIGGS & STRATTON
CLASSIC OR SPRINT AND MODELS
WITH TECUMSEH ENGINES:
NOTE: Tecumseh engines have cable
mounting clamp and screw preassembled
on engine.
• At en gine carburetor, insert wire “Z”
bend of throttle control into hole of
speed lever (use inner hole on Briggs &
Stratton engine).
• (Briggs & Stratton only) Assemble di-
ecast clamp and #10 x 5/8 screw loosely
to engine.
• Position throttle cable under clamp and
push cable towards speed lever until speed
lever touches boss. Hold cable at this po-
sition and tighten clamp screw securely.
MODELS WITH BRIGGS & STRATTON
QUANTUM ENGINES:
• Slide throttle lever on engine to CHOKE
position (away from spark plug). Push
gently beyond fi rst stop to lock in detent
(CHOKE position).
• Insert wire “Z” bend of throttle cable into
throttle lever hole from top side.
• Secure throttle cable to engine with
diecast clamp and #10 x 5/8 hex head
screw and tighten securely.
(BRIGGS & STRATTON ENGINE SHOWN)
(Clamp and Screw are preassembled on
Tecumseh engines)
BRIGGS & STRATTON CLASSIC AND
SPRINT EN GINES:
• Attach throttle cable to side of en
gine
housing with cable clip and #10 x 5/8 hex
washer head screw. Tight en securely.
Diecast
clamp
#10 x 5/8
Hex head screw
Speed lever
Cable clip
Throttle
cable
#10 x 5/8
Hex head screw
Throttle
lever Hex
Head
Screw
#10 x 5/8
Diecast clamp
Throttle cable
