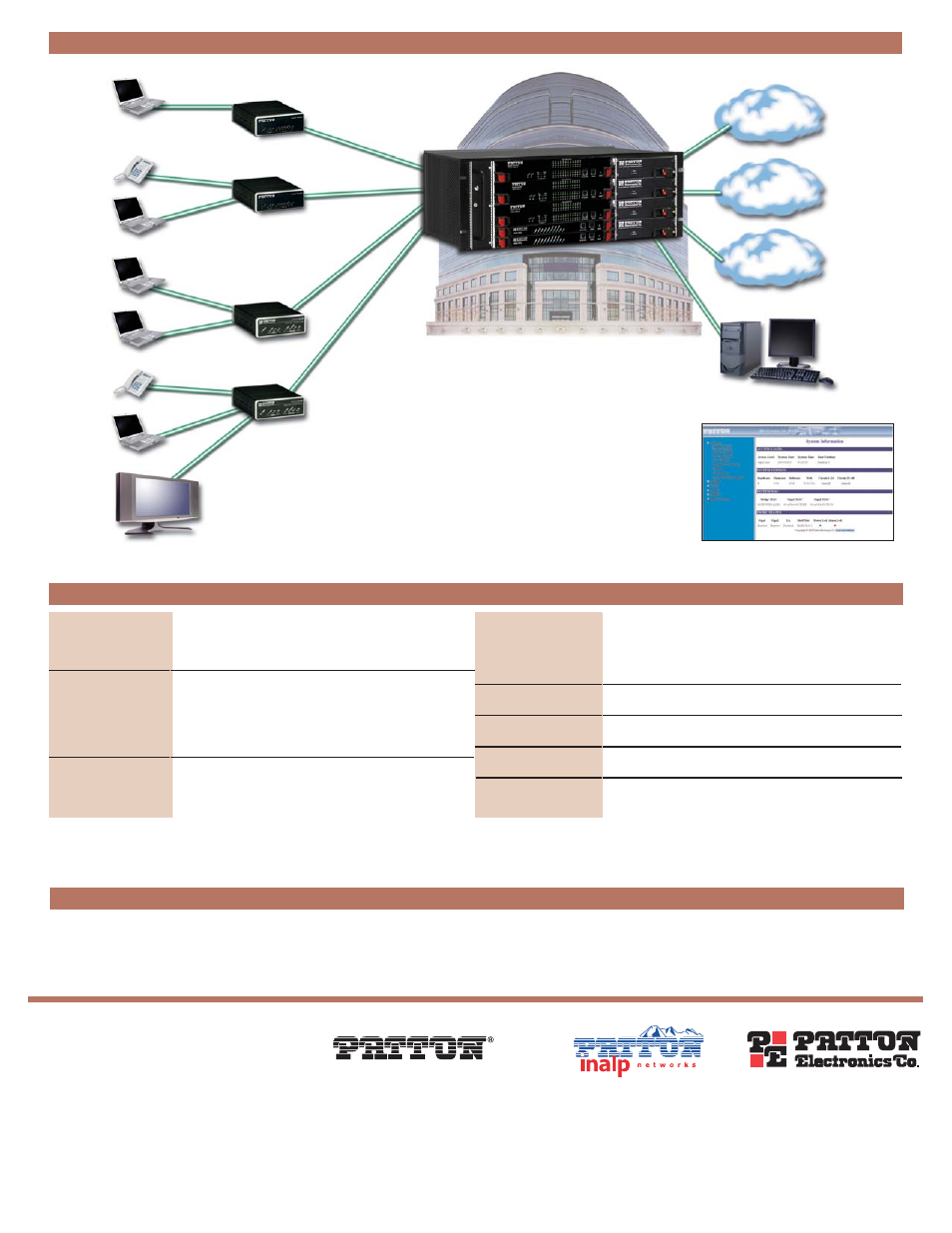

The Extreme FullPipe™—configured with 3101RC cards—provides
144 ADSL2/2+ links in a 4U chassis. Whether delivering triple-play
services or Internet access, the 3101RC is interoperable with Patton
3101 and 3102 ADSL2/2+ CPE as well as with third-party solutions.
ATM/Ethernet
Management
Video
Internet
VoIP
ATM/Ethernet
ATM/Ethernet
ATM/Ethernet
ADSL2/2+ QoS Router
ADSL2/2+ QoS Router
ADSL2/2+ Modem
ADSL2/2+ Router
Central Office
07MD3101RC-DS3
Why use our 3101RC?
Patton is a registered trademark and ForeFront is a
trademark of Patton Electronics Company in the
United States and other countries.
48 ports configurable as ANSI T1.413i2, G.992.1 (G.DMT)
Annex A/B with UR-2, G.992.2 (G.Lite), G.992.3 (ADSL2)
Annex A/B/L/M, G.992.5 (ADSL2+) Annex A/B/L/M sup-
porting G.997.1 (G.PLOAM) and G.994.1 (G.HandShake)
Two Gigabit Ethernet backplane-facing, auto-negotiating
ports; Two Gigabit Ethernet auto-negotiating rear card
ports with RJ-45 interface; Single Fast Ethernet port for
management. All ports auto-negotiating, full/half duplex
front card; 802.1ad Link Aggregation and LACP; 12 PVCs
per port including per PVC traffic classification
12 PVCs per port including per PVC traffic classification;
RFC 1483/2684; PPPoE forwarding; AAL5 per I.363.5;
Traffic classes: UBC, CBR, VBR-rt, VBR-nrt; UNI 3.1/4.0;
I.610 OA&M with F5 loopback
IEEE 802.1Q including per interface tagging; IEEE 802.1p
priority queuing and re-striping; VLAN stacking or “Q-inQ”;
Spanning Tree (802.1D); RSTP (802.1w); MSTP
(802.1s/Q); IGMP Snooping; MAC address filtering (8 per
VLAN)
HTTP/HTTPS, SNMP, Telnet Ethernet, RS-232 Console Port,
SYSLOG Client, Software upgrade via TFTP
Configurable alarms; Remote SNMP Traps; Front Panel
LEDs
UL-1950; CSA per 22.2-No. 950; FCC Part 15 Class A; CE
Mark; EN55022; EN61000; RoHS Compliant
Operating temperature: 0–60°C (14–104°F)
Humidity: 5–90% non-condensing
ADSL Ports
Ethernet Ports
ATM Support
VLAN & Bridging
Support
Management Service
Alarm Reporting
Compliance
Environment
Specifications
Model Information
3101RC/48A/2GE: ADSL2+ IPDSLAM card with 48 ADSL Ports, two Gigabit Ethernet ports - Annex A
3101RC/48B/2GE: ADSL2+ IPDSLAM card with 48 ADSL Ports, two Gigabit Ethernet ports - Annex B
