Built-in Triple Play Support
QoS
Per PVC traffic classification with shaping
and policing; 802.1p VLAN priority;
ToS/DiffServ stripping and priority queuing
48 ADSL2/2+ Ports
Right size the deployment with the best port-
per-card ratio. Easily scale by adding cards.
Annex M
Additional upstream speeds to 3 Mbps
accommodate symmetric VoIP traffic.
SNMP/HTTP Management
SNMP/HTTP manageable from anywhere in
the world including attached CPE units.
Per-Port Configuration
To facilitate the provisioning and tailoring of
services, ports are independently selectable
to the individual DSL standard and required
port speeds.
ADSL2+ high-bandwidth downstream with
Multicast support, IGMP snooping, and QoS
included.
The Patton Model 3101RC provides up to 48 ADSL2/2+ ports of triple-play access,supporting extended reach and
higher downstream bandwidth up to 24 Mbps, as well as 3 Mbps uplink speeds.
ADSL2+ Triple-Play Access
Model 3101RC
P
atton’s Model 3101RC delivers affordable
ADSL/ADSL2/2+ network access for
triple-play ready ADSL service. The
ADSL2+ IPDSLAM module, together with
Patton’s ForeFront Access Platform, is the pre-
mier solution for fault tolerant Triple-Play
enabled network deployments.
The Model 3101RC offers complete ADSL,
ADSL2 and ADSL2+ support including extend-
ed range operation, enhanced speeds, and
enhanced upstream (Annex M). Each 3101RC
IPDSLAM Module includes all the intelligence
necessary to function as a complete single
card IPDSLAM thereby providing unparalleled
redundancy and fault tolerance in network
deployments. The Model 3101RC includes
redundant 10/100/1000 Ethernet uplink ports
as well as redundant mid-plane connections to
ensure non-stop operation.
The Model 3101RC is designed for triple-play
networks where the reliable delivery of IP
based voice, video and data services depends
on the QoS metrics that are assigned to the
flows. Consequently, the Model 3101RC sup-
ports the mapping of ATM CBR/UBR/VBR traf-
fic types and cell rates to IEEE 802.1p/Q VLAN
priority classes. VLAN stacking or “Q-in-Q” is
likewise supported to ensure transparent
extension of subscriber VLAN networks. In
order to maximize WAN bandwidth, IGMP
Snooping is supported to ensure that IP
Multicast traffic is detected and forwarded
accordingly.
V isit www.patton.com for more information.
D S L A C C E S S P R O D U C T

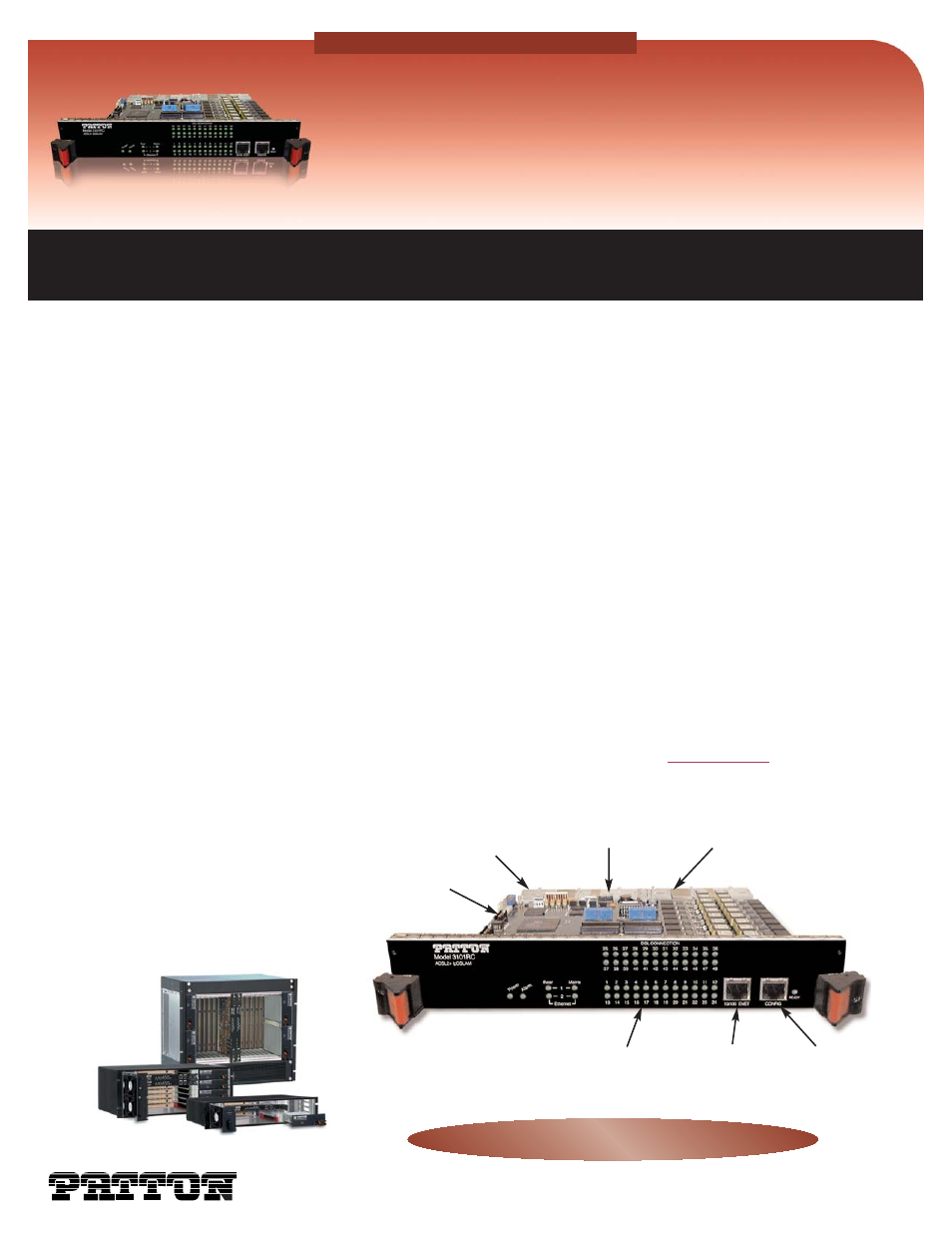

10/100 Ethernet
management port
Hardware-based QoS
CONFIG
(Console port)
DSL port LEDs
SNMP/RMON support
Management Features
Configurable alarm reporting with SNMP
Traps, RMON for performance monitoring,
Dying Gasp support on ADSL ports, I.610
OA&M, F5 loopback support, G.PLOAM,
embedded HTTPS web server for easy con-
figuration via a browser.
Built-in web
configuration
Dual 10/100/1000
Gigabit Ethernet ports
3101RC Triple Play IPDSLAM
