Connecting power, Grounding the model sn4400-ac and dc units, Grounding the model sn4400—ac and dc units – Patton electronic SmartNode 4400 User Manual

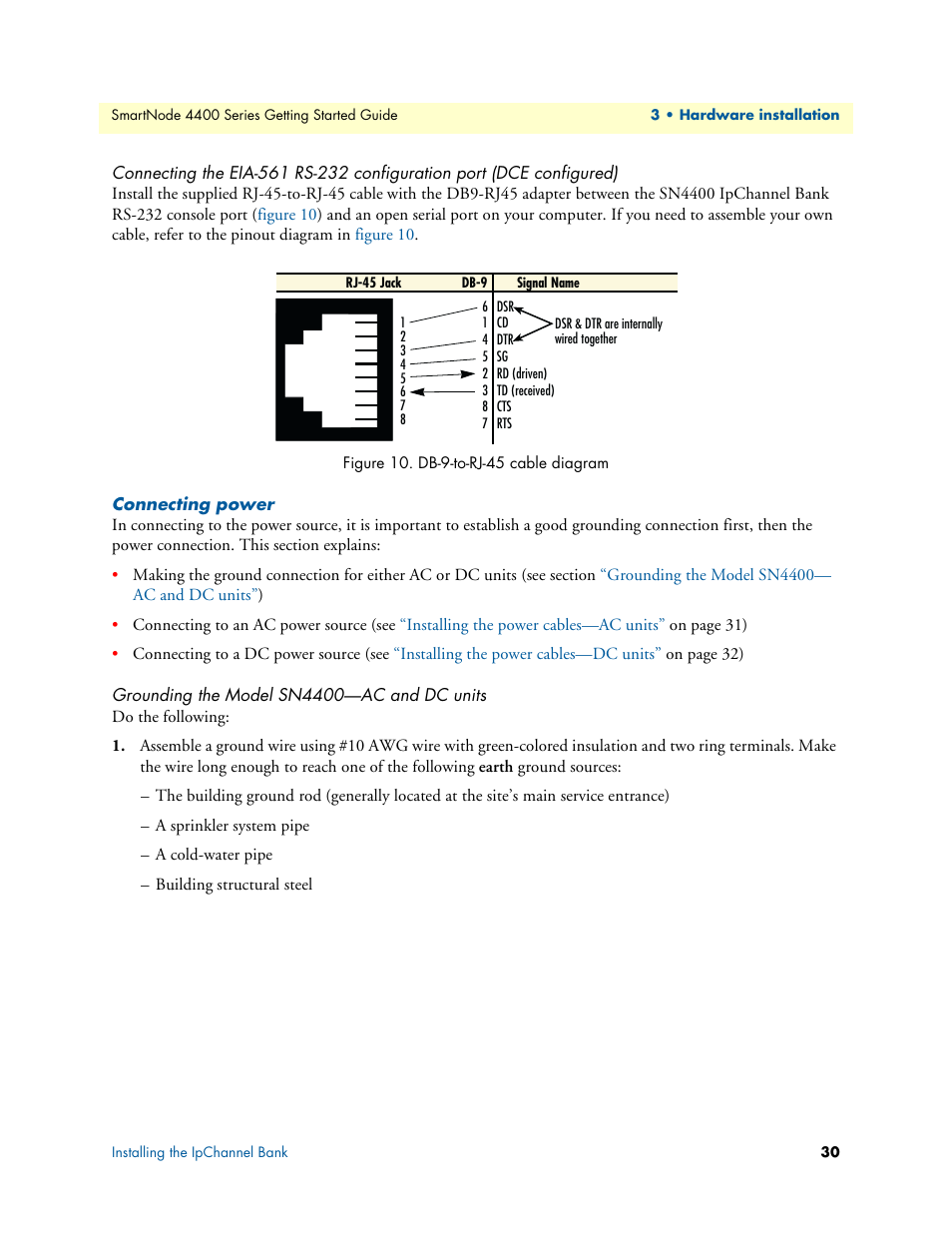

Page 30: Db-9-to-rj-45 cable diagram, Connecting the eia-561 rs-232 configuration port, Dce configured)
