Panasonic NV-HS830 - Manual (Page 3)

3

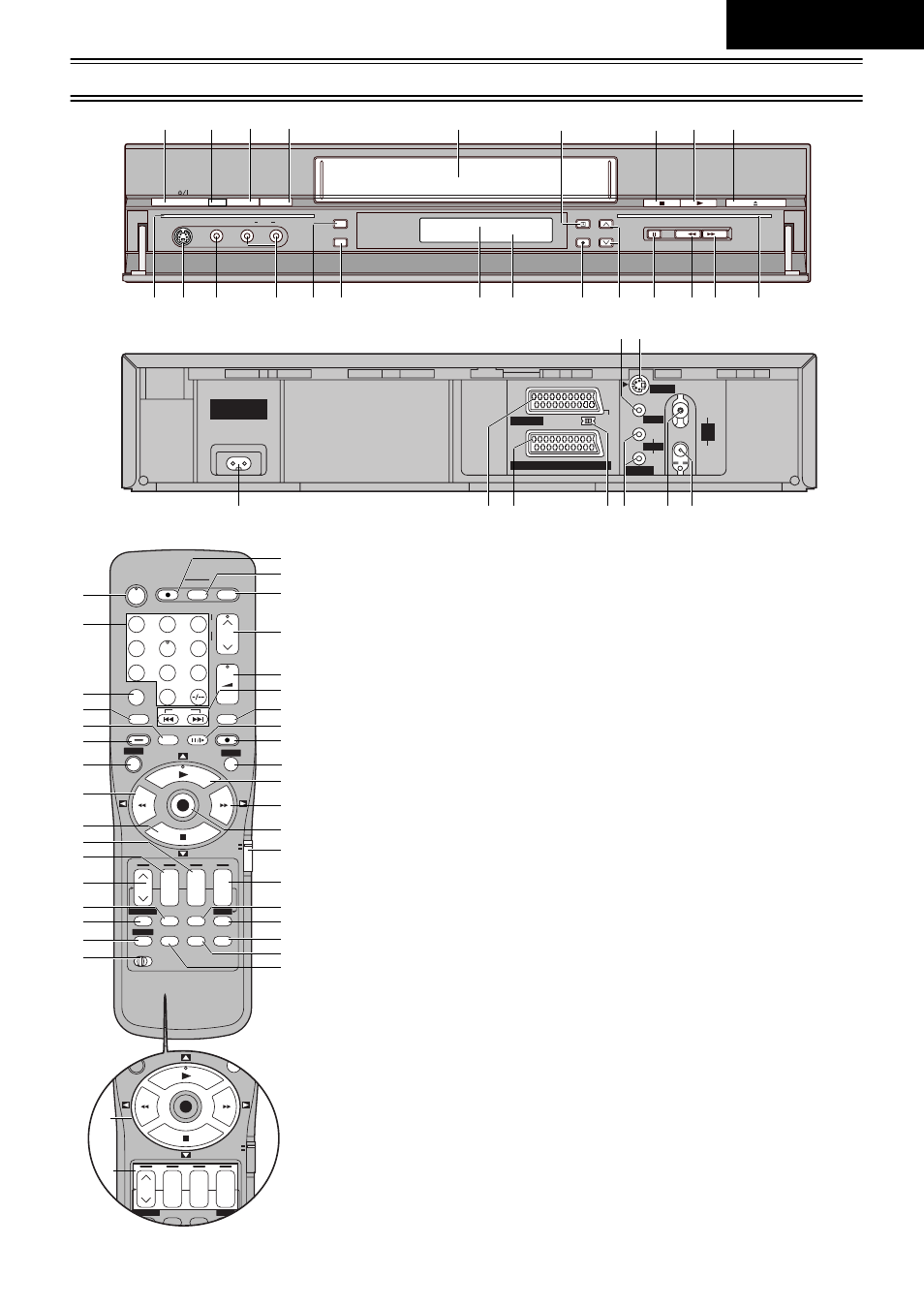

Controls and Components
(1) [VCR-ON/OFF]/[TV-ON/OFF]
(2) [Numeric]
(3) [AV/INPUT SELECT]
(4) [LIBRARY/SEARCH]
(5) [REPLAY]
(6) [STILL ALBUM]
(7) [MENU]
(8) [Rewind]
(9) [Stop]
(10) [ON]
(11) [DATE]
(12) [CH]
(13) [CANCEL]
(14) [PROG./CHECK]
(15) [I-TIMER]
(16) [VCR 1/2] (
#p. 21)
(For NV-HS880 Series)
(17) [AUDIO]
(18) [OSD/DISPLAY]
(19) [RESET]
To reset the tape counter (elapsed time)
to [0:00.00].
• The tape counter is automatically reset
to [0:00.00] when a video cassette is
inserted.
(20) [TIMER]
(21) [SP/LP/EP]
(22) [OFF]
(23) [VCR/TV]
(24) [OK]
(25) [Fast Forward]
(26) [Play]
(27) [EXIT]
(28) [REC]
(29) [Pause/Slow]
(30) [SV/V+] ([ShowView])
It may be displayed [ShowView] on some
Remote Controls.
(31) [INDEX]
(32) [VOLUME]
(33) [Channel]/[TRACKING/V-LOCK]
(34) [TV/TEXT]
(35) [AV LINK/TV ASPECT]
(36) [DIRECT TV REC]
(37) [Teletext]
(38) [Cursor]
(39) Infra-red Remote Control Receiver
window
(40) [3D DNR]
(For NV-HS880 Series)
(41) Cassette compartment
(42) [EJECT]
(43) Illumination strip
(For NV-HS880 Series)
(44) S-VIDEO IN socket (AV3)
(45) VIDEO IN socket (AV3)
(46) AUDIO IN socket (AV3)
(47) [A.DUB]
(For NV-HS880 Series)
(48) [EXT LINK]
(49) CVC (CVC Super) indicator
(50) VCR display
(51) [REC/OTR]
(52) [Pause/Still]
(53) VIDEO OUT socket
(54) S-VIDEO OUT socket
(55) AC Input socket
(56) AV1 21-pin Scart socket
(57) AV2 21-pin Scart socket
(58) [NORMAL/S-VIDEO OUT/SORTIE]
(59) AUDIO OUT socket
(60) RF IN socket
(61) RF OUT socket
VCR
1 2
1 2 3
7 8
0
9
4 5 6
INPUT SELECT
Í
DIRECT TV REC TV ASPECT
AV LINK
TV / TEXT
TRACKING/V-LOCK
VOLUME
STILL ALBUM REPLAY REC
VCR
DATE
CANCEL
AUDIO OSD/DISPLAY RESET
SP/LP/EP
r
s
r
s
r
s
ON OFF
TV
SV/V +
AV
+
–
+
–
MENU EXIT
OK
PROG. / CHECK TIMER
I-TIMER
Á
LIBRARY/SEARCH INDEX
1
2
3
4
5
6
7
8
9
:
;
=
>
?
@
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
T
S
<
0
U
V
STILL ALBUM REPLAY REC
VCR
DATE
CANCEL SP/LP/EP
r
s
r
s
r
s
ON OFF
TV
SV/V +
AV –
MENU EXIT
OK
PROG. / CHECK TIMER
Á
LIBRARY/SEARCH INDEX
EJECT
CVC
A.DUB
AV3 IN L MONO AUDIO VIDEO 4 S-VIDEO R
TIMER REC
REC/OTR EXT LINK / 6 / 6
INTELLIGENT TIMER 3D DNR
I 8 d Q c a b ` _ ^ ]
1 X ? Y W D 9 J Z
\ [ [
e f
g h i j k l m
IN/
ENT
L/G
R/D
OUT/
SORTIE
VIDEO
S-VIDEO
AV1 (TV) S-VIDEO
OUT/
SORTIE
NORMAL
AV2 (DECODER/DECODEUR/EXT)
AC IN~
SECTEUR~
AUDIO
RF/
ANT
OUT/SORTIE
ENGLISH
