Front panel controls – Panasonic SC-AK62 User Manual
Page 10
Before using
10
RQT5769

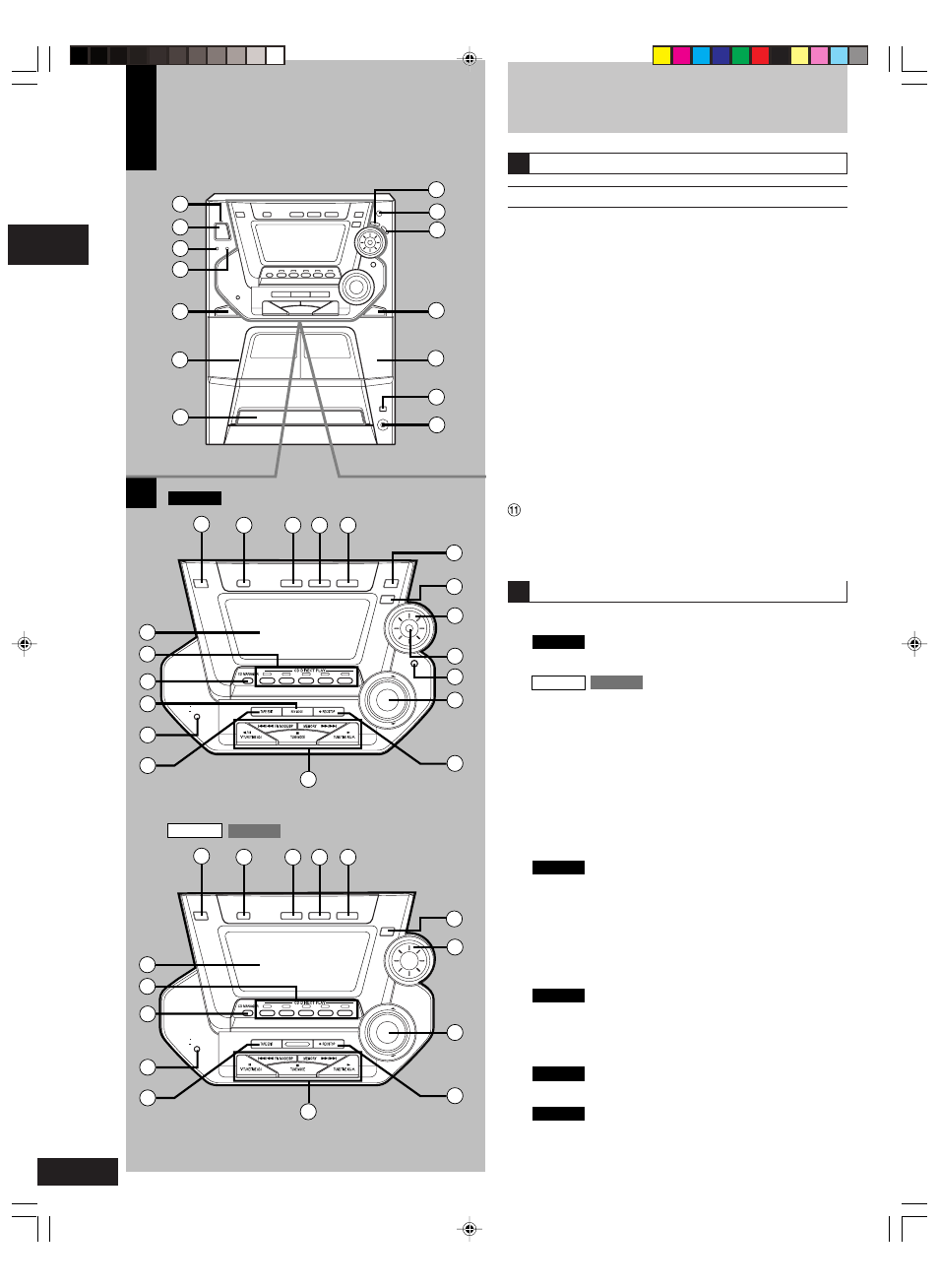

Front panel controls
Main unit
No.
Name
Ref. page
1 AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC power
supply.
2 Standby/on switch (f/I, POWER) ............................. 13
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
3 Play timer/record timer button
(rPLAY/rREC) ......................................................... 33
4 Clock/timer button (CLOCK/TIMER) ............ 13, 33, 34
5 Deck 1 open button (c DECK 1 OPEN) .................. 21
6 Deck 1 cassette holder ..............................................21
7 Disc tray
8 DOLBY PRO LOGIC on/off button (p PL) .............. 31
9 6-channel input button (6CH INPUT) ................. 30, 35
! Surround on/off button (SURROUND) ..................... 32
Deck 2 open button (c DECK 2 OPEN) .................. 21
# Deck 2 cassette holder ..............................................21
$ CD open/close button (c OPEN/CLOSE) ................ 17
% Headphone jack (PHONES) ...................................... 35
Center console
& Remote control signal sensor ................................... 9
(
SC-AK77
AUX 1/2 button (AUX 1/2) .......................................... 35
SC-AK66
SC-AK62
AUX button (AUX) ...................................................... 35
) Tuner/band select button (TUNER, BAND) ............. 14
~ Tape/deck select button (TAPE, DECK 1/2) ............ 21
+ CD button (CD) ...........................................................20
, Display
- Disc direct play buttons and indicators
(CD 1 ~ CD 5) ............................................................. 17
. CD manager button
(CD MANAGER) ......................................................... 20
/
SC-AK77
only
SC
Reverse mode select button (REV MODE) .............. 21
: Display select/demonstration button
(-DISPLAY/–DEMO) ............................................. 12, 35
; Tape edit button (TAPE EDIT) .................................. 23
< Basic operating buttons
Functions change according to the source.
=
SC-AK77
only
Super 3D AI button (SUPER 3D AI) ......................... 28
> Super sound EQ button (SUPER SOUND EQ) ........ 27
? Jog control (SOUND EQ) ........................................... 27
@
SC-AK77
only
Joy stick (SOUND EQ) ............................................... 28
[
SC-AK77
only
Super woofer on/off button (S.WOOFER) ............... 27
\ Volume control (VOL) ................................................ 14
] Recording start/stop button (a REC/STOP) ............ 24
A
B
A
B
DISPLAY/
DEMO
AUX
CD
SOUND EQ
SUPER SOUND EQ
BAND
TUNER
DECK 1/2
TAPE
VOL
DOWN
UP
CD 1
CD 2
CD 3
CD 4
CD 5
DISPLAY/
DEMO
AUX 1/2
CD
SUPER 3D AI
SOUND EQ
S.WOOFER
SUPER SOUND EQ
BAND
TUNER
DECK 1/2
TAPE
VOL
DOWN
UP
CD 1
CD 2
CD 3
CD 4
CD 5
12
3
1
2
4
5
6
7
13
8
14
9
10
11
15
16
17
18
19
26
27
28
29
30
23
24
25
31
32
33
21
20
22
15
16
17
18
19
26
28
29
24
25
32
33
21
20
22
SC-AK77
SC-AK66
SC-AK62
