9

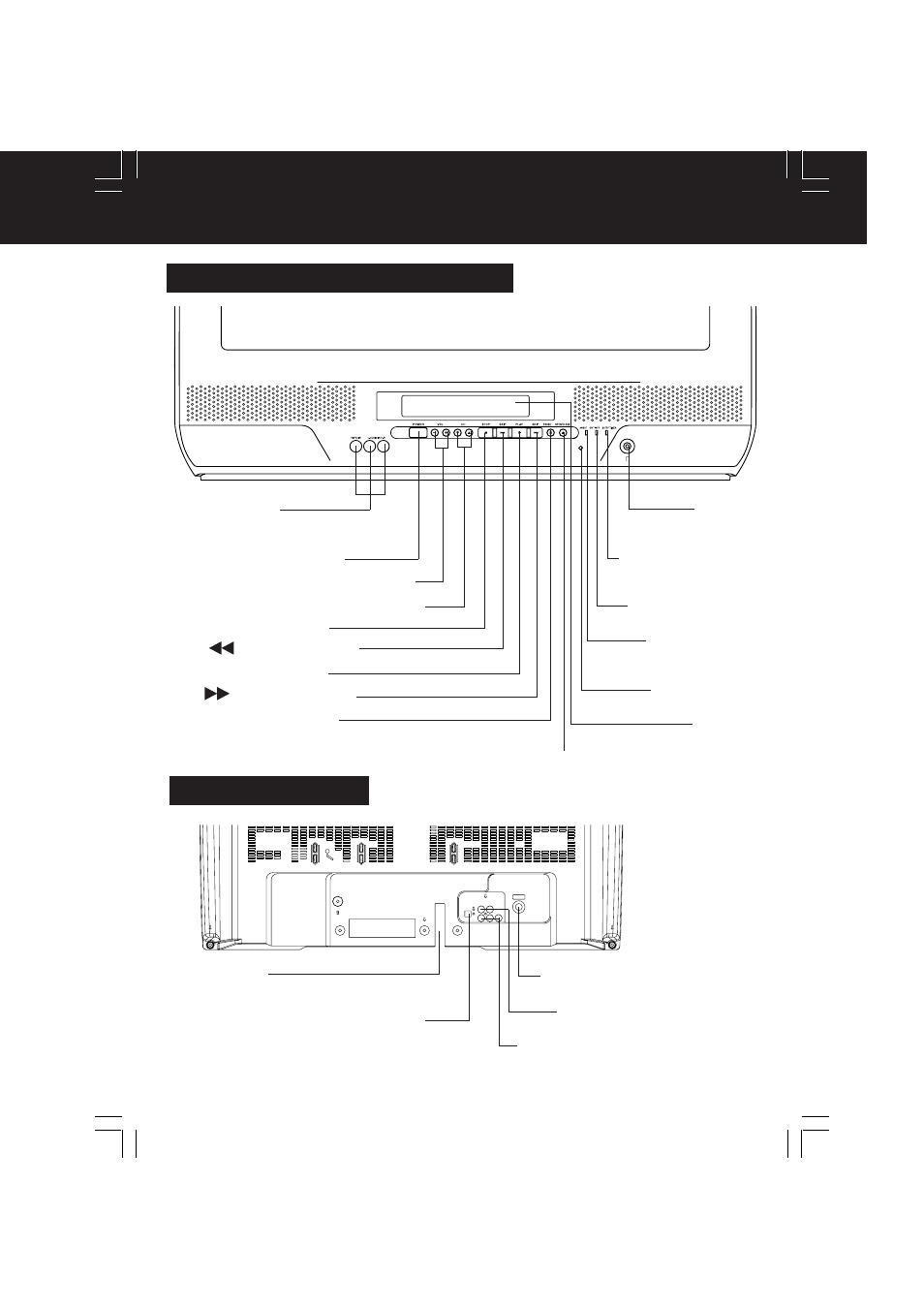

Front View of the Unit and Indicators
AUDIO/VIDEO IN
Connector 2 (LINE 2)
Connect from other component.
POWER (See previous page.)
VOLUME UP/DOWN (See previous page.)
CHANNEL UP/DOWN (See previous page.)
STOP (See previous page.)
SKIP | (See previous page.)
PLAY (See previous page.)
SKIP | (See previous page.)
PAUSE (See previous page.)
PHONES
Connect an earphone
or headphones.
SLEEP TIMER Indicator
Lights when the
Sleep-Timer is set.
ON TIMER Indicator
Lights when the On-Timer is set.
ANGLE Indicator
Lights when a scene recorded
at a different angle is detected.
Remote Sensor
Aim the remote to this point.
Disc Tray
Insert a disc to this tray.
OPEN/CLOSE (See previous page.)
Rear View of the unit
AC Power Plug
When plugged into an AC outlet, the unit consumes
3.5 W of electric power in OFF condition.
Optical Digital Audio Output Connector
Connect to a Dolby Digital decoder or dts decoder.
For details, see page 15.
VHF/UHF Antenna Input Terminal
In from your Antenna or Cable.
AUDIO/VIDEO OUT Connector
Connect to other component.
AUDIO/VIDEO IN Connector 1 (LINE 1)
Connect from other component.
* PV-27D52
Rear shown.
