8
Connections
When the unit is turned on after connecting the aerial cable and the mains lead, Plug in Auto Tuning starts automatically.
(NV-VP31GN only)

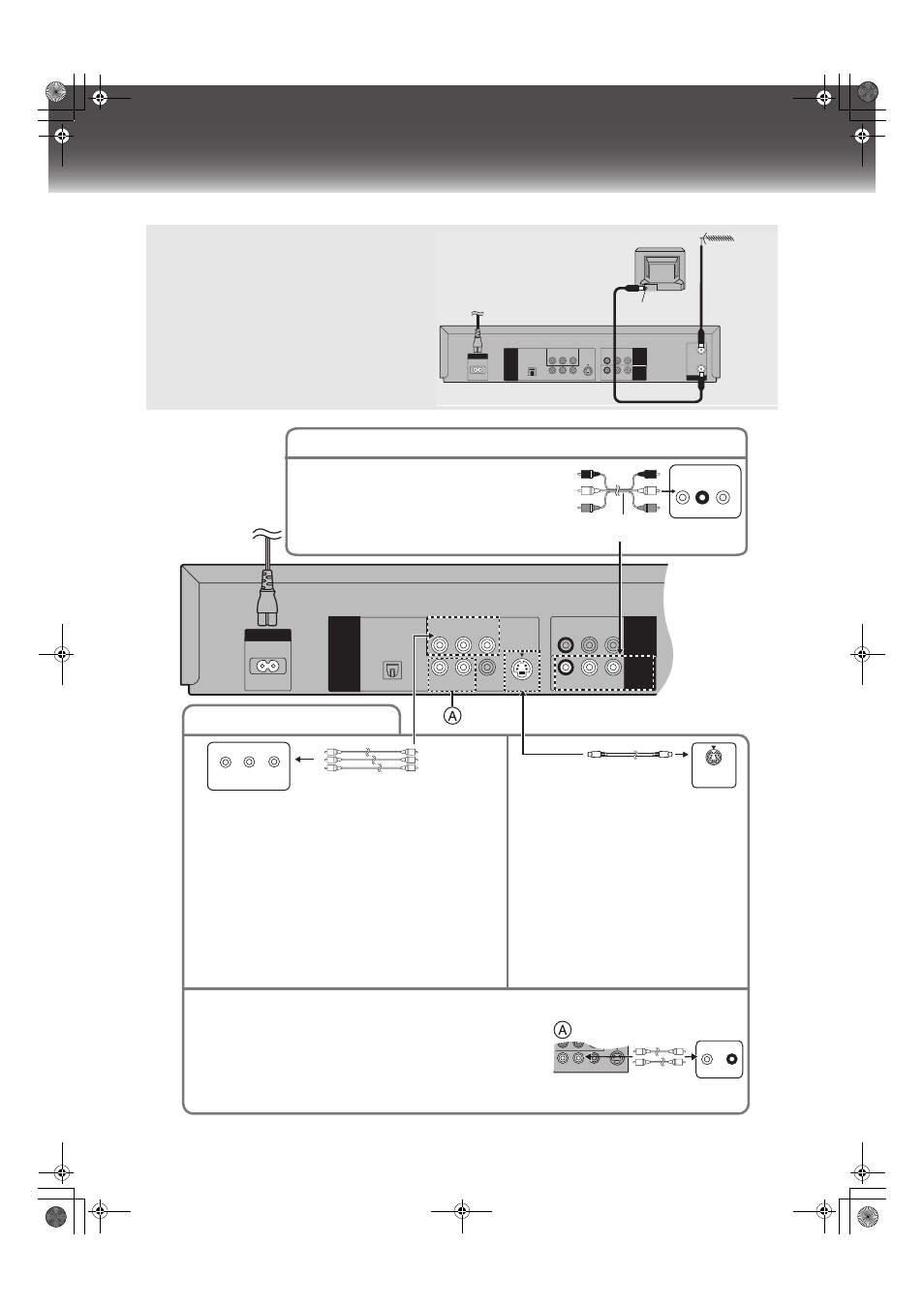

Basic Connections
The following connections are required to record the video
cassette and play back the video cassette/discs through the
TV.
≥Refer to the TV’s operating instructions.
≥Turn the TV off and disconnect its AC mains lead.
R-AUDIO-L VIDEO OPTICAL RF
AC IN ~
D I G I TA L AU D I O (PCM/BITSTREAM)
R-AUDIO-L VIDEO S VIDEO
IN
OUT
COMPONENT VIDEO (NTSC 480P/480I PAL 576I) Y P B P R R-AUDIO-L VIDEO
VHS/DVD
OUT
DVD OUT
AV1 IN
TV Set (Not supplied)
Aerial
(Not supplied)
Aerial Connector To mains supply
R-AUDIO-L VIDEO OPTICAL
AC IN ~
D I G I TA L AU D I O
(PCM/BITSTREAM)
R-AUDIO-L VIDEO S VIDEO
COMPONENT VIDEO
(NTSC 480P/480I PAL 576I)
Y P B P R
R-AUDIO-L VIDEO
VHS/DVD
OUT
DVD OUT
AV1 IN
R-AUDIO-L VIDEO S VIDEO
( 80 / 80 )
AUDIO
IN
L R
VIDEO
IN
COMPONENT
VIDEO IN
Y P B P R
AUDIO IN
L R
IN
S VIDEO
Television
Audio/Video Output Sockets
COMPONENT VIDEO terminal (progressive out)
These terminals can be used for either interlace or progressive
output and provide a clearer picture than the S VIDEO terminal.
Connection using these terminals outputs the colour difference
signals (P
B /P R ) and luminance signal (Y) separately in order to
achieve high fidelity in reproducing colours.
≥The description of the component video input terminals depends
on the TV or monitor (e.g. Y/P B /P R , Y/B-Y/R-Y, Y/C B /C R ). Connect
to terminals of the same colour.
¬ To enjoy progressive video lpage 13
Video cable (Not supplied)
Television
For better video from DVD
≥These connections are for the DVD section only.
Carry out the Basic Connections described above to view video from
the VHS section.
≥When making this connection, ensure that you connect the audio cables
(not supplied) to the corresponding audio input terminals on the TV.
≥You may need to change the video-input mode on the TV to view video from
the VHS and DVD sections. Read your TV’s operating instructions for
details.
S video cable (Not supplied)
S VIDEO terminal
The S VIDEO terminal achieves a more vivid
picture than the VIDEO OUT terminal by
separating the chrominance (C) and luminance
(Y) signals (Actual results depend on the TV).
≥Connect to a different terminal group (e.g.,
“VIDEO 2”) than that you used for the
connection through this unit’s VHS/DVD OUT
terminal. Picture from the VHS section will not
appear when you use the same group input
terminal connections because the S video
terminal input takes precedence.
Television
≥Set the RF output channel of the unit to “ss” (RF OFF)
( lpage 11).
≥Connect audio/video cables directly to your TV. The video
signals on DVDs and video tapes have copyright
protection. The video may not be shown correctly if you
connect through an A/V selector or other equipment.
Audio/video cable
(Supplied)
Television
Audio cable
(Not supplied)
