MAG-EXT

Page - 6 -

Installation Manual

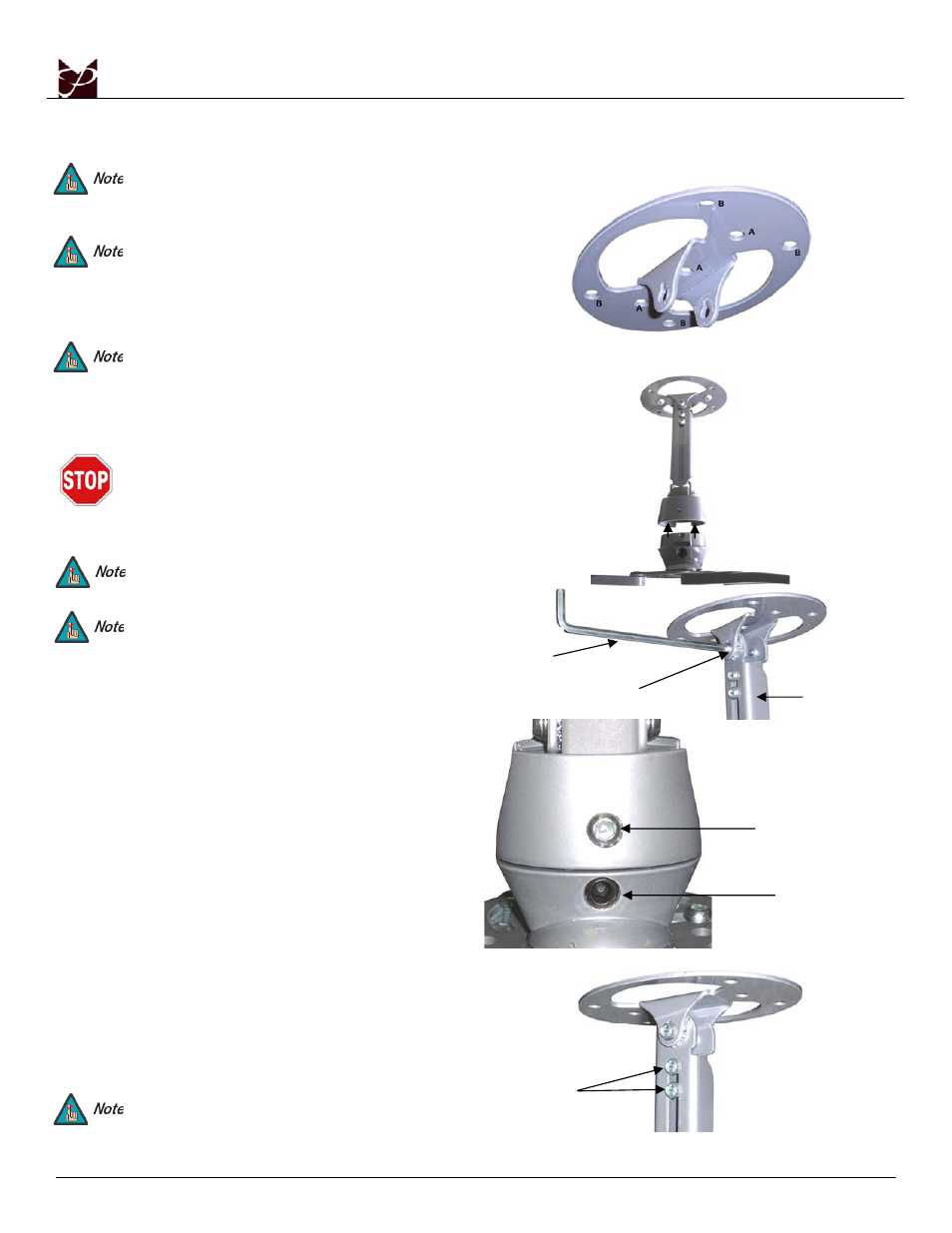

Ceiling Installation

1. Mounting Surfaces

Use a 1/8” drill bit to pre-drill the mounting holes

before securing the wood screws (supplied).

Wood studs: Where denoted with the letter ‘A’, mark these

locations for wood stud installation.

Use a masonry bit to pre-drill the mounting holes in

the concrete surface.

Concrete surface: Where denoted with the letter ‘B’, mark

these locations for concrete installation.

2. Use two (2) #14 x 2” wood screws (supplied) to attach the

ceiling plate to the wooden ceiling stud.

For extra security, attach a third wood screw to the

middle mounting point (A).

3. Slowly raise the projector toward the upper assembly. Once

the projector is close to the upper assembly, MagnaGuide

Technology will pull the lower assembly into the upper

assembly and the locking tab will engage.

THE MAGNETS ARE USED FOR GUIDING

THE UNIT ONLY! PLEASE MAKE SURE

THE TWO (2) M4 X 12MM SCREWS ARE

USED TO SECURE THE PROJECTOR.

4. Attach the two (2) M4 x 12mm security screws and

star washers that are located on each side of the locking tab.

Do not release your hold on the projector until the

upper and lower assemblies are engaged and the

locking tab is in place .

If you choose to use the center mounting point for

added security, detach the adjustable suspension

neck by removing the two (2) M6 x 12mm security

screws, drive the wood screw in place and reattach

the adjustable suspension neck and security screws.

After the projector has been installed, the projector must then be

adjusted. To adjust the projector:

1. Loosen the M5 set screw using the M5 Allen wrench (both

sides).

2. Adjust the projector to the correct position. Firmly grasp the

projector in both hands, and tilt either forward or

backward to adjust the level.

-OR-

Firmly grasp the projector in both hands and rotate side to

side for orientation adjustment.

3. Tighten the M5 set screw on both sides using the M5 Allen

wrench.

Height Adjustment

1. To adjust the height of the Magna Mount, hold the weight

of the projector and loosen the two (2) M6 x 12mm

security screws.

2. Slide the adjustable suspension neck into the desired

position.

3. Retighten the two (2) M6 x 20mm security screws.

Do not release the projector until the M6 screws are

completely tight.

M5 Set Screw

M6 x 20mm

Security

Screws

M4 x 12mm Security

Screw and Star

Washer

M6 x 12mm

Security Screw

M5 Allen

Wrench

Adjustable

Suspension

Neck
