Page 13: Connecting up 02, Chapter 2
Connecting up
02
13
En
Chapter 2
Connecting up

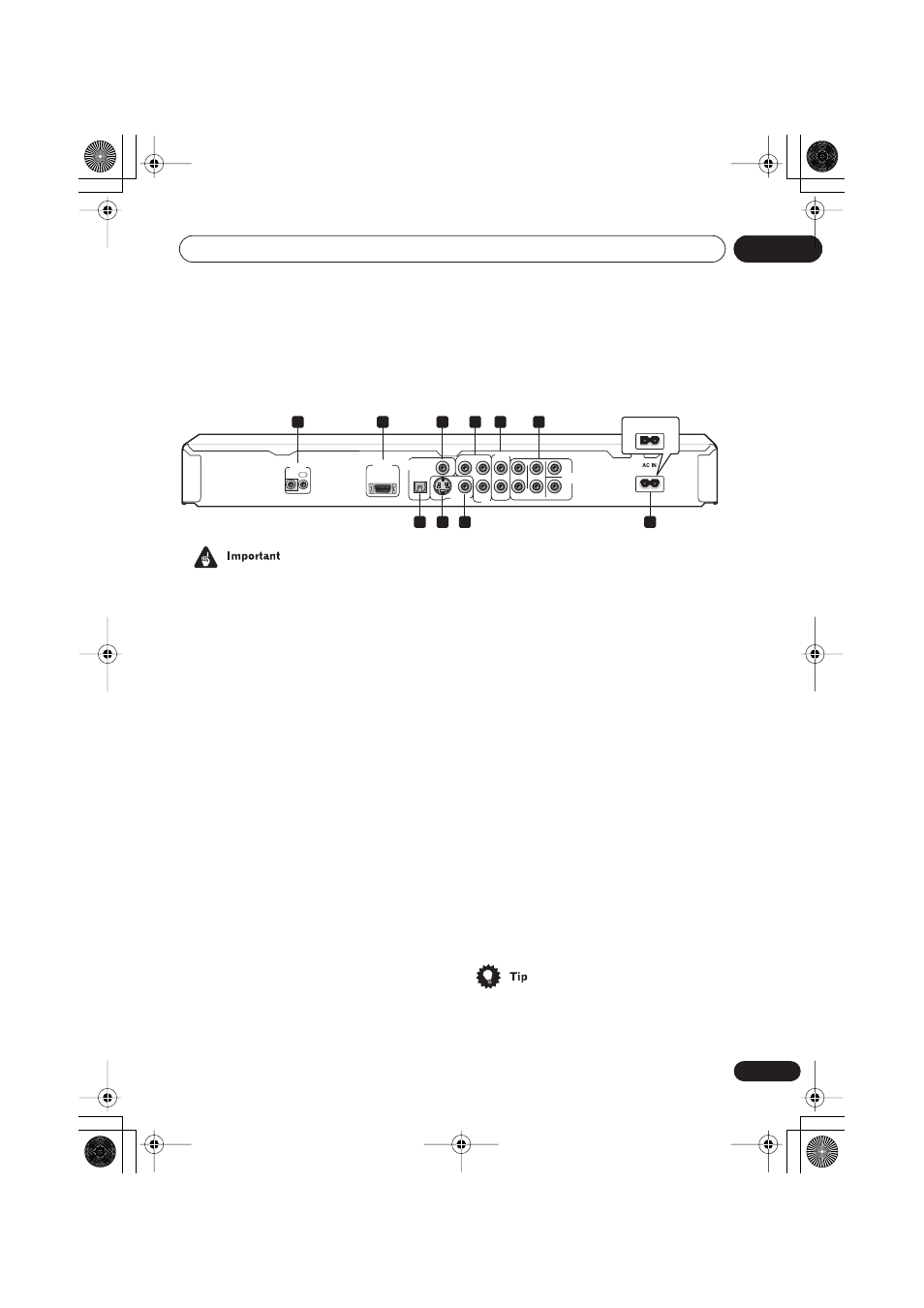

Rear panel connections
• When connecting this player up to your
TV, AV receiver or other components,
make sure that all components are
switched off and unplugged.
1
CONTROL IN / OUT
For passing remote control signals to other
Pioneer components (
page 19
).
2
D1/D2 VIDEO OUT
(DV-667A Taiwanese
model only)
Use to connect this player to a TV with a D
video input (
page 16
).
3
DIGITAL AUDIO OUT – COAXIAL
This is a digital audio output for connection to
a PCM, Dolby Digital, DTS and/or MPEG-
compatible AV receiver that has a coaxial
digital input.
Connect using a commercially available
coaxial digital audio cable.
4
COMPONENT VIDEO OUT
High quality video output for connection to a
TV, monitor or AV receiver that has compo-
nent video inputs.
Connect using a commercially available
three-way component video cable. Be careful
to match the colors of the jacks and cables for
correct connection (
page 16
).
5
AUDIO OUT (2ch)
Two channel analog audio outputs for
connection to your TV, AV receiver or stereo
system (
pages 14
,
17
,
18
).
Use the supplied audio/video cable when
connecting these jacks. Match the colors of
the jacks and cables for correct stereo sound.
6
AUDIO OUT (5.1ch)
Multichannel analog audio outputs for
connection to an AV receiver with multi-
channel inputs (
page 17
).
7
AC IN
Connect the supplied power cord here, then
plug into a power outlet.
8
VIDEO OUT
Standard video output that you can connect
to your TV or AV receiver using the supplied
audio/video cable (
pages 14
,
17
,
18
).
9
S (S-Video output)
S-Video output that you can use instead of the
video output described in
8
above (
page 15
).
10 DIGITAL AUDIO OUT – OPTICAL
This is a digital audio output for connection to
a PCM, Dolby Digital, DTS and/or MPEG
compatible AV receiver that has an optical
digital input. Connect using a commercially
available optical digital audio cable.
Connect using a commercially available
optical digital audio cable (
page 18
).
• You may find it useful to have the manuals
supplied with your other components
handy when connecting this player.
• If you come across any unfamiliar terms
in this section of the manual, turn to the
Glossary
on
page 77
.
S
L
R
L
R
P
R
P
B
Y
COAXIAL
OPTICAL
FRONT SURROND
SUB
WOOFER
CENTER
CONTROL
IN
OUT
D1/D2
VIDEO OUT
DIGITAL
AUDIO OUT
COMPONENT VIDEO OUT
AUDIO OUT(2CH)
AUDIO OUT
(5.1CH)
VIDEO OUT
DV-563A
1
7
8
9
10
2
3
4
5
6
