Troubleshooting
148
If document misfeeding occurs frequently, we suggest you adjust the ADF.
Adjusting the Automatic Document Feeder (ADF)

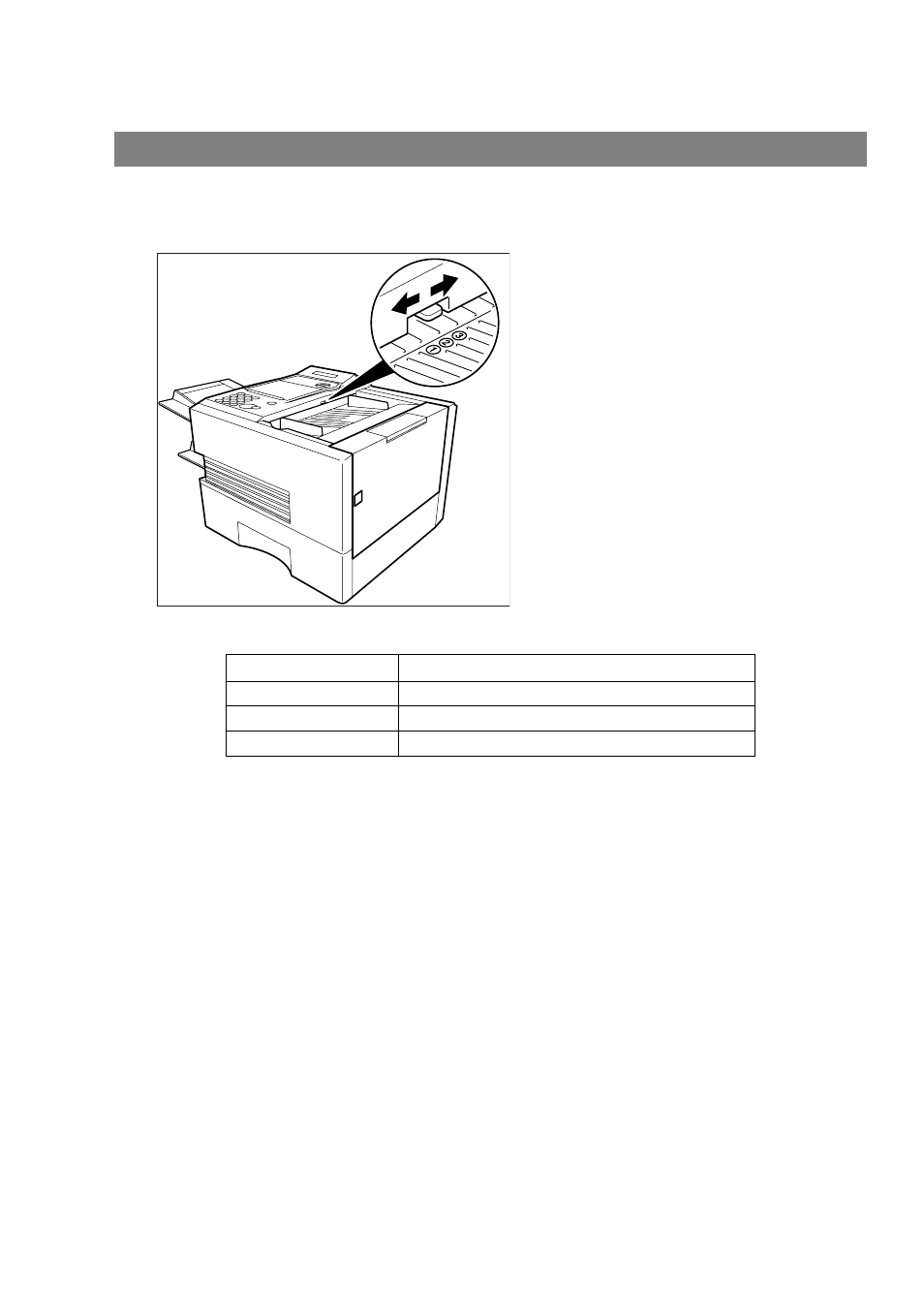

To adjust the ADF
1
Pull the blue Pressure Adjusting Lever upward
and slide it to the desired position depending
on the condition.
Position
Condition
1
To prevent no feed trouble
2
Standard position
3
To prevent multiple feed trouble
