4 IPLink 2603 & 2620 Quick Start Guide

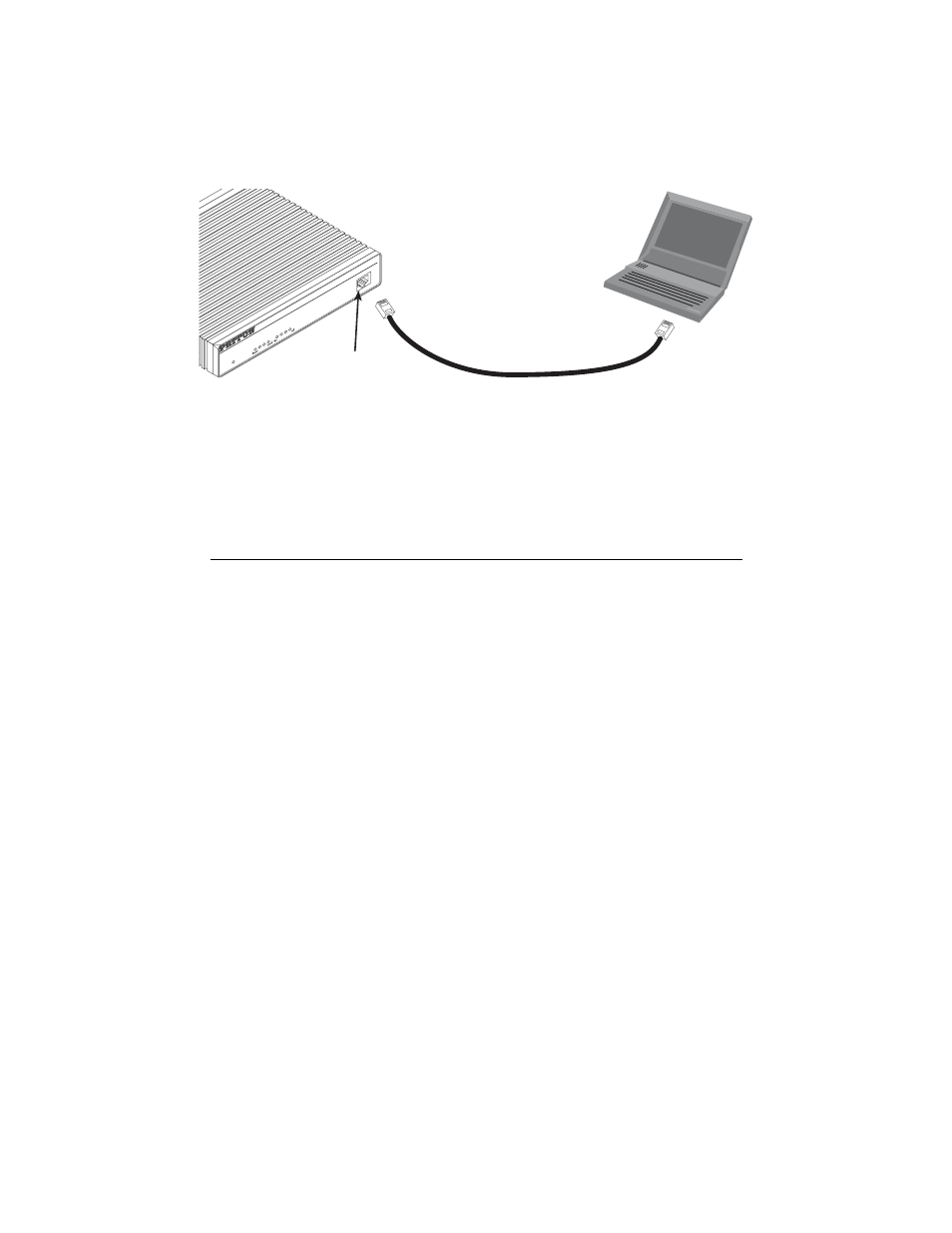

Figure 2. Connecting IPLink to the PC’s serial port
2. Start a HyperTerminal session on the PC using the settings:
9600 bps, 8 data bits, 1 stop bit, no parity, no flow control
3. Log in to the IPLink using the factory-default login and password:
Login: superuser
Password: superuser
Login successful
2.2 Modifying the IP address
1. Display current IP interface settings for the IPLink Ethernet LAN port.
→ → → →
ip list interfaces
IP Interfaces:
ID | Name | IP Address | DHCP | Transport
---|------|----------------|----------|--------------
1 | ip1 | 192.168.200.10 | disabled |
---------------------------------------------- ------
2. Modify the IP address for the LAN port according to your network requirements.
→ → → →
ip set interface ip1 ipaddress 10.10.10.5 255.255.255.0
Note The above IP address ( 10.10.10.5/24) is only an example. You must choose an IP address on the same
subnet as your PC .
3. Verify the new address is correct and save it in system boot memory.
→ → → →
ip list interfaces
→ → → →
system config save
→ → → →
Now you can connect the IPLink to your local IP network and complete the remaining configuration from your
PC using a standard web browser.
Link Frame TD RD
Link 100M Tx Rx
W AN
Ethernet
Power
Console
ipLink Gateway
High Speed W
AN Access Router
Model 2603
Connect to Console port
Serial port
PC with
terminal emulator
