Why use our IPLink Series Routers?
Patton is a registered trademark and IPLink is a trademark of Patton Electronics Company in the
United States and other countries.
T1/E1 WAN Interface
120-Ohm RJ48C and/or
75-Ohm BNC
Ethernet Connection
Single-port 10/100Base-T
switch, auto-sensing,
full/half-duplex operation,
built-in MDI-X
Management
EIA-561 RJ-45 RS-232,
VT-100 CLI, TELNET,
Embedded WEB/HTTP,
SNMP, Logging or SMTP
on events: POST, POST
errors, line/DSL,
PPP/DHCP, IP MPOA
AAL5 and Bridged encap-
sulation RFC 2684 and
RFC 1577 IPoATM.
LLC/VC Mux support.
Protocol
IP (RFC 741), TCP (RFC
793), UDP (RFC 768),
ICMP (RFC 950), ARP
(RFC 826). IP Router with
RIP (RFC 1058), RIPv2
(RFC 2453), Integrated
DHCP Server (RFC 2131).
Selectable IP leases and
MAC/IP pairings. DHCP
relay agent (RFC
2132/RFC 1542) with 8
address pools. DNS
Relay. IGMP v1 and v2.
IP-in-IP (RFC-2003)
encapsulation, Ethernet
Bridging.
NAT/NAPT with integrated
application support,
MultiNat with 1:1 map-
ping, Many:1, Many:Many
mapping, NAT Port/IP
redirection and mapping.
Security
DoS Detection/protection.
Intrusion detection,
Logging of session,
blocking and intrusion
events and Real-Time
alerts, Password protect-
ed system management
with a username/pass-
word for console and vir-
tual terminal, Packet fil-
tering firewall for con-
trolled access to and
from LAN/WAN. Support
for 255 rules in 32 filter
sets. 16 individual con-
nection profiles. Access
list determining up to 5
hosts/networks which are allowed to access man-
agement system
SNMP/HTTP/TELNET
Indicators
12 LEDs: Power, Link,
Loss, Loop, Back-Up
WAN signals; Link, TX,
RX LAN signals
Power Supplies
External or internal uni-
versal 90–260 VAC input
or 48 VDC input.
Compliance
FCC Part 15A, CE Mark,
EMC Directive
89/336/EEC, Low-Voltage
Directive 73/23/EEC,
EN60950, EN55022
(CISPR 22). FCC part 68.
Environment
Temperature: 32–122°F
(0–50°C); Humidity:
5–90%, non-condensing
Dimensions
7.3 x 6.6 x 1.62 in.
(185 x 168 x 41 mm)
Specifications
Model Information
Patton’s IPLink Gateway routers deliver all the advanced features for secure, reli-
able, and high speed Internet data connections. They combine ease-of-use with
powerful data routing to make shared Internet connectivity simple and easy.
With NAT support, the IPLink routers offer convenient and economical
operation by using a single IP address while the integrated DHCP server
automates IP address assignment for connected LAN computers. Security
is standard with built-in firewall and violation alerting features that protect
the network from would-be intruders.
Patton stands behind our products—we are the only company in the industry
offering free configuration support, free technical services, and a minimum
one-year warranty on all our products.

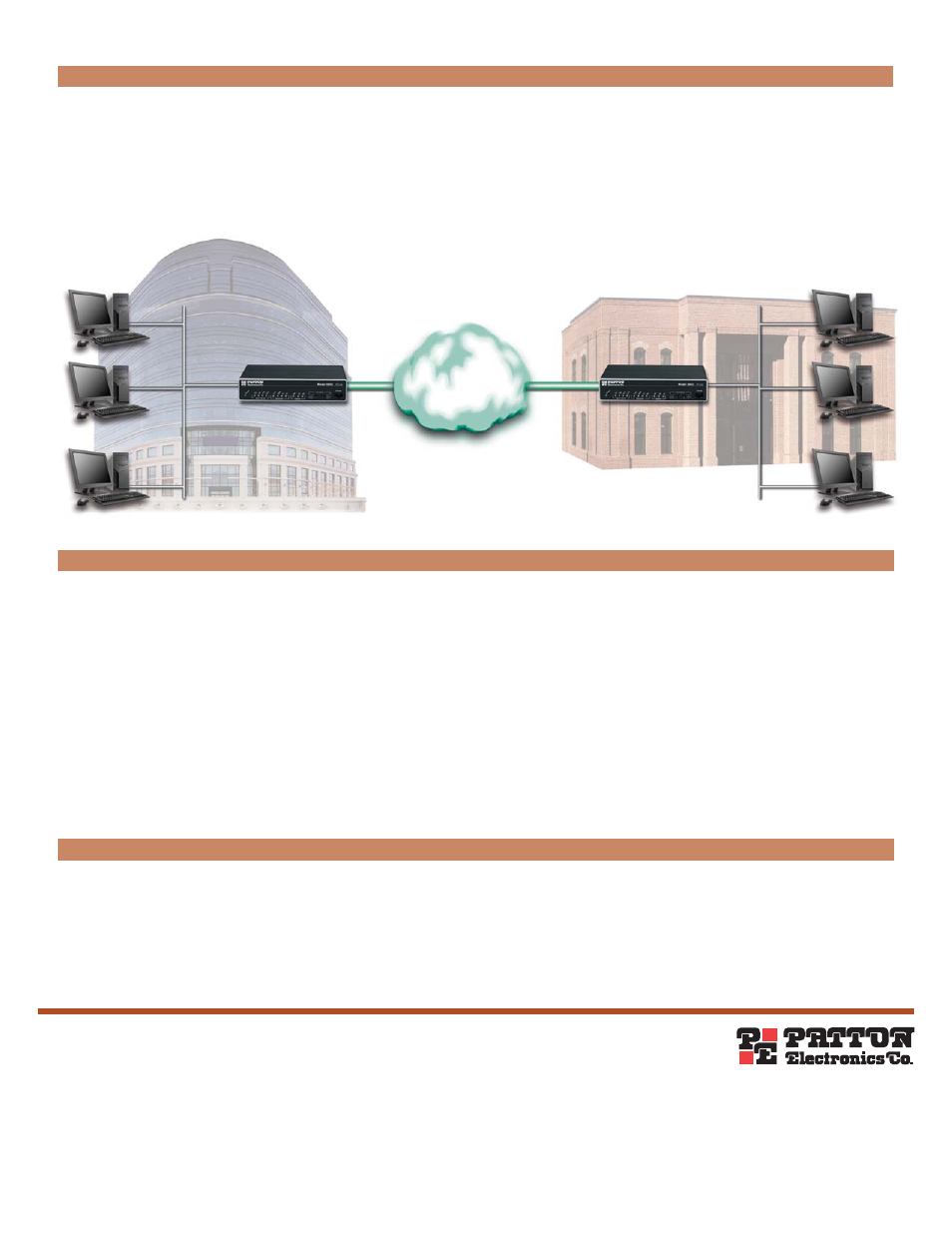

Model 2603
T1/E1 T1/E1
Headquarters
IP/FR
Model 2603
Branch Office
2603/T/UI: IPLink T1/E1
Gateway Router; RJ48C
120 Ohm E1/T1 interface;
single 10/100 Ethernet
Interface; IP Access
Feature Set, Internal
90–260 VAC power supply 2603/T/EUI: IPLink T1/E1
Gateway Router; RJ48C
120 Ohm E1/T1 interface;
single 10/100 Ethernet
Interface; IP Access
Feature Set, External
90–260 VAC power supply 2603/T/48: IPLink T1/E1
Gateway Router; RJ48C
120 Ohm E1/T1 interface;
single 10/100 Ethernet
Interface; IP Access
Feature Set, Internal -48
VDC power supply 2603/K/UI: IPLink T1/E1
Gateway Router; RJ48C
120 Ohm E1/T1 interface
and BNC 75 Ohm; single
10/100 Ethernet Interface;
IP Access Feature Set,
Internal 90–260 VAC
power supply 2603/K/EUI: IPLink T1/E1
Gateway Router; RJ48C
120 Ohm E1/T1 interface
and BNC 75 Ohm; single
10/100 Ethernet Interface;
IP Access Feature Set,
External 90–260 VAC
power supply 2603/K/48: IPLink T1/E1
Gateway Router; RJ48C
120 Ohm E1/T1 interface
and BNC 75 Ohm; single
10/100 Ethernet
Interface; IP Access
Feature Set, Internal -48
VDC power supply
